HELP WITH PARTS FOR WINDOWS

A home owner from FORT BRANCH IN says:
July 29, 2022
PIVOT BAR IS 2 1/2 INCHES LONG, WINDOW WEIGHT IS 3 LBS, SPRING HOUSING HAS THE LETTERS A,B,C,D,E,F ON IT. WE THOUGHT PART CODES FOR THE WINDOW IS 26-030 FOR PIVOT BAR AND 15-177 FOR THE COIL BALANCE SHOE. WE NEED HELP WITH THESE PARTS TO SEE WHAT SPRING MATCHES AND TO MAKE SURE ALL PARTS ARE CORRECT. CAN YOU PLEASE HELP US GET THE CORRECT PARTS FOR THESE WINDOWS
Thumbnail of the uploaded file named 20220727_090449.jpg
Thumbnail of the uploaded file named 20220729_093555.jpg
Thumbnail of the uploaded file named 20220729_105024.jpg

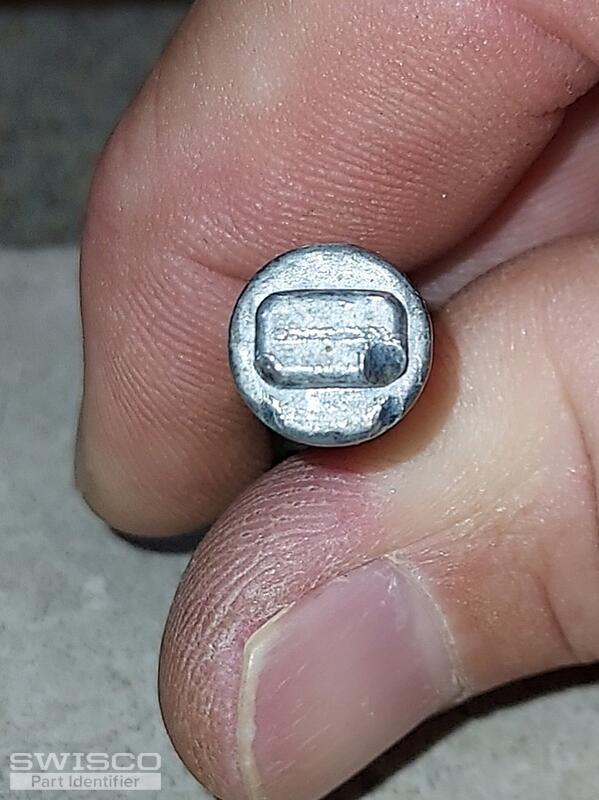

Thumbnail of the uploaded file named 20220729_105230.jpg
Profile picture of Emily
Emily from SWISCO responded:
August 3, 2022

Hi there!

I agree with your assessment. Your hardware indeed looks like a good match for our 26-030 pivot bar and 15-177 pivot shoe which uses the Series 152 coil springs. If you need new coil housing, see our 15-143, 15-144 and 15-145.
Coil Balance Shoe, Slate Blue
Coil Balance Shoe, Slate Blue
15-177
$3.47
PivotTrue Pivot Bar
PivotTrue Pivot Bar
26-030
$1.92
Coil Bushing
Coil Bushing
15-143
$0.97
Coil Bushing Cap
Coil Bushing Cap
15-144
$0.70
Coil Support Barrel
Coil Support Barrel
15-145
$0.49
