Hello

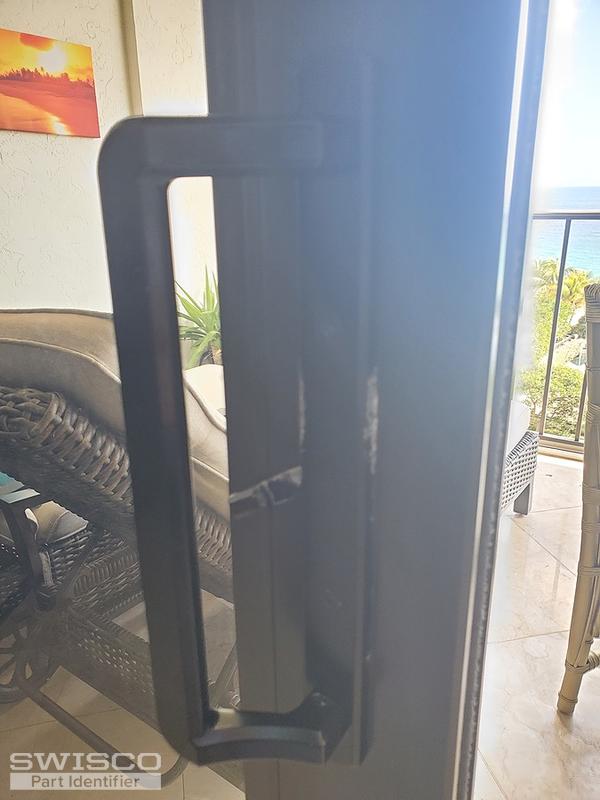

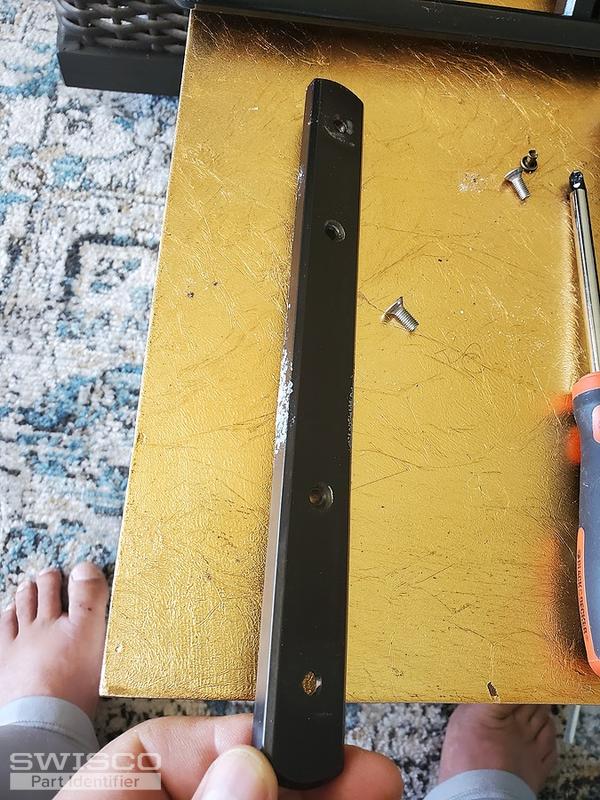

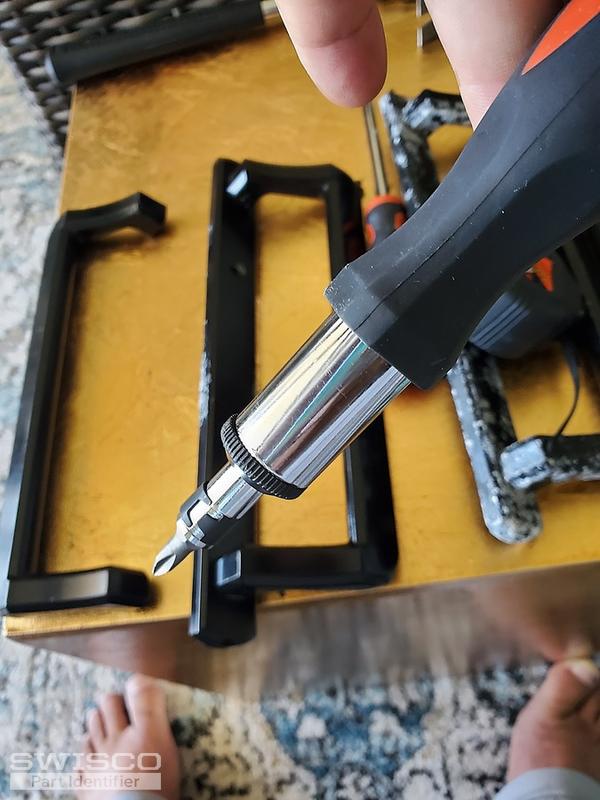

Please kindly help me finding this base piece for my sliding door. Is the one markes with the tip of the screw driver. Size is length 10" distance between holes center holes 10.01 cmts or 3 15/16" distance between uppwr and lower scree holes 8" ..has to be black in color.
.
THANK YOU VERY VERY MUCH
We don't have a handle set exactly like this, but if the hole spacing is 3-15/16" you might be able to use our 82-030 as a replacement. It depends on whether this door used an internal mortise lock. Show us to confirm. Unfortunately none of these style handle sets come with just the base, so you'd have to replace the whole thing. Apologies for any inconvenience.
Can you show me pictures of the mortise locks and two different setups? I'm having trouble visualizing it. Depending on what you have I'll try and narrow this down further. Thanks.

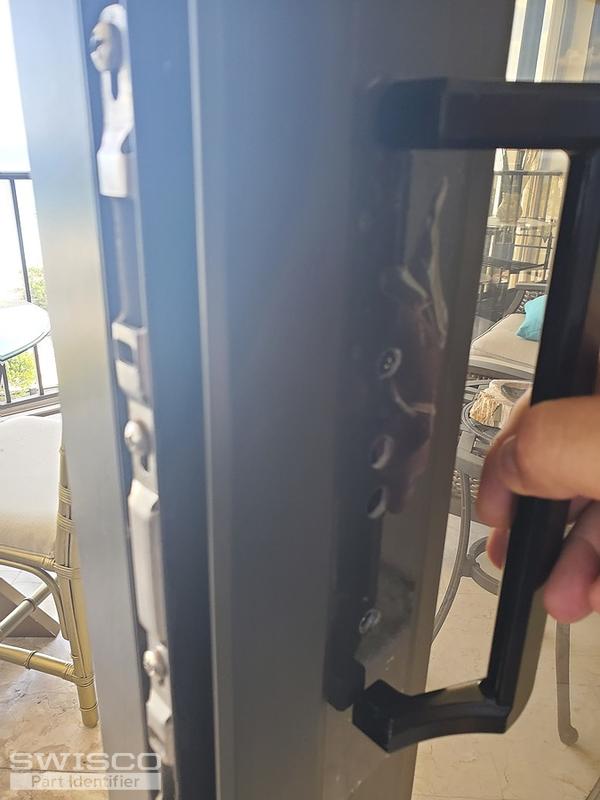

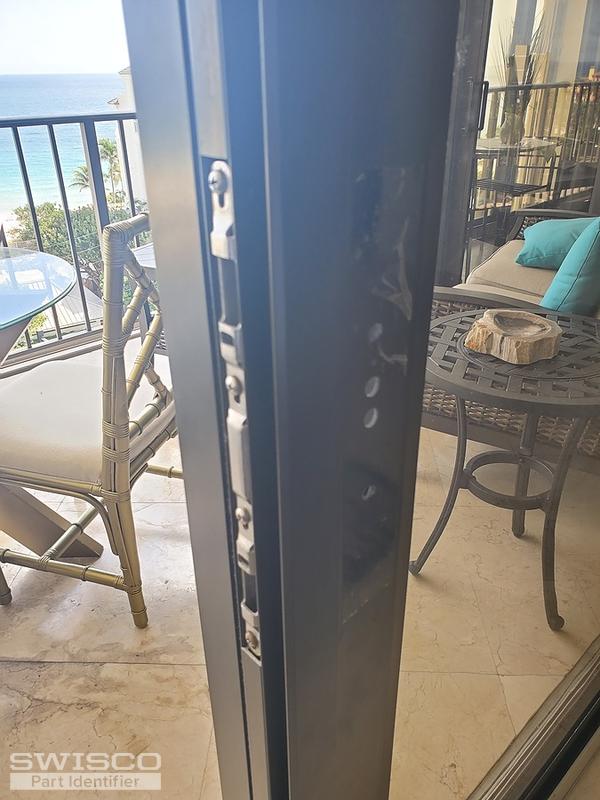

Thanks for getting back to me. This is indeed a weird setup. The mortise lock looks like our 82-265; compare the dimensions to confirm. In that case, I do think you can use the 82-030 as new handle to go with it; you could really use any of our handle sets with 3-15/16" hole spacing though, such as our 82-079.

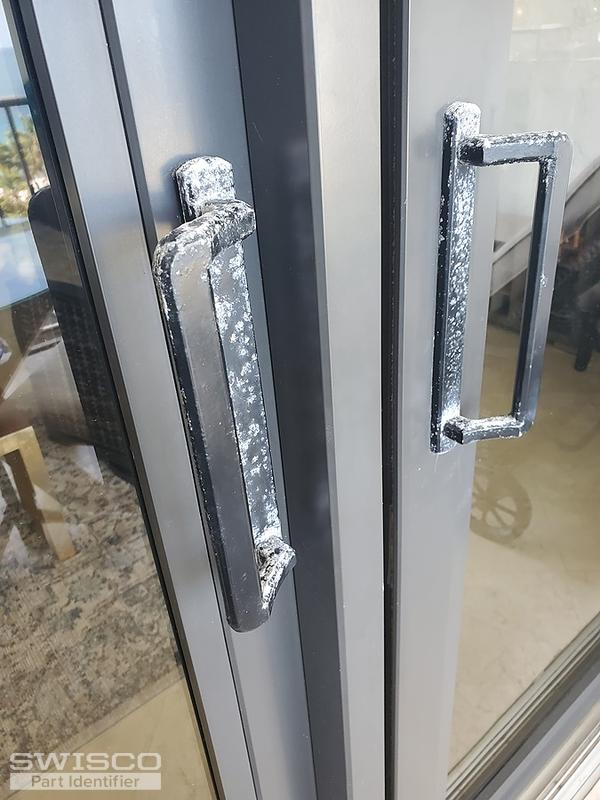

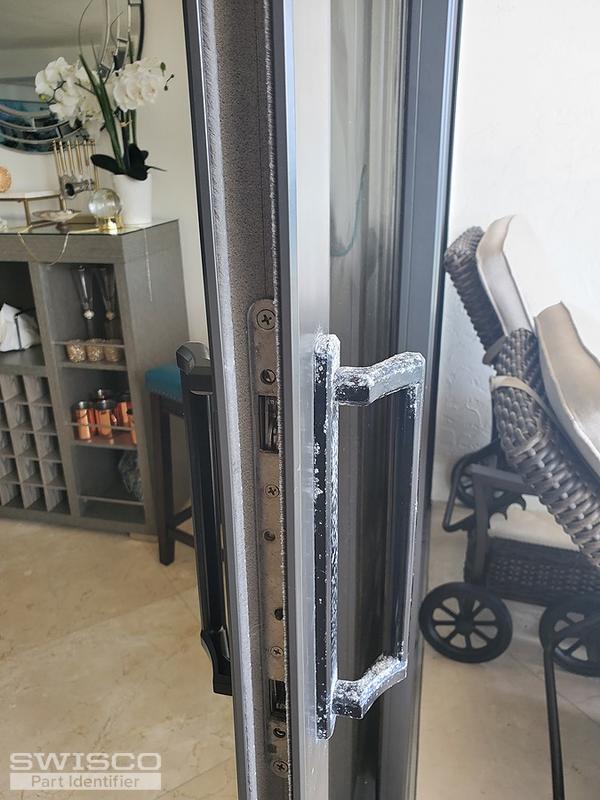

On the other door is an 82-249 Keeper (which is compatible with the new mortise lock) as well as a "dummy" handle set. I am afraid we don't sell dummy handle sets, so your only choice would be to see if you could adapt the 82-030 or 82-079 to the door anyways, though you'd need to discard the thumb lever. Take a look and see what you think.
