Handle or Latch Replacement Help

A home owner from USA says:

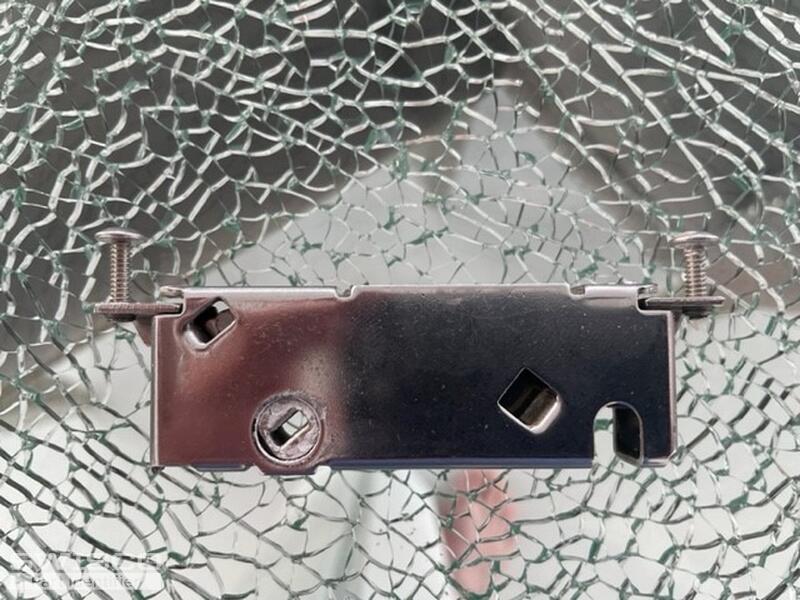

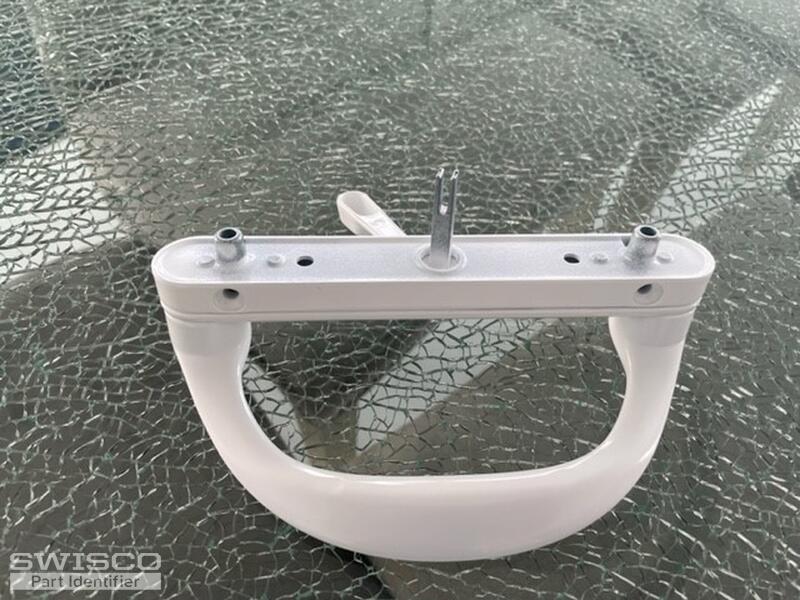

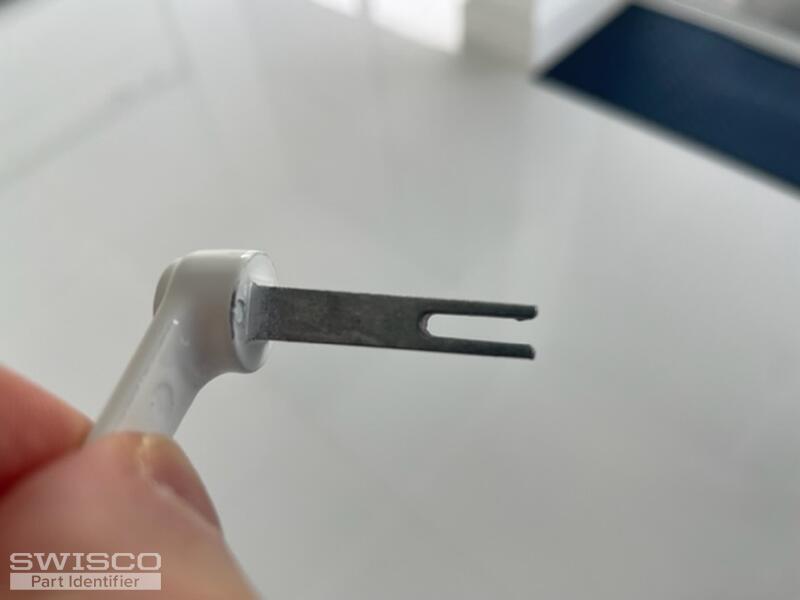

Looking for a thumb lever / latch that will fit into the pictures mortise.

The 82-240 latch will not fit into the mortise that I have. I need the latch that is similar to the one in the 82-030 handle.
Thumbnail of the uploaded file named image.png
Thumbnail of the uploaded file named image.png
Thumbnail of the uploaded file named image.png
Profile picture of Tom
Tom from SWISCO responded:

Your old handle set is a match for our 82-080 . This is designed to be compatible with only a handful of different mortises: either the 82-238 , 82-268B , or 82-269 . Without seeing your original, however, I cannot verify which is best for the job. Would it be possible to see what you have now?

A home owner from Washington says:

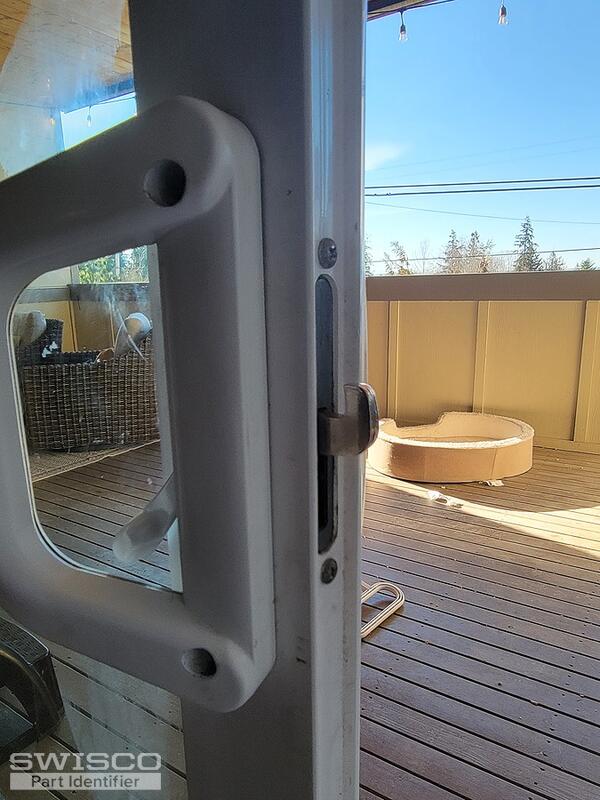

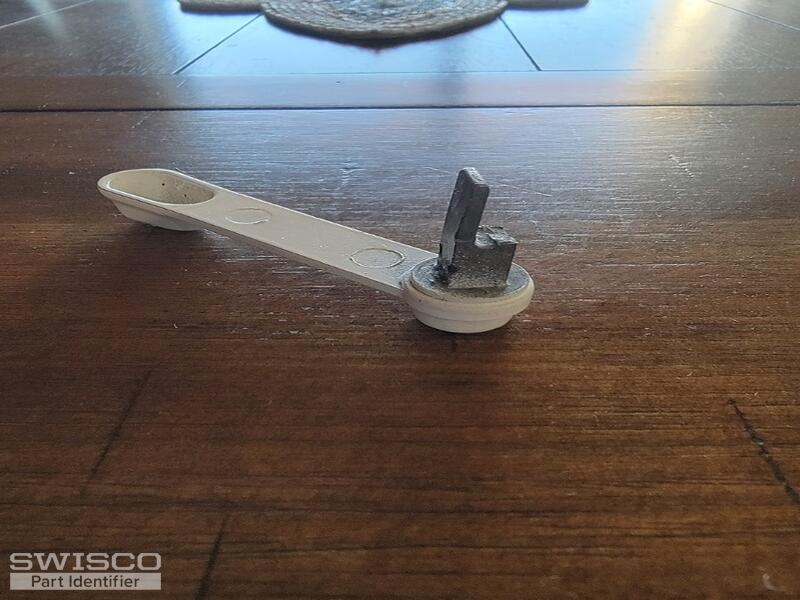

I am looking for a latch for my sliding door. As you can see the old latch broke. I tried to order a new latch off Amazon but it was too long.

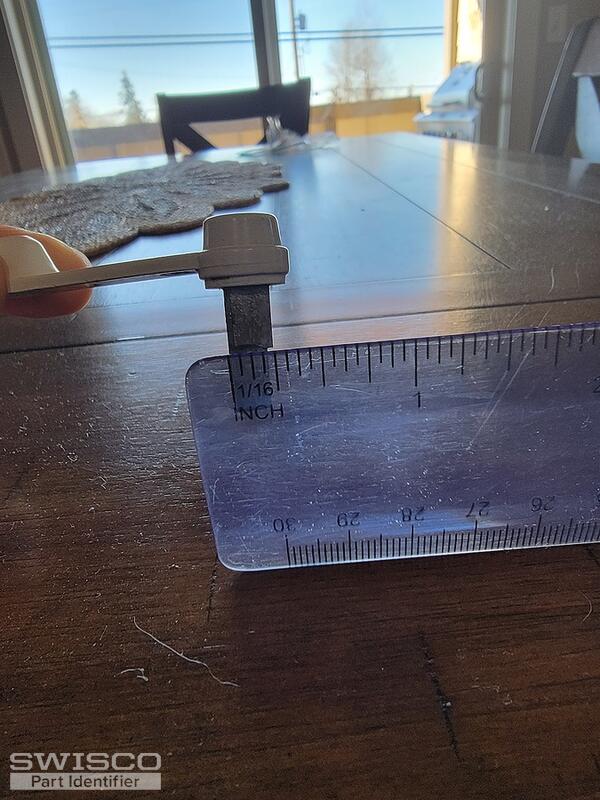

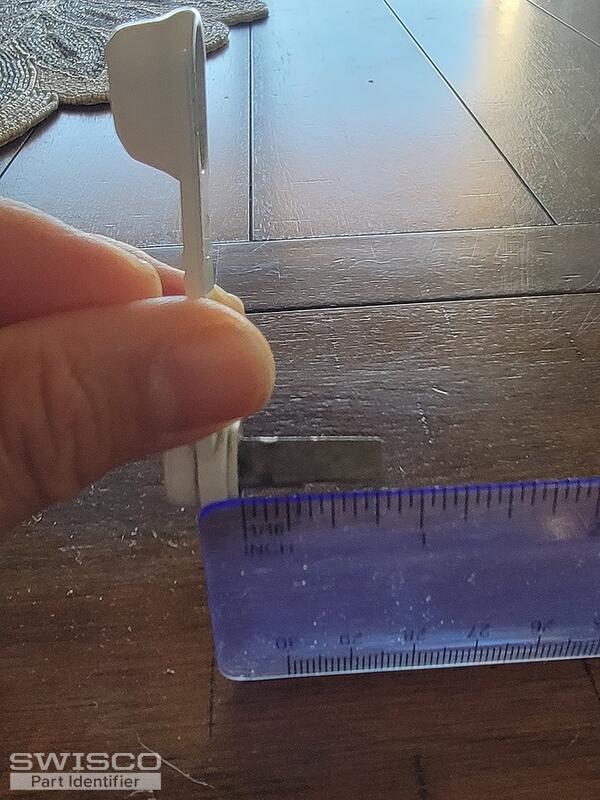

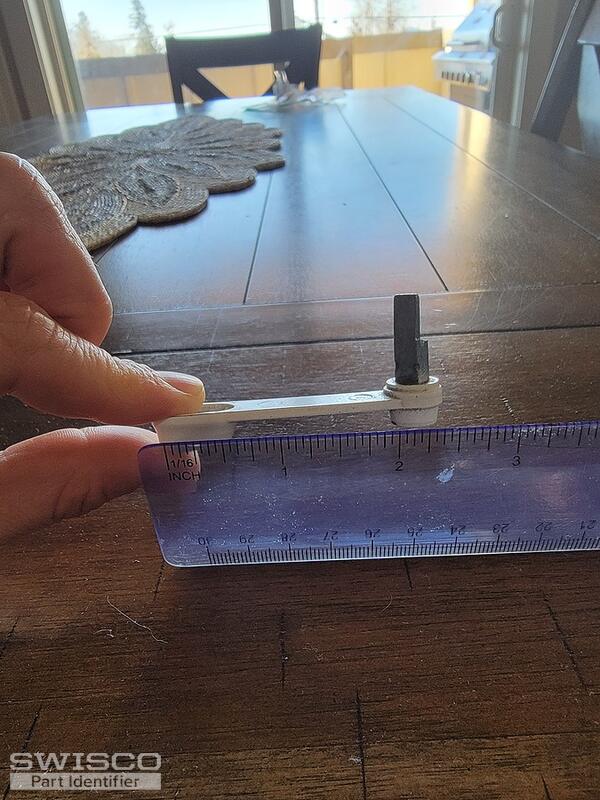

I tired to show the measurements in the pictures.

Thumbnail of the uploaded file named 16750275680857897471775200652376.jpg
Thumbnail of the uploaded file named 16750275219851894996971358069635.jpg
Thumbnail of the uploaded file named 16750274817278416238141490329048.jpg
Thumbnail of the uploaded file named 16750274412235023305801128623729.jpg
Thumbnail of the uploaded file named 16750273011638952470472350174784.jpg
Profile picture of Tom
Tom from SWISCO responded:

We unfortunately don't sell a version of the 82-240 with a stem as short as what you show here. 1-3/16" is currently the only size we're able to supply.

I am very sorry for the inconvenience.
