Handle and Mortise Lock : SWISCO.com

Quick Learner from USA

Jul 31, 2023 8:39 am

I ordered 82-086 - Legacy Keyed Handle Set, 3-15/16 82-265 - Multi-Point Mortise Lock with Face Plate, 11 82-249 - Sliding Glass Door Multi-Point Keeper and these items did not work as replacements. What should I order?

5 user uploaded images

4 Replies

Casey from SWISCO

Jul 31, 2023 3:49 pm

Hello,

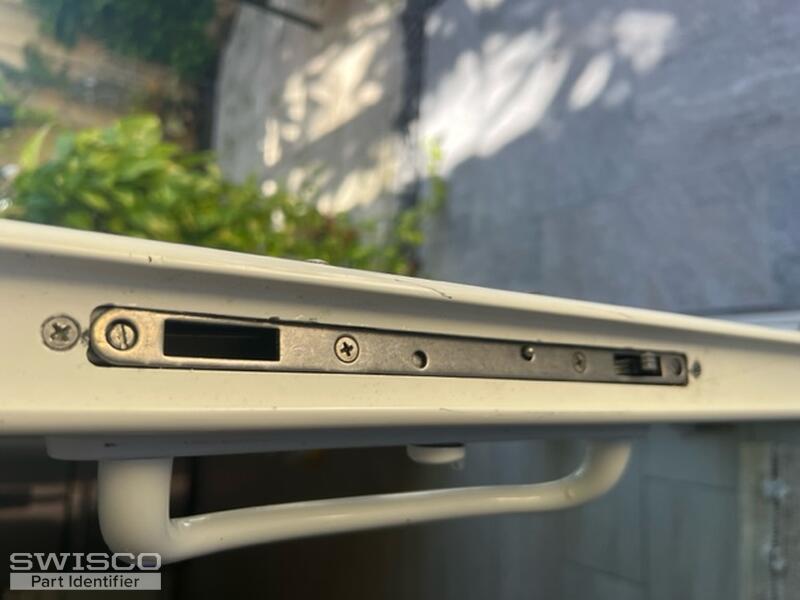

Your mortise lock resembles the 82-239, which is the same as the 82-265 that you purchased but without the faceplate.

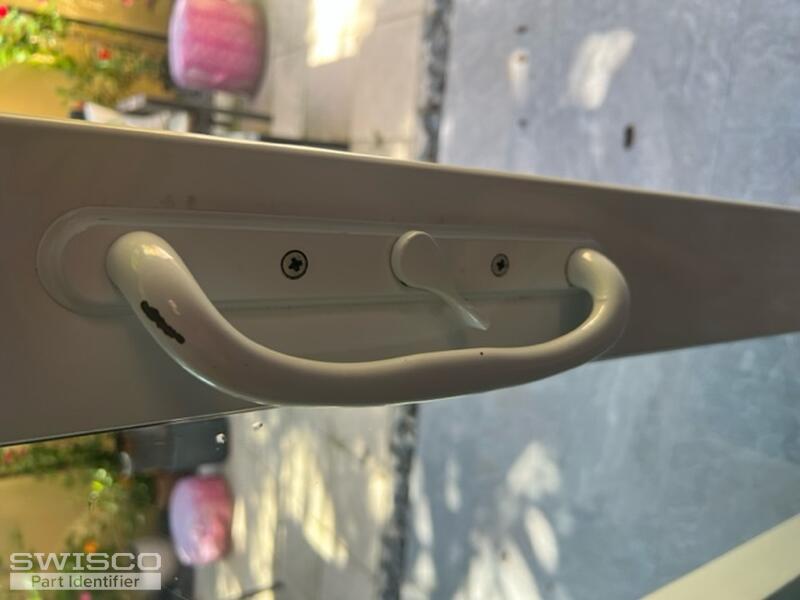

As for the handle set, it looks like you may have a centered thumb latch on the inside handle. If so, take a look at the 82-030A with the same 3-15/16" hole spacing as the 82-086 that you purchased, but with a centered thumb latch. Thank you!

Quick Learner from USA

Aug 1, 2023 8:55 pm

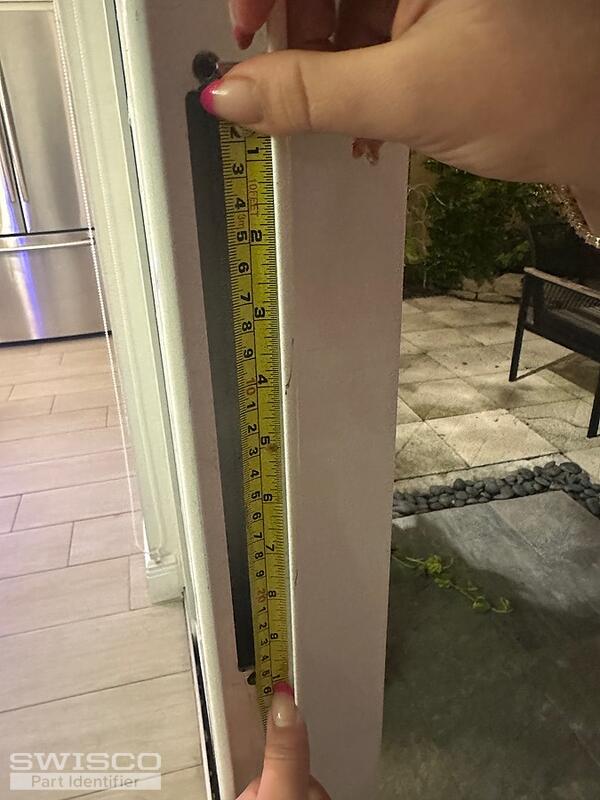

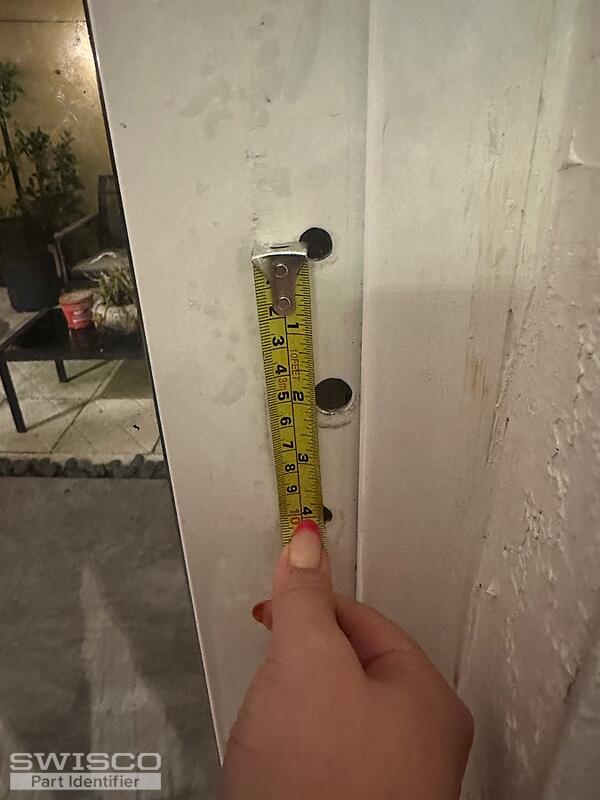

Adding an additional photo for the handle to make sure the one you sent is correct

2 user uploaded images

Casey from SWISCO

Aug 2, 2023 8:23 am

Unfortunately, we are not able to make out your exact dimensions from photos but they do look close to ours. Ultimately, you'll need to be sure that the measurements below match up to yours.

Alternate image for 82-239

Dimensions for 82-030A
