Hello,

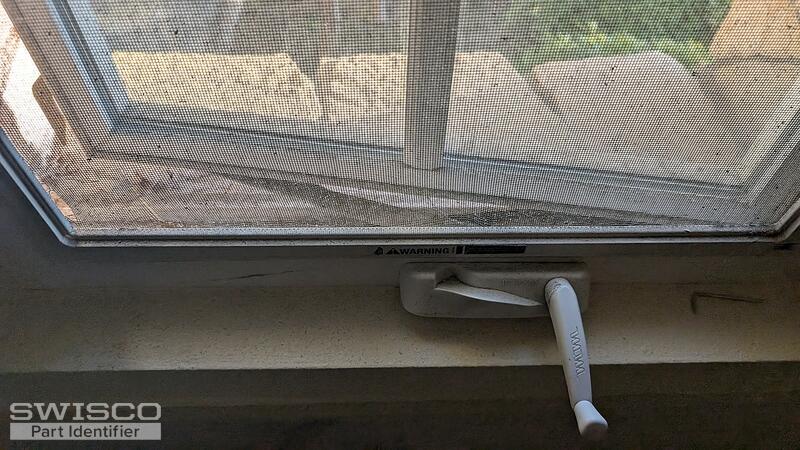

Thanks for reaching out to us! I'm happy to make a replacement recommendation for the operators you have here. Although, in addition to the photos of the operators, I'll need to see clear photos of the entire mechanism to determine the correct replacements. Please provide photos of the arm(s) of the operators detached from the bottom of the swinging window sash.

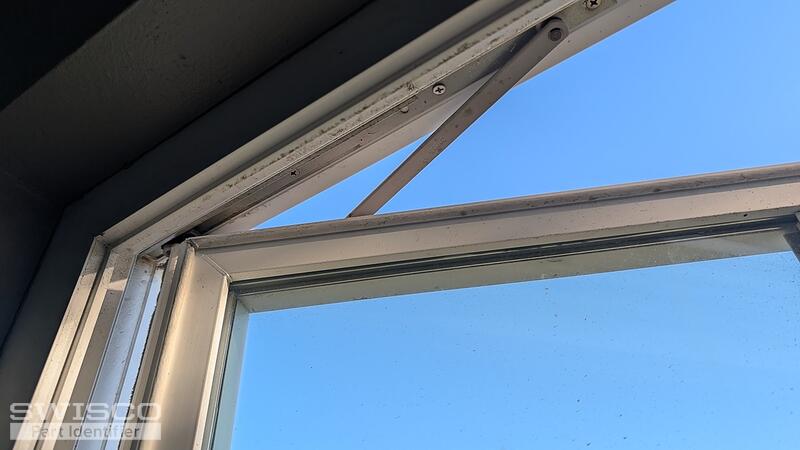

The window hinges can likely be replaced with the 36-048 10" and 36-049 14" 2-Bar Hinge Sets. These sets can be used for right and left handed applications.
It is encouraged to replace both the top and bottom hinges to ensure they will be a match.

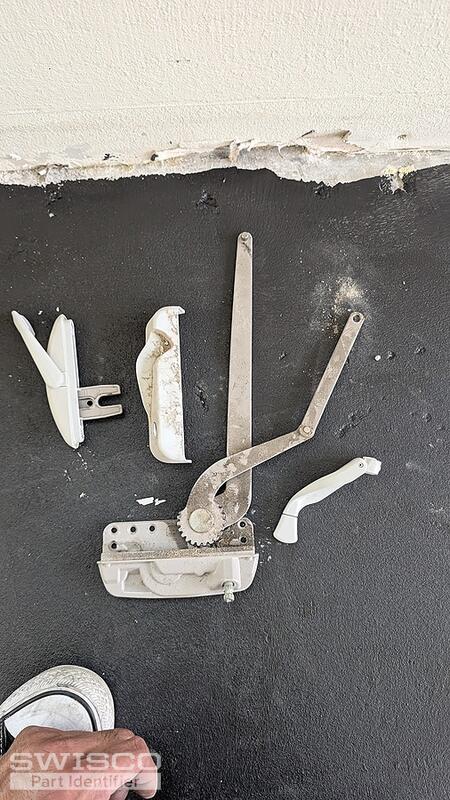

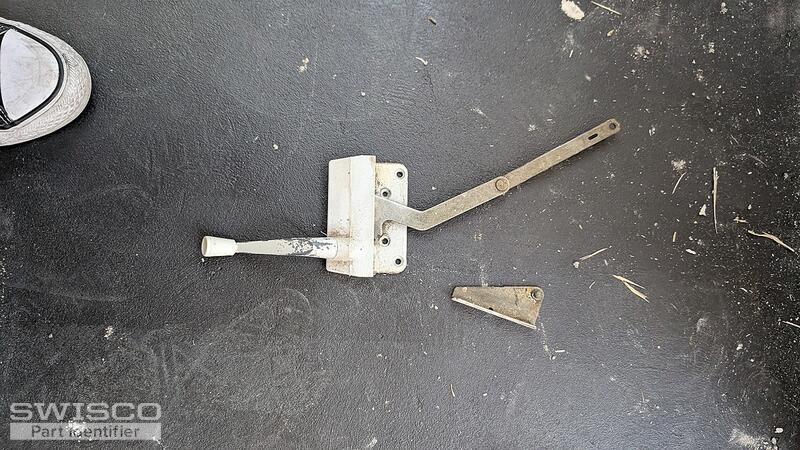

Thanks for the photos. The dual arm operator can be replaced with the 39-253LB Encore Dual Arm Operator. You'll likely need the 39-253RB to replace the operator in the second photo since it appears the straight arm has broken off of its base.

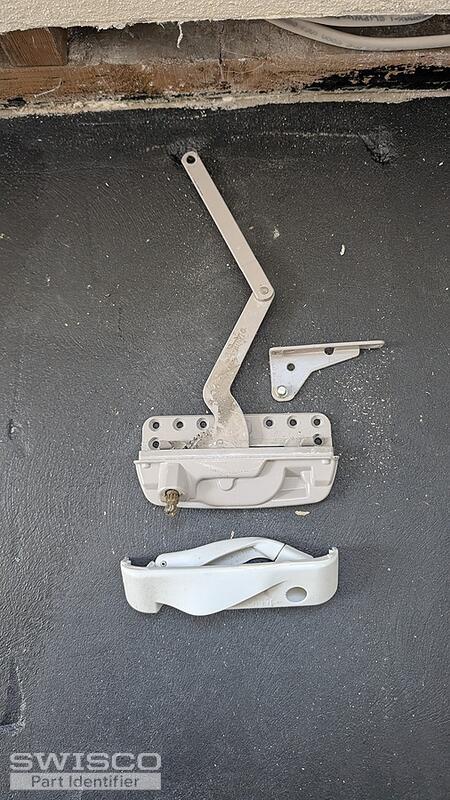

The operator with the box style base reminds me of the 39-318 Truth Split-Arm Operator; the opposite handed version is the 39-317. To confirm that this is the correct replacement, you'll need the carefully compare the dimensions on the website, especially for the link arm.
For the window locks with the more oblong shape, compare the 38-095 and the 38-096 to see which of these is the correct fit. You'll need to be sure to compare all of the dimensions, especially for the "forks". The more square shaped lock, reminds of the 38-097 LH and 38-098 RH Entry Gard Sash Locks.
You'll find each of their dimensions on their respective catalog pages on the website. The compatible hardware and accessories can be found in the related products for each of these operators.
