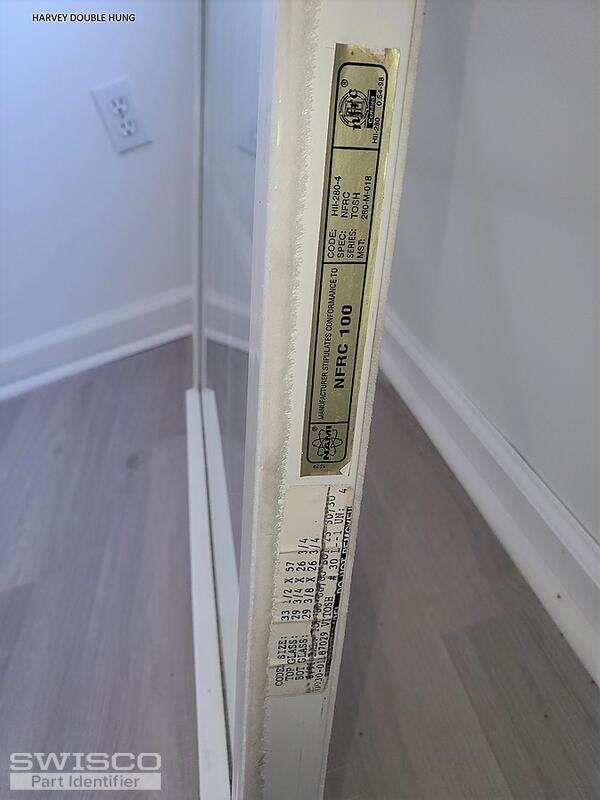

Harvey double hung windows

Quick Learner from Connecticut

Apr 20, 2023 4:10 pm

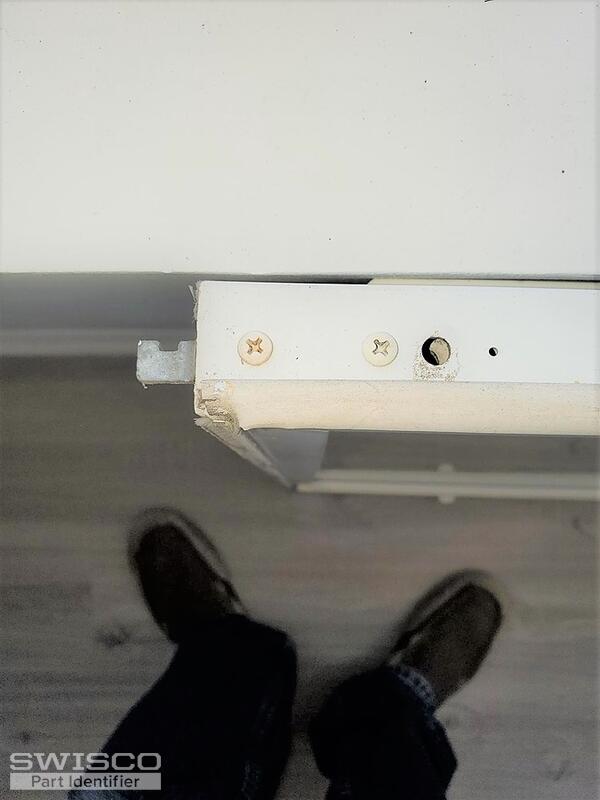

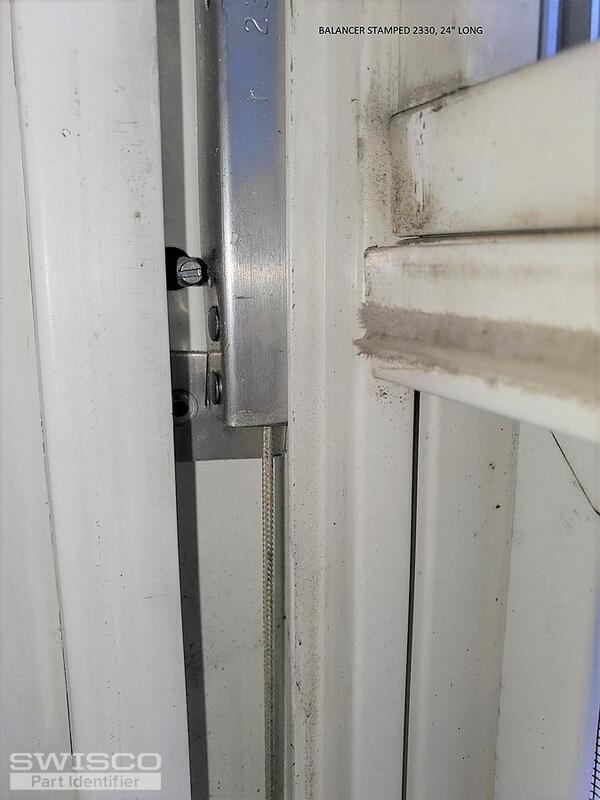

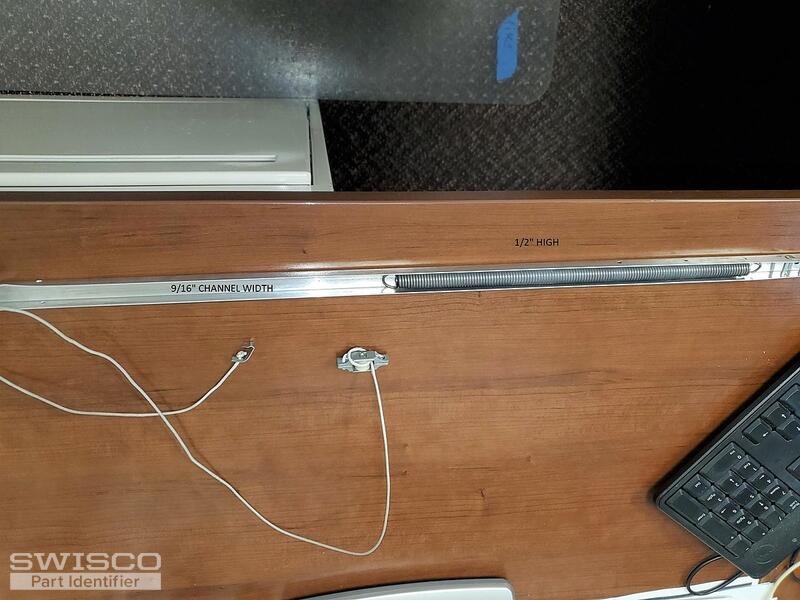

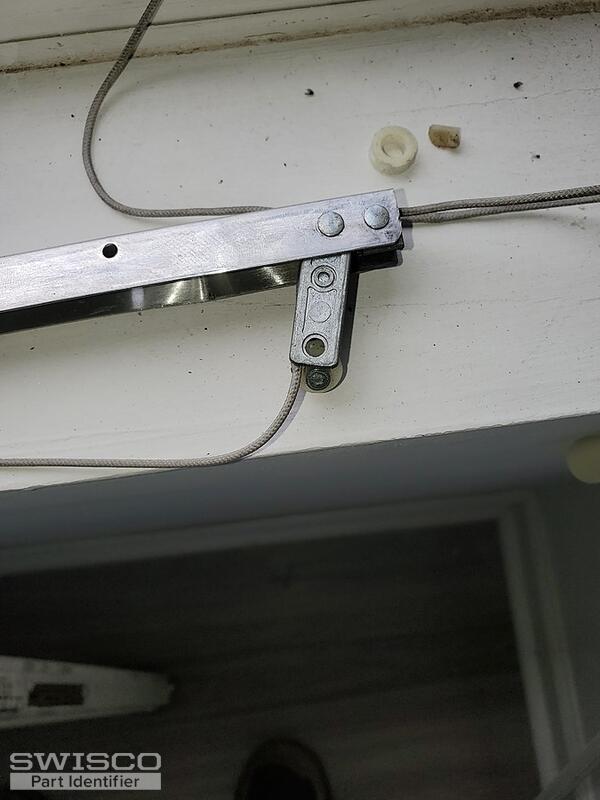

Needing 2 (left and right) balancers, and 2 (left and right) sash pivots.

Removed what I thought was the sash pivot screw and cannot remove the pivot.

The pivot shoe seems wider than the channel?

Appreciate any help in advance!! Mike

5 user uploaded images

6 Replies

Emily from SWISCO

Apr 21, 2023 9:57 am

Hi there, Mike!

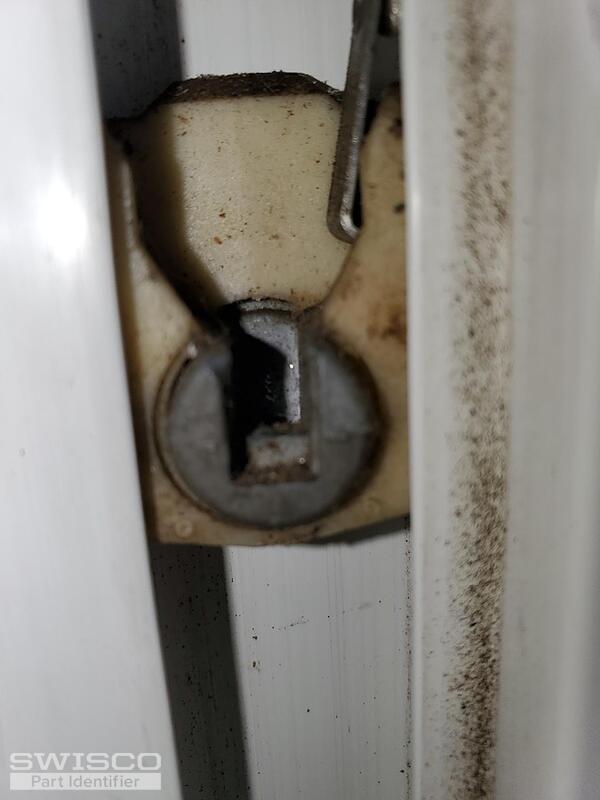

We appreciate you reaching out to us. I can't ID what balance you may have from these photos, unfortunately. Can you show me a photo of the attachment that your balance hook engages with? That should help steer us in the right direction.

Quick Learner from Connecticut

Apr 21, 2023 10:31 am

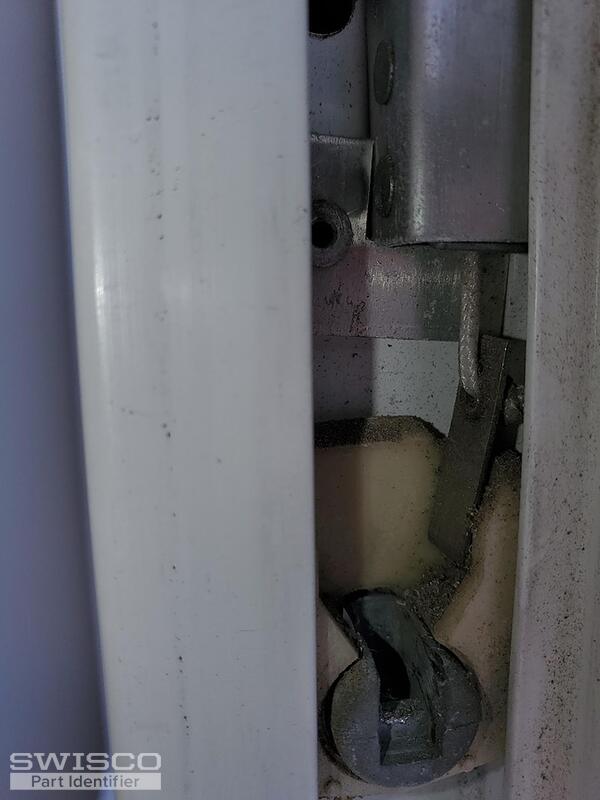

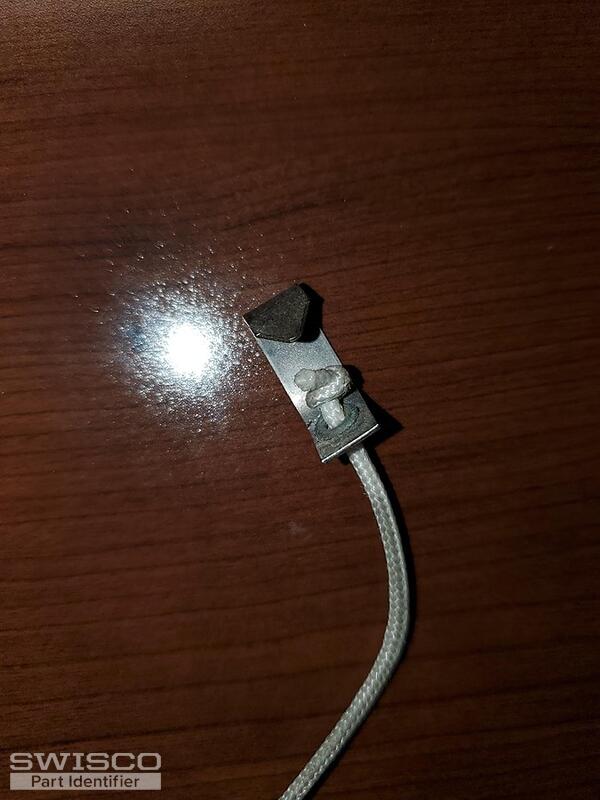

The track looks to be about 1" wide and the hook is 1/4".

2 user uploaded images

Quick Learner from Connecticut

Apr 21, 2023 1:20 pm

Probably a silly question, but can I replace the spring balancer with a spiral type? then all I need is a screw at the top to fasten (no concerns about matching the top end piece). Then I would think that I can just buy a shoe made for the spiral balancer and that fits my jamb dimensions?

Quick Learner from Connecticut

Apr 21, 2023 2:20 pm

Shoe track is 1-1/4" wide X 5/8" deep.

1 user uploaded image

Emily from SWISCO

Apr 21, 2023 3:59 pm

Thank you for getting back to me! This is just what I needed. I recognize this balance and we can help supply replacements for it though it will have to be a custom order due to the configuration. What we'll use is the Series 770 but with the terminal clip swapped out for the 62-105 hook so that it connects with a pivot shoe like our 15-105 (sold separately).

I will just need a few more pieces of information so I can get this moving for you. Can you verify the length of the metal channel and the precise weight of the window sash? The Series 770 uses a different rating system so we will need to re-calibrate the appropriate spring strength.

I'm afraid you can't replace this balance with any other type of balance. We always recommend sticking with the original hardware that your window was designed to use.

As for the pivot bar, I can't be certain without seeing it removed but you can start by taking a look at the 26-416. Compare the specifications and see how they match up.
