Quick Learner from Connecticut
The parts are broken please let me know if you need more info

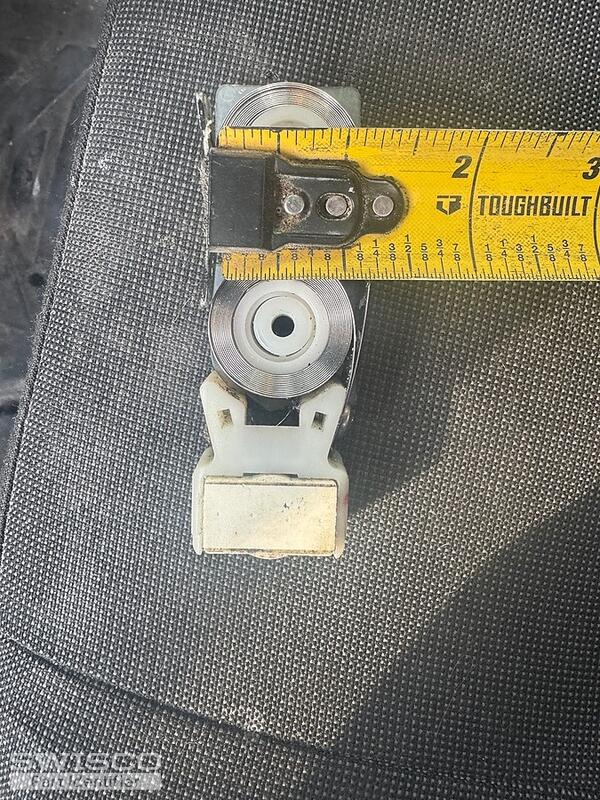

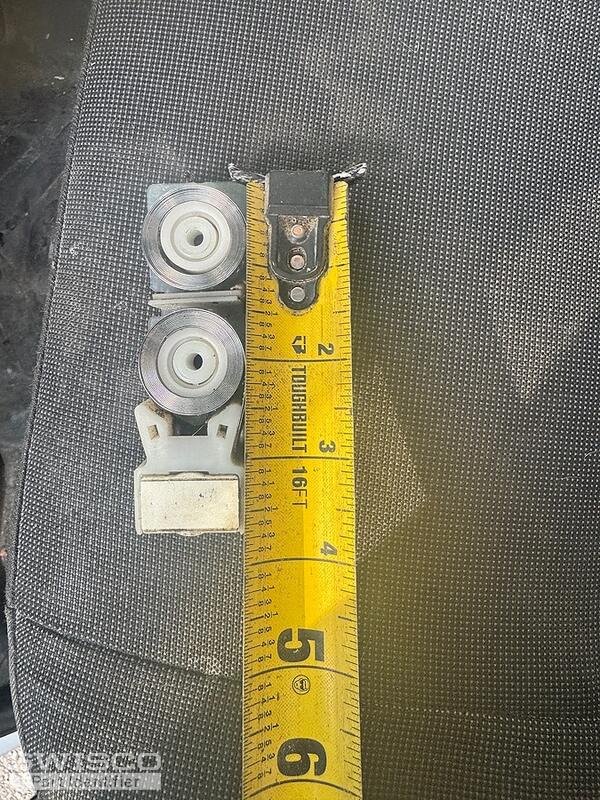

5 user uploaded images
2 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Your exact pivot shoe has been discontinued and is no longer available but the good news is that we do have a replacement that will work just as well.

We suggest using our 15-177 pivot shoe to replace the coil balance shoe you have. Take a look over the dimensions below to confirm that this is the right replacement for your existing coil balance shoe.

Alternate image for 15-177
Alternate image for 15-177

This shoe is compatible with the 1/2" Thick Series 152 Coil Balance. You'll need to look for any stamp/markings on the metal coils to determine the springs needed for the assembly.  If there aren't any, you'll need to obtain the exact weight of the sash and divide it by the total number of coils in the window.

These coils are secured to the shoe using the 33-072 screw. If you are looking to replace the covers, you'll need the 15-143 Coil Bushing, 15-144 Coil Bushing Cap, and the 15-145 Coil Support Barrel.

Your pivot bar reminds me of the 26-226 Pivot Bar. Be sure to compare the dimensions to confirm.

End view of the 26-226 pivot bar
End view of the 26-226 pivot bar
