Good Afternoon,
Could you please help identify which is the correct channel balance to purchase to replace the following item.
21 inch Channel Balance

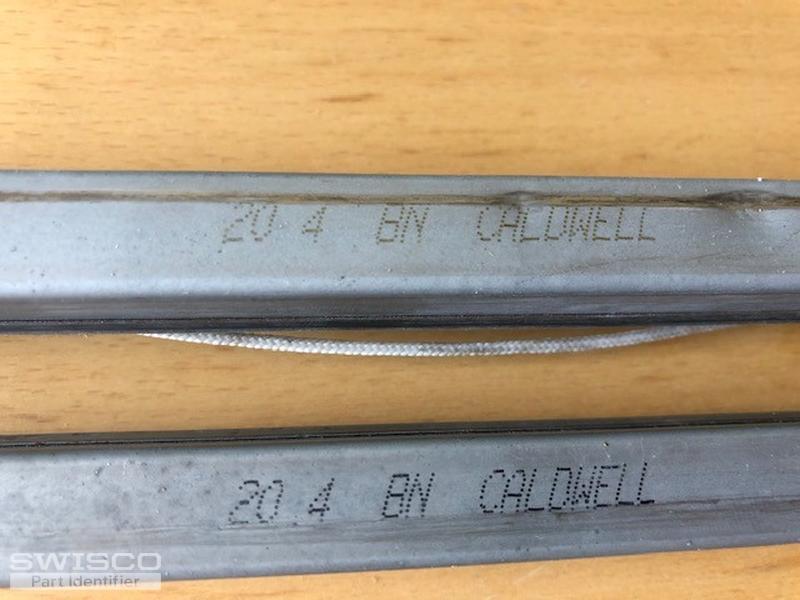

Stamped: 20 4 BN Caldwell

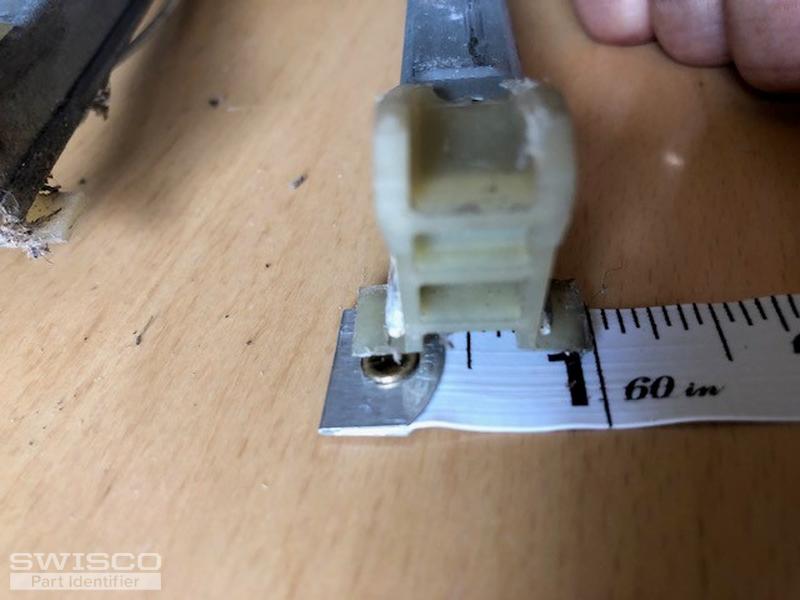

Based on the measurements and photos, it looks like the 380 or 385 should work. I am unsure about how to measure the top and the shoe. Please advise. Please see attached photos with measurements of each.
Thank you
Help Identifying 21" Channel, Top and Shoe
Quick Learner from Los Angeles
Jul 19, 2020 3:23 pm
5 user uploaded images
2 Replies
Casey from SWISCO
Jul 22, 2020 10:48 am
With this combination of attachments, you could have either an S380-21 or S385-21 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2040 spring strength options for your replacement balances.
Thank you and let us know if you have any other questions or concerns.
Comparison of the S378, S380 and S385 balance shoes.
