Help Identifying Old 1963 Roller

A handy person from FL says:

January 17, 2022

Door is from 1963. No identifying name. Wheel dia. 1.5" assembly overall width .760" no counting detents. Overall height 1.44" overall lenght 4.125. Please call me with any questions 808 896 3911. Need four assemblies or just wheels if you don't have tha assembly. Wheels are 1.5" o.d. .350 wide. The U groove is about .187 wide and the diameter at the bottom of the groove is 1.33. Thank you. Bill

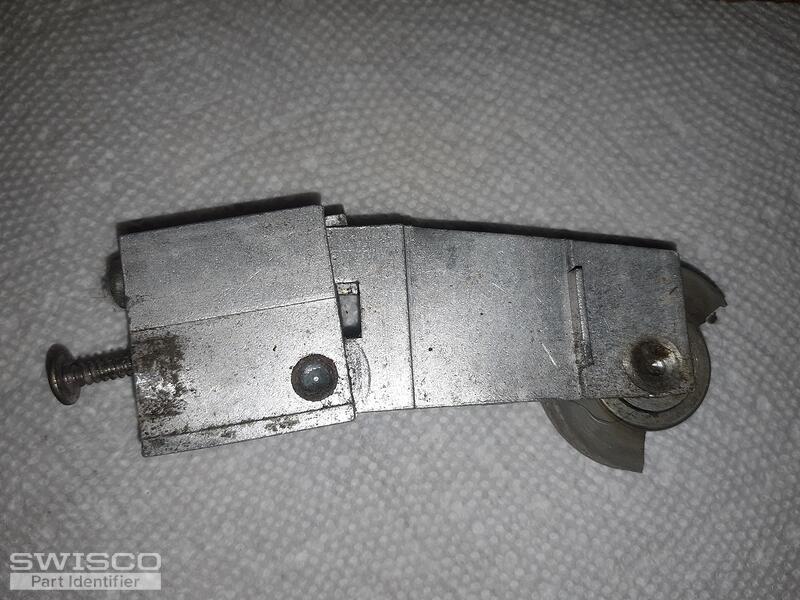

Thumbnail of the uploaded file named 20220117_095445.jpg

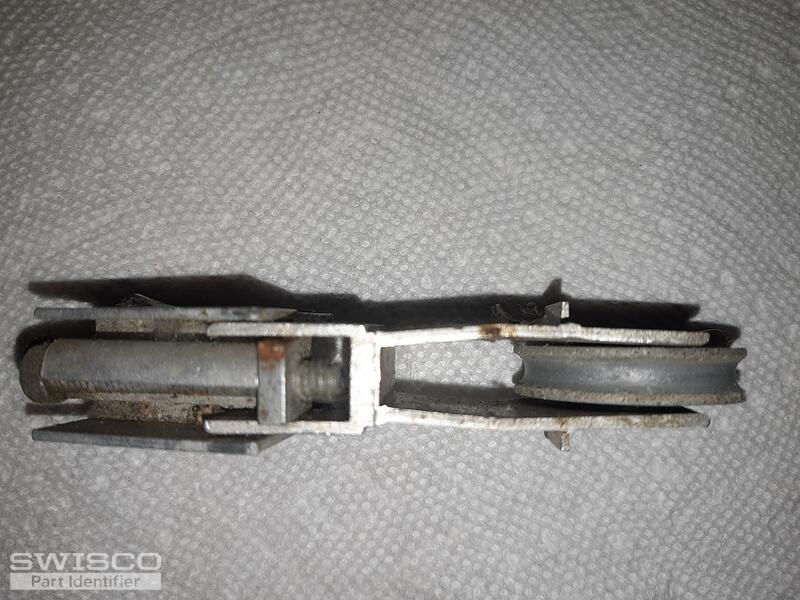

Thumbnail of the uploaded file named 20220117_095455.jpg

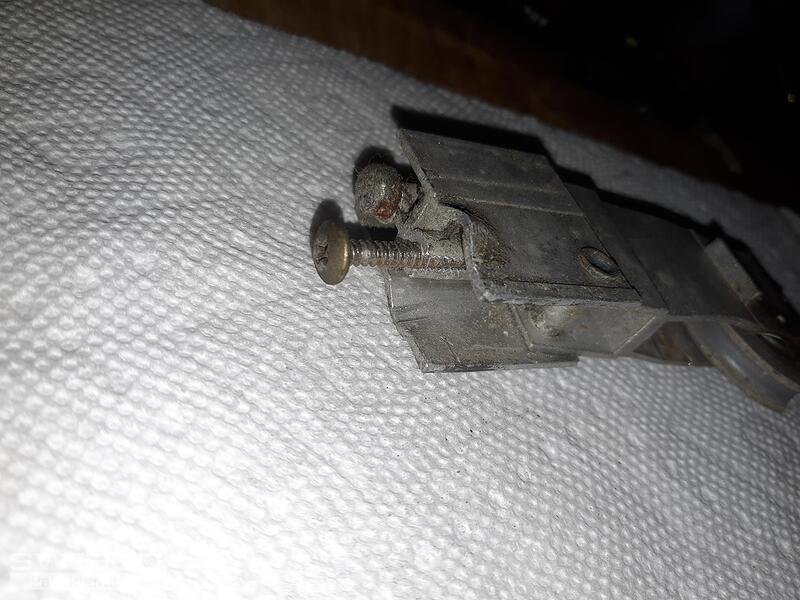

Thumbnail of the uploaded file named 20220117_095510.jpg

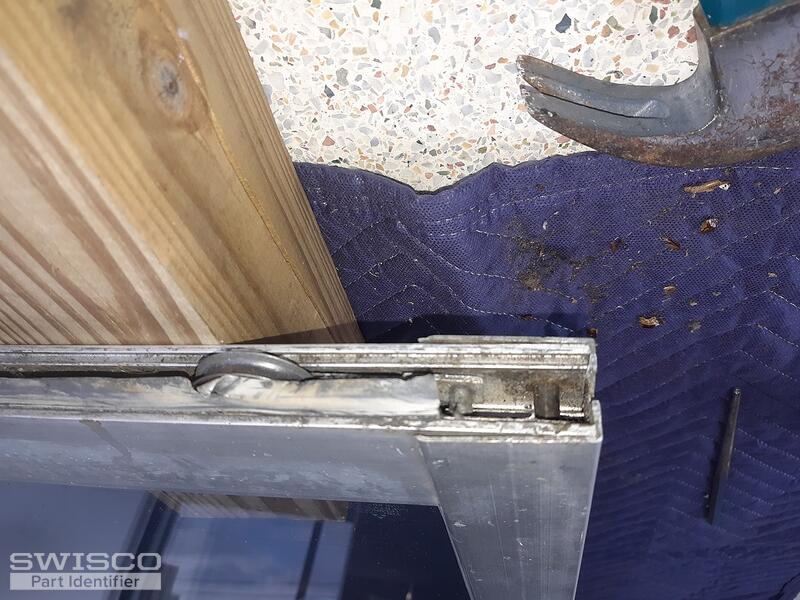

Thumbnail of the uploaded file named 20220117_095557.jpg

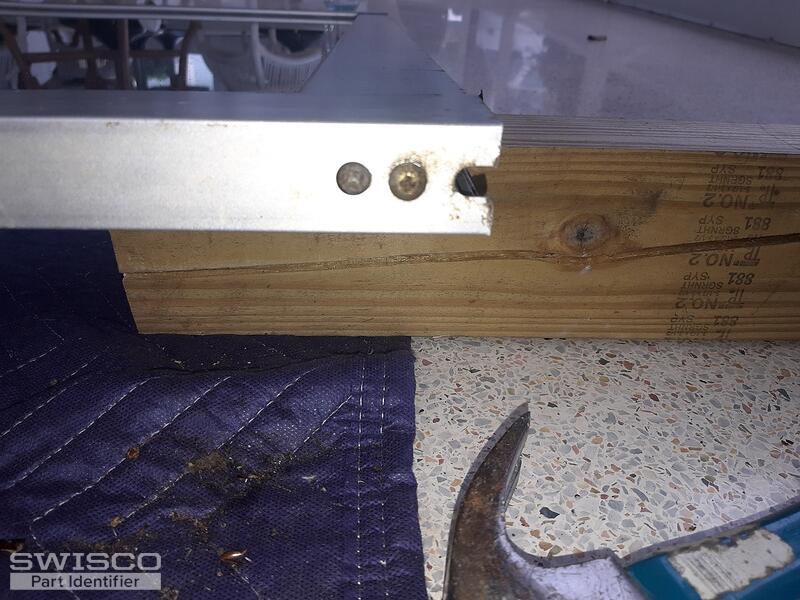

Thumbnail of the uploaded file named 20220117_095604.jpg

Dave Sr. from SWISCO responded:

January 20, 2022

Your roller looks like the one used in the older style WT patio doors. I have swapped out the wheel in the past using the 81-272 Roller and Axle Repair kit, as long as the housing was still in good shape. However we now carry the 81-020 steel roller that fits the old WT doors. Take a look at both suggestions on the web site to see it the 81-020 matches up to your roller in height and width. If not then the 81-272 should work for you, but check the 81-020 this looks like it could fit. See the videos on this page as well.

Sliding Door Roller, 1-1/2" Concave BB Wheel

81-020

$8.72

1-1/2" dia Roller And Axle Kit

81-272

$11.18
