Help Selecting Replacement Balance

Quick Learner from Tallahassee

Hello,

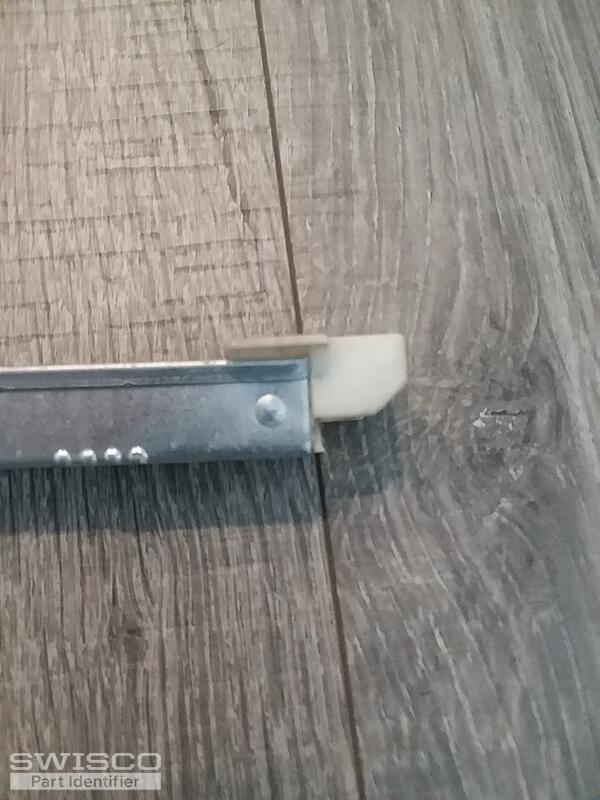

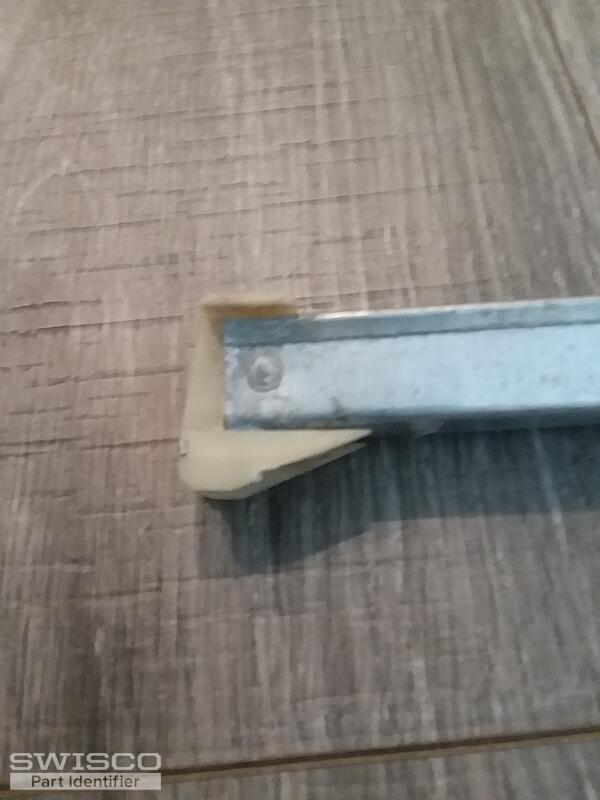

I have 14 year old windows made by Kinco. Single-hung, non-tilt, 1/2 inch channel width. I took out the window, and it weighs 28 pounds. The balancers have a block and tackle system that the string goes through. Channel balance is 35 inches long (metal part only - plastic ends not counted)... I have no idea which series of balances to look at on your website. Your system maxed out the number of pics I could send. Could you please help?

Thank you,

Dave

5 user uploaded images
2 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

With this combination of attachments, you could have either an S380-35 or S385-35 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 3440 spring strength options for your replacement balances to support a window sash between 23 and 30 lbs.

Thank you and let us know if you have any other questions or concerns.


Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
