Measurements:
28 and 15/16 inches long
9/16 inches wide
9/16 inches tall
The only markings on the channel are 28B USB
Thank you, and I really appreciate your customer service with the help and support with picking the right hardware.
Help choosing a channel balance replacement
Quick Learner from Port Charlotte
Apr 10, 2023 5:55 pm

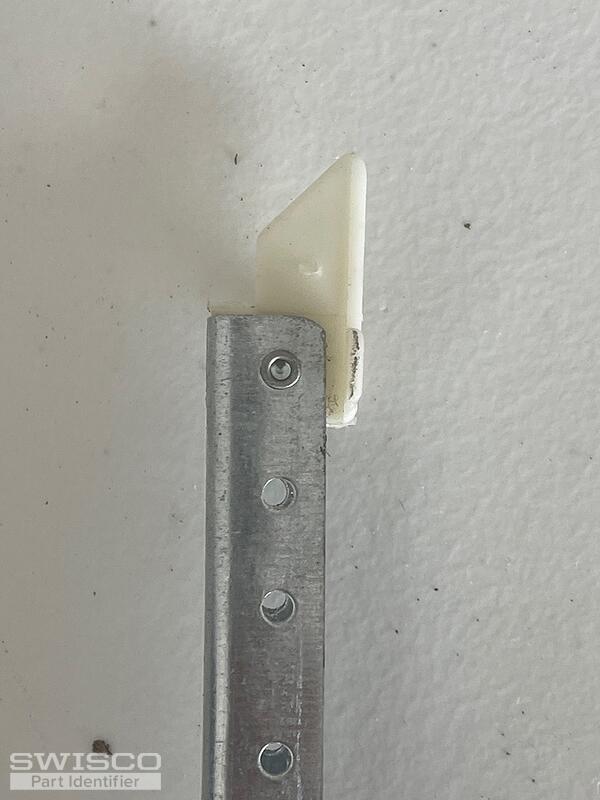

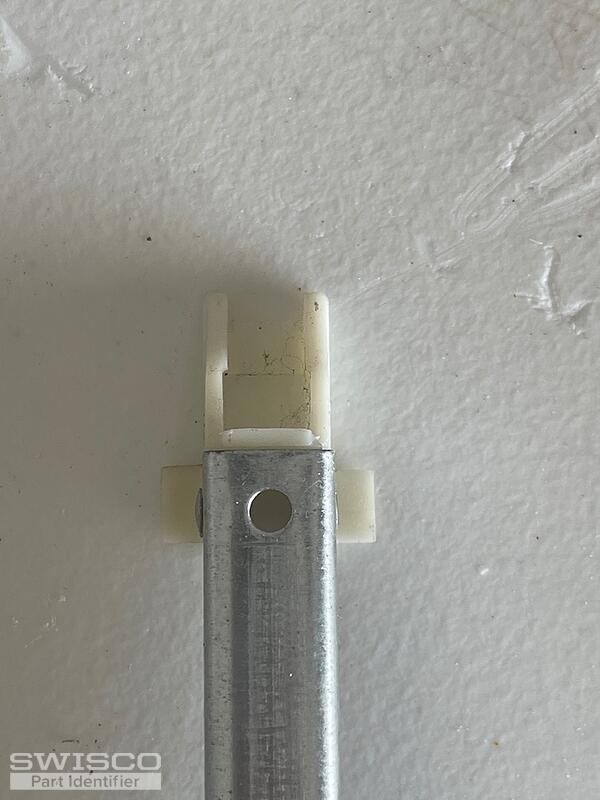

5 user uploaded images
2 Replies
Jasmine from SWISCO
Apr 11, 2023 2:44 pm
Thanks for reaching out! Your balances look like they could be either our S380-29 or the S385-29 channel balance with a 2820 stamp. To determine series you'll need, confirm the measurement for the depth of your bottom shoe. It should either be 1" or 1-3/32" as shown in the diagram below.
Comparison of the S378, S380 and S385 balance shoes.
