replacement 26 4 balances

Handy Person from Utah
Sep 15, 2024 1:51 pm

I need to replace both load balancers for a single hinge window.

The channel is 1/2" wide

image image image
3 user uploaded images
5 Replies
Casey
Casey from SWISCO
Sep 18, 2024 2:38 pm
SWISCO
EXPERT

Hello,

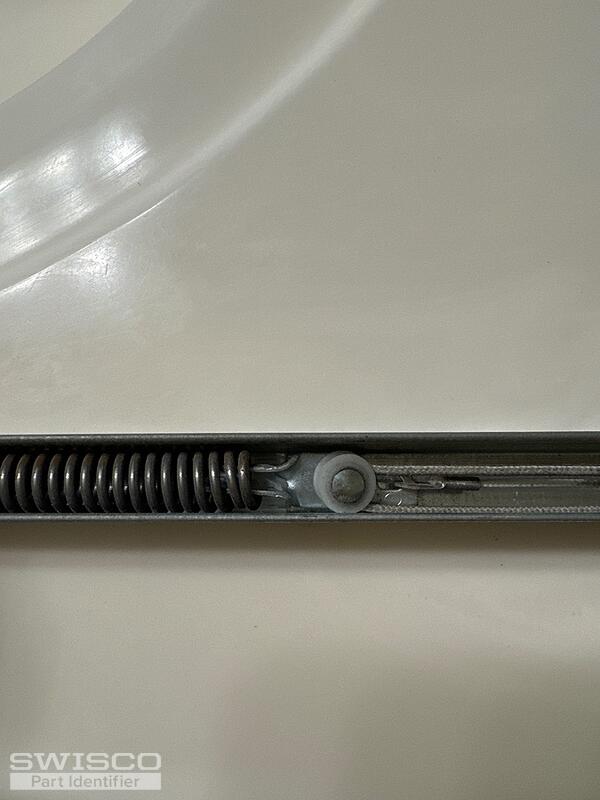

We'd be happy to look into this for you but we'll need a bit more information to narrow down your options. If you could show us the connecting point between the spring and pulley inside the metal channel, that would help us confirm if our stock balances could work for your repair or if they would need to be special ordered. We'll also need to see the bottom fitting attached to the opposite end of the metal channel. Thank you!

Handy Person from Utah
Sep 18, 2024 11:49 pm

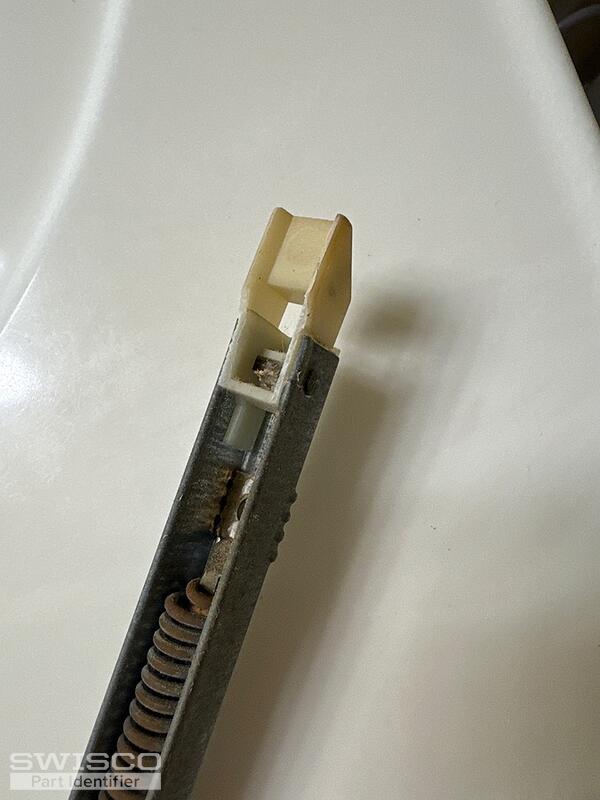

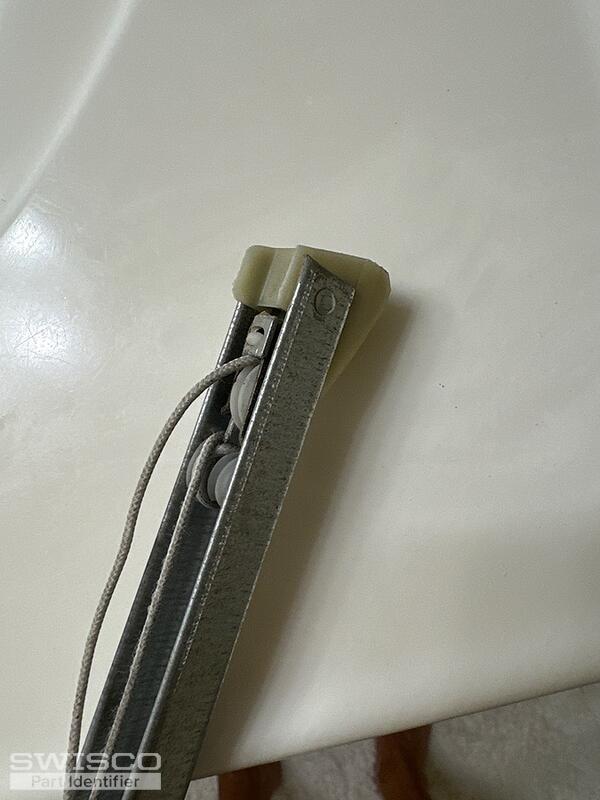

The bottom fitting had wings but they broke off
image image image
3 user uploaded images
Casey
Casey from SWISCO
Sep 19, 2024 8:46 am
SWISCO
EXPERT

It looks like you have either our S351-27, with a 15-002 bottom attachment, or S390-27, with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need. You'll also need a 2640 spring strength option for your replacement balances.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.

Handy Person from Utah
Sep 20, 2024 11:07 pm
The balance shoe is 1-1/8. I am unsure on the difference between the 351 or the 390.
Casey
Casey from SWISCO
Sep 23, 2024 8:21 am
SWISCO
EXPERT

The S390-27 has a 1-1/8" deep shoe as shown in the image included in our last response. Based on your information, you'll need the S390-27 (2640) channel balances for your repair.
