Help identify window balance

Start a new Discussion

Quick Learner from Florida

Oct 28, 2018 5:16 pm

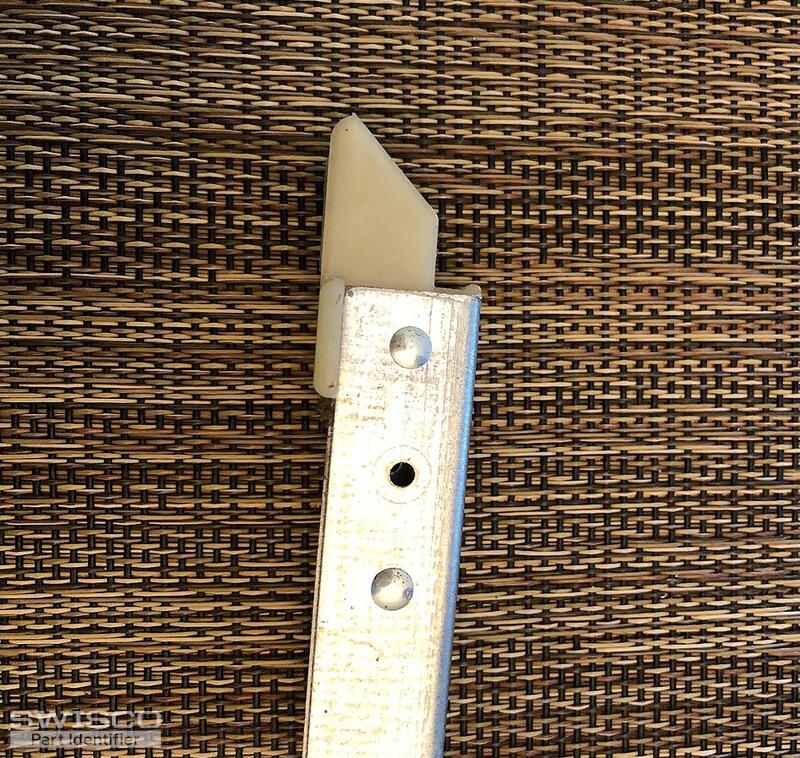

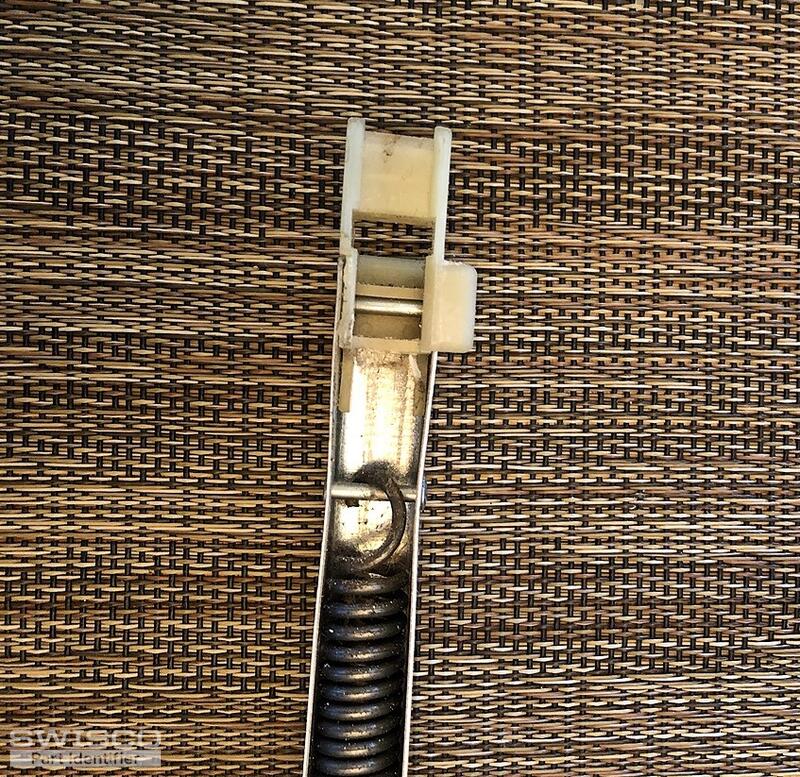

The length of the balance is 30". The depth of the shoe is 1 1/8". The stamped markings are 29 4 BS1.

Thank you.

5 user uploaded images

4 Replies

Casey from SWISCO

Nov 5, 2018 4:55 pm

Hi, thanks for the excellent photos. It appears you're looking for an S395-30 with stamp option 2940. Good luck repairing!

Quick Learner from Florida

Oct 8, 2019 8:28 pm

I have another size window I need balances for. They are the same manufacturer as the previous ones just a different height. The numbers stamped on the balance are 28 4 AW CMC 2. Do I need to remove the balance for a height measurement also? The total window height is 56" for these windows compared to 70" for the previous request. Thank you.

Casey from SWISCO

Oct 9, 2019 9:20 am

Going by your "stamp" number you other window should use the S395-29 balance with a 2840 spring strength option. You should check the shoe heel to toe measurement to make sure it matches the 15-001 bottom attachment on the Series 395 balance. If everything matches up, you should be in good shape and we've added a few videos to assist you.
