Help identifying channel balance replacements

Question

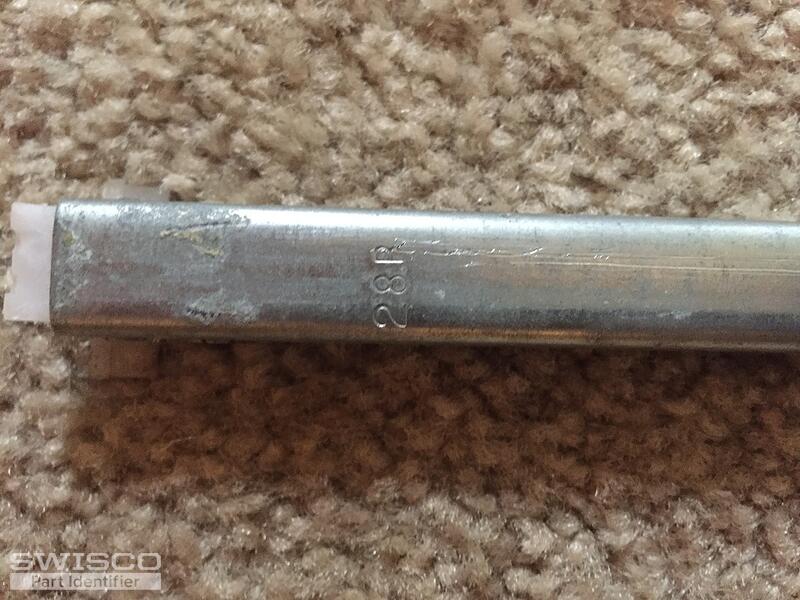

Hi, I need to buy left and right channel balance replacements for one window. Channel length is 29." The only marking on this balance is the stamp "28R." I assume from other posts that this is a series 380 or 385, but I don't know how to verify which shoe is attached to the bottom of the balance. Thanks for your help!

Paul · Accepted Answer

Thanks for the post. You'll need our Series 380 balance. This balance comes with a 15-005 bottom shoe attachment that has a depth of 1" (The Series 385 shoe has a depth of 1-3/32"). Since your channel measures 29" you'll need the S380-29 with the spring weight option of 2820. This corresponds with the stamp on your balance that is actually "28B". Let us know what you think.
