Help identifying hardware

Question

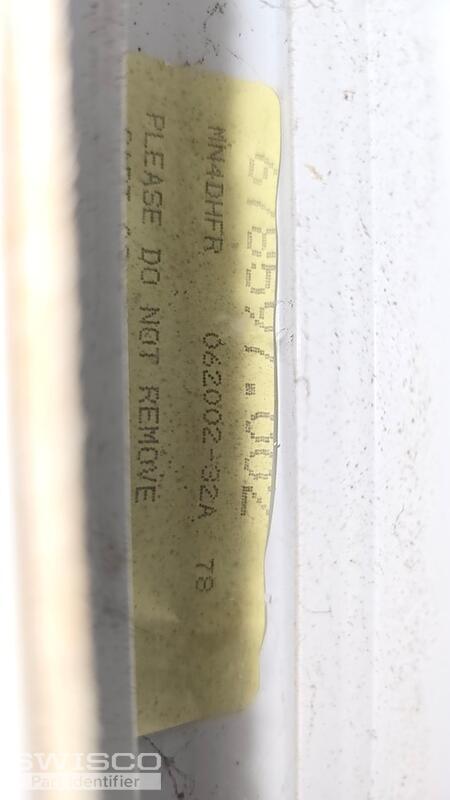

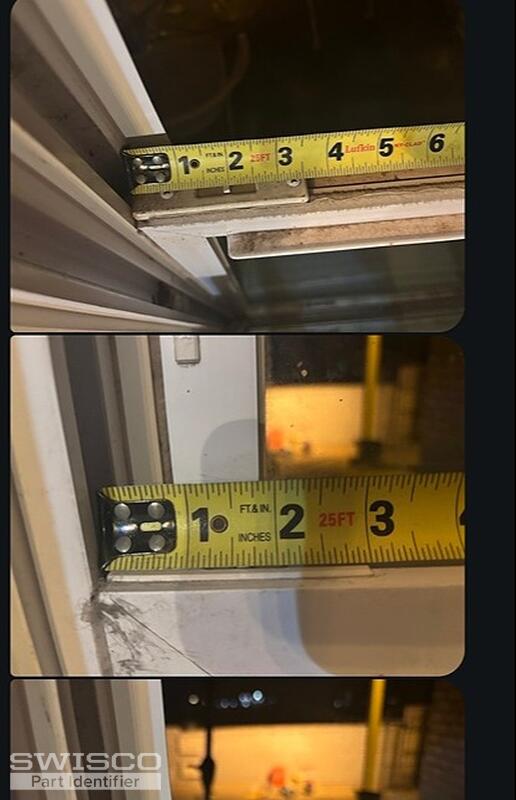

I have 10 of the same windows and the only thing holding them together is the lock in the middle. Can you help me figure out part numbers for the hardware I took pictures of?

Emily · Accepted Answer

Hi there!

Thank you for reaching out to us. The 15-177 can replace your old pivot shoe. If you need new springs, see the Series 152 which are sold separately. You can reuse the old spring supports if they're in good shape. If you need new ones, see the 15-143, 15-144, and 15-145 that "sandwich" over the spring.

As for the pivot bar, take a look at the specifications for the 26-226 and see if one of the hole placements matches up with yours.

For the tilt latch, I wonder if this could be the 26-193 and 26-194. I recommend you review the specifications to confirm they align with your old tilt latch.

End view of the 26-226 pivot bar

Detail of 26-193

Detail of 26-194
