Help identifying this casement crank

Question

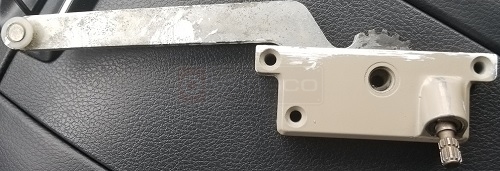

See picture below, of the part we need. It is 7" and right-sided. Please let me know what the price would be for it and when we would be able to get it for.

Thank you,
Pessy
Elite Builders

Dave Sr. · Accepted Answer

We carry the 39-020 operator, which looks to have a similar design but with a 9" arm. You might want to consider our 39-254E. This has a different style, so I'm not sure if it can work on your window, but it has a 7-1/2" long arm. It's also installed under the sill cover at the bottom of the window while yours is installed butted up to the sill cover. You might also need to install a new track our 39-533. I cannot guarantee it will work as a replacement, but we do not have a closer match.
