Product Code: 39-254E

Ellipse Style Single Arm Operator, 7-1/2"

$35.91

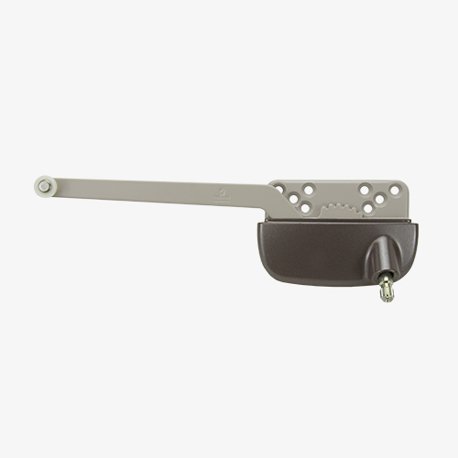

Ellipse Style Single Arm Operator, 7-1/2" Image

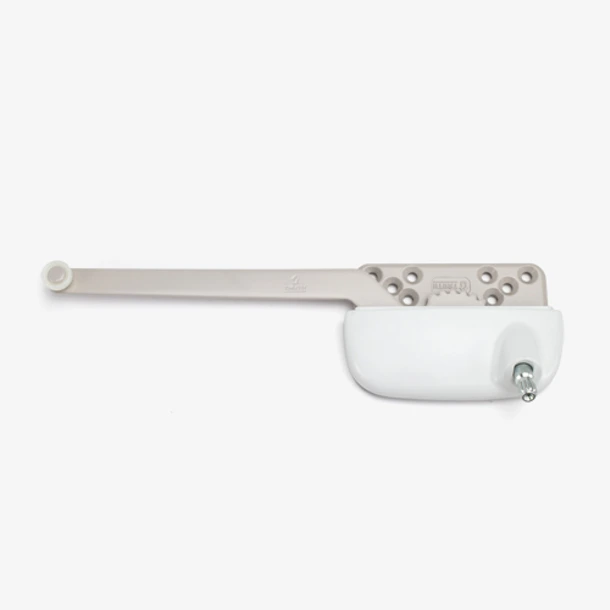

Alternate image for 39-254E

Product Description

Truth Hardware sill mount, single arm crank operator. Used to open and close wood, metal, and vinyl casement windows.

See SWISCO product 39-255E for the opposite handed version.
Will provide a full 90 degree window opening.

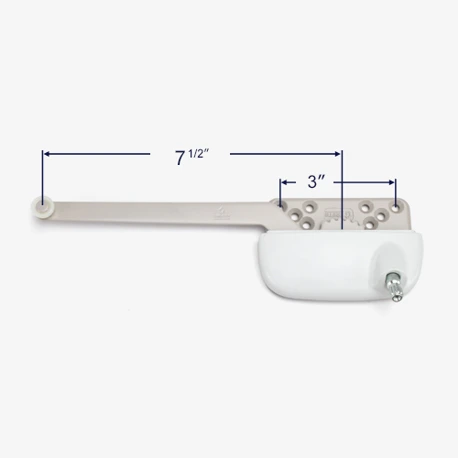

7-1/2" long arm, measured from wheel center to gear center.
11/32" spline; handle sold separately.
Ellipse style case is manufactured of high-pressure die-cast zinc; hardened steel drive worm and gear arm with nylon roller.
Finish is electrostatically applied, durable coatings that provide excellent resistance to chipping, scratching and corrosion while maintaining color stability for years in direct sunlight.

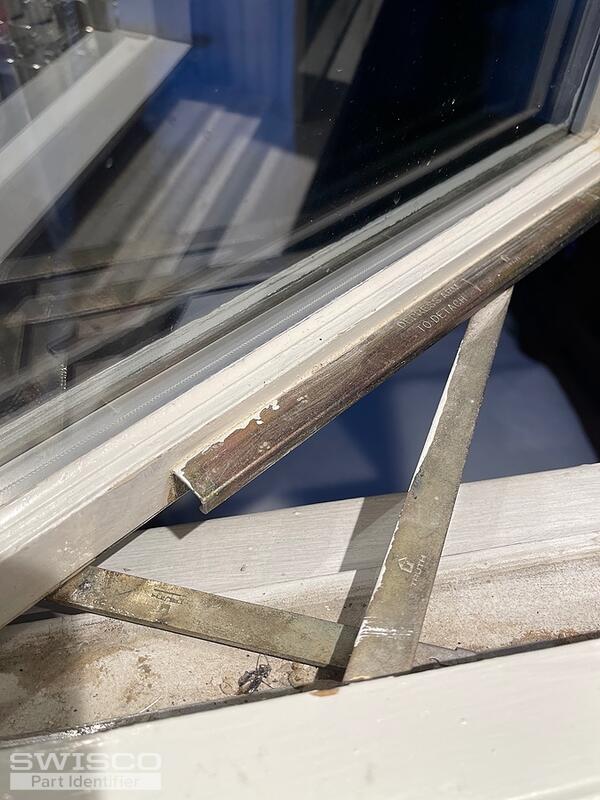

Truth casement operator

Need two of each hand

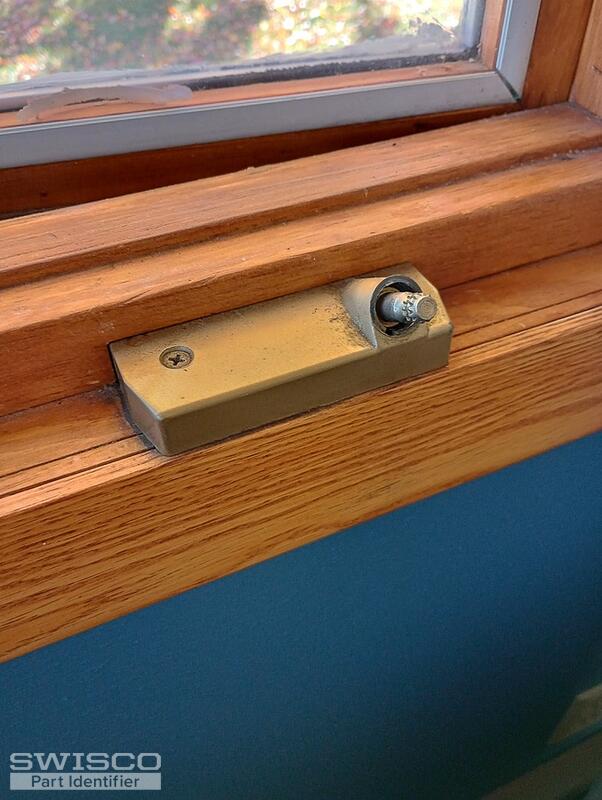

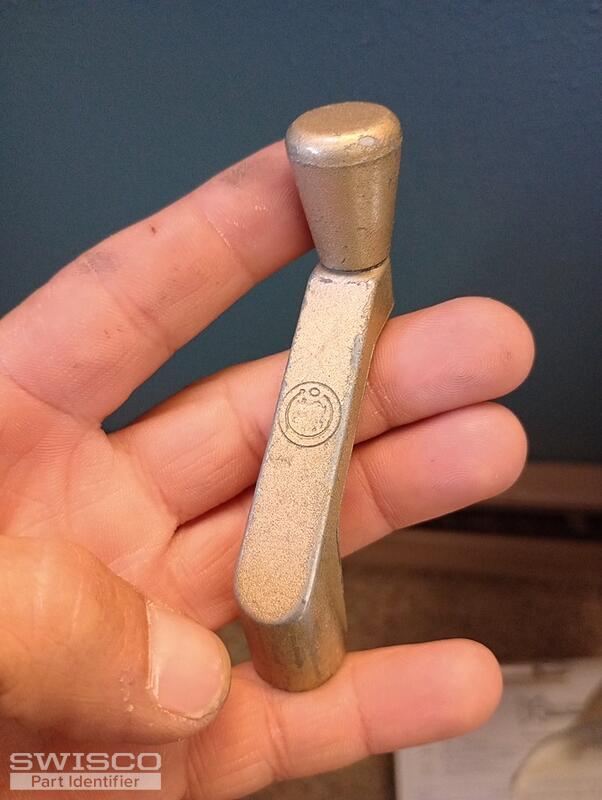

Operator cover and crank also the window lock

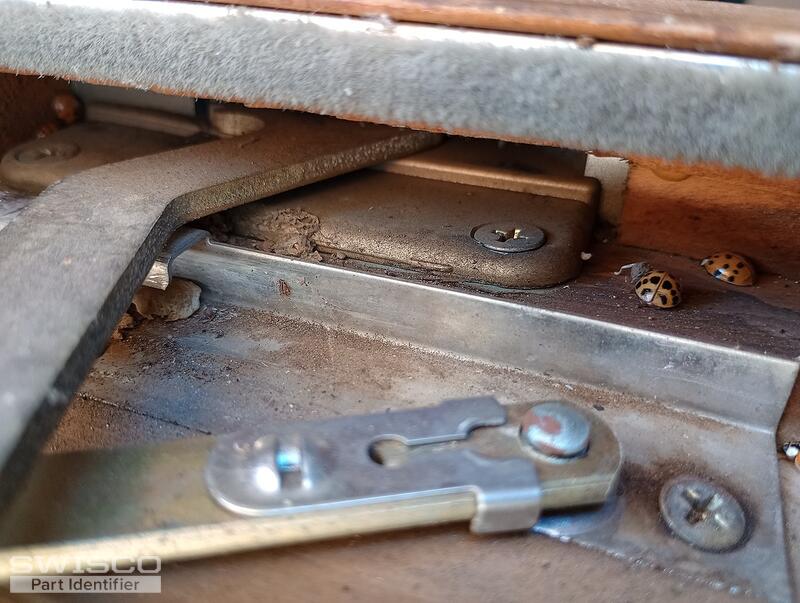

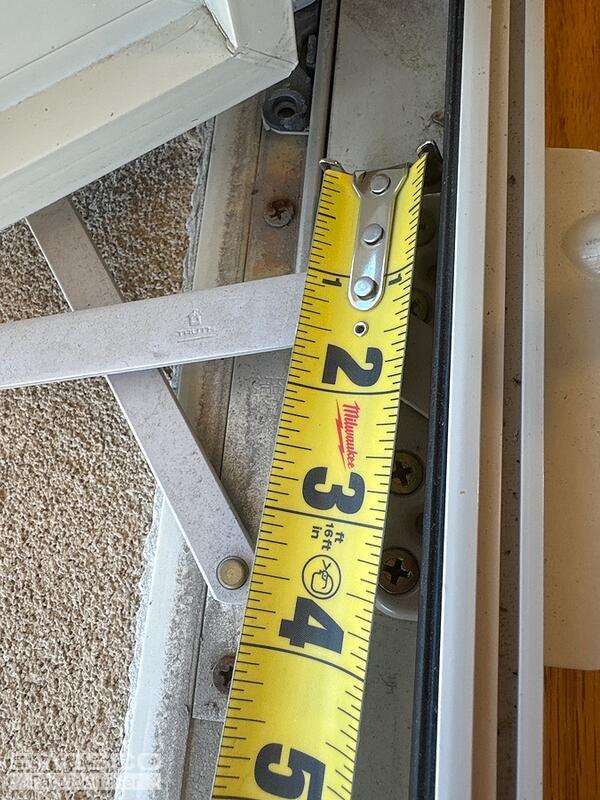

I believe all the hardware is truth. We have 4 windows each of 2 locks (8 total). The operators are on two right opening windows and two left opening windows. I included a picture of the operator hinge in case that would help of need replacement. thank you, Morgan

+2

+1

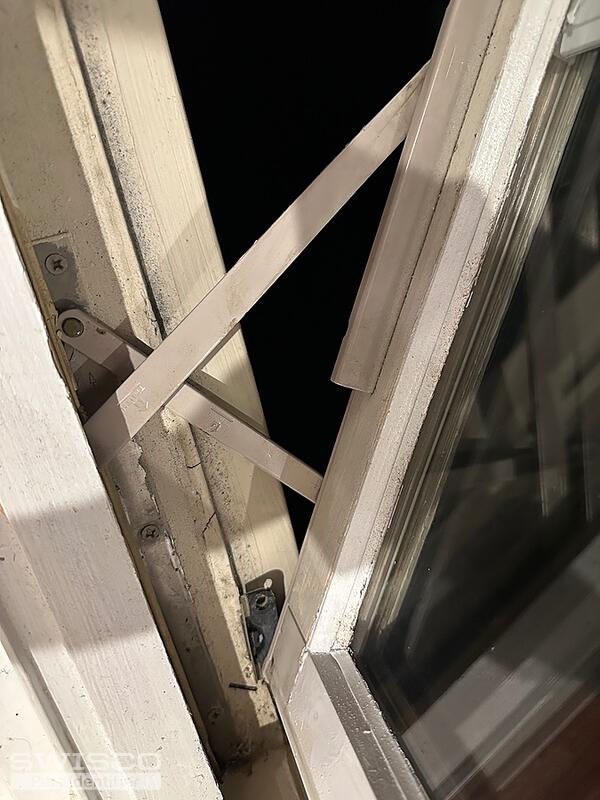

Truth 7.5" right hand single arm casement window operator

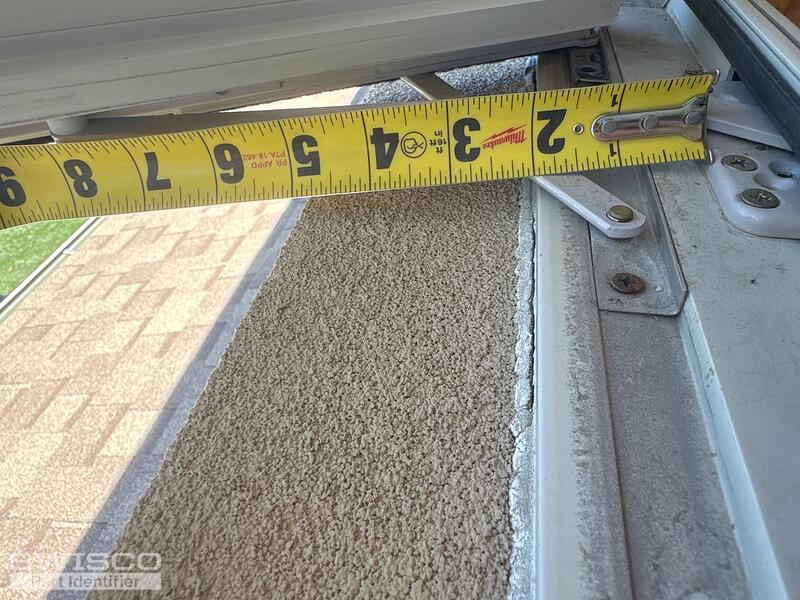

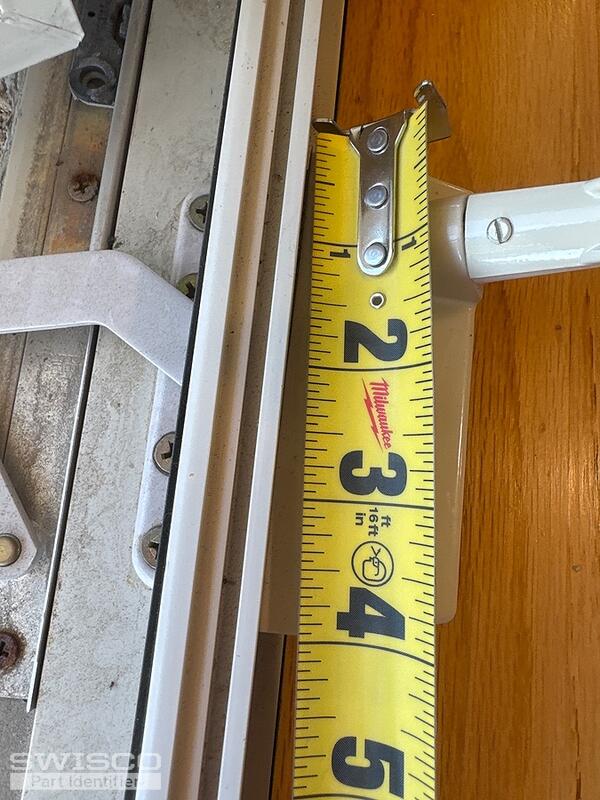

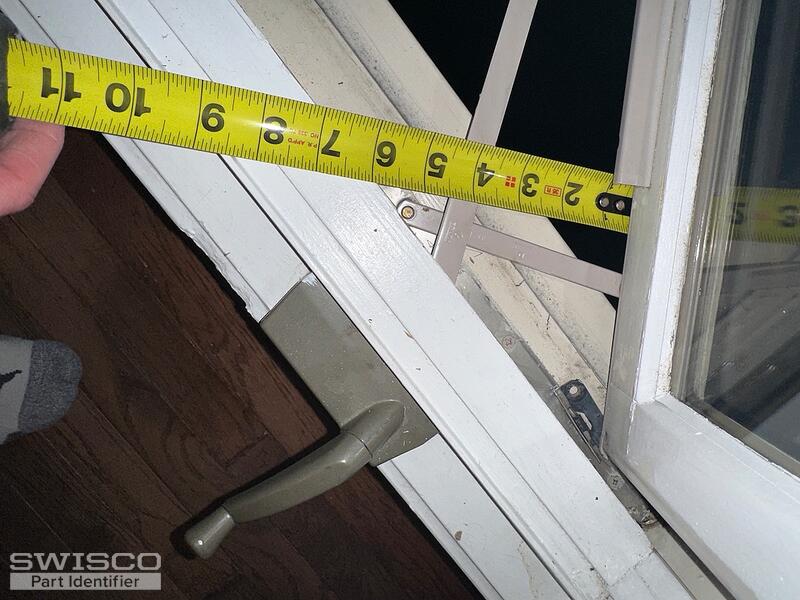

Hello, I am looking to replace a single arm casement window operator. The original was manufactured by Truth. I believe that it is about 7.5" - see the attached photos to determine exact length.Thank you in advance for your help.Stephen

+1

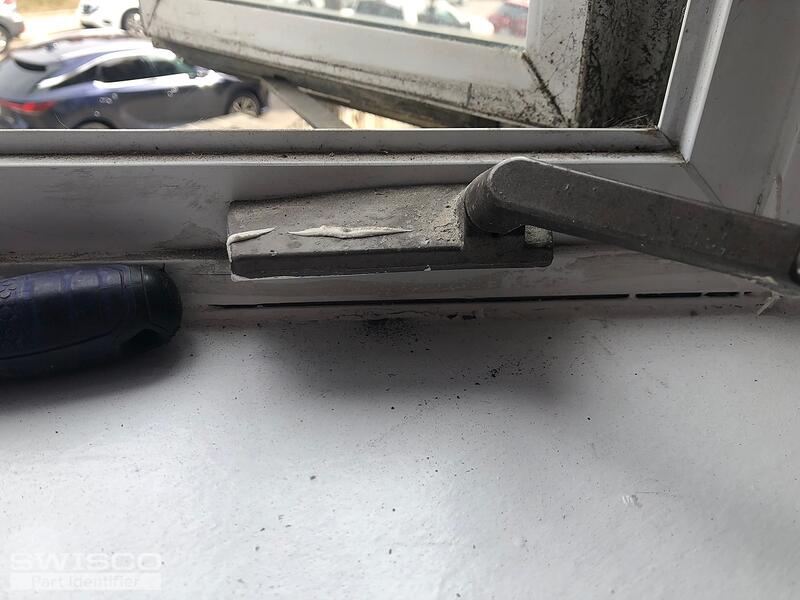

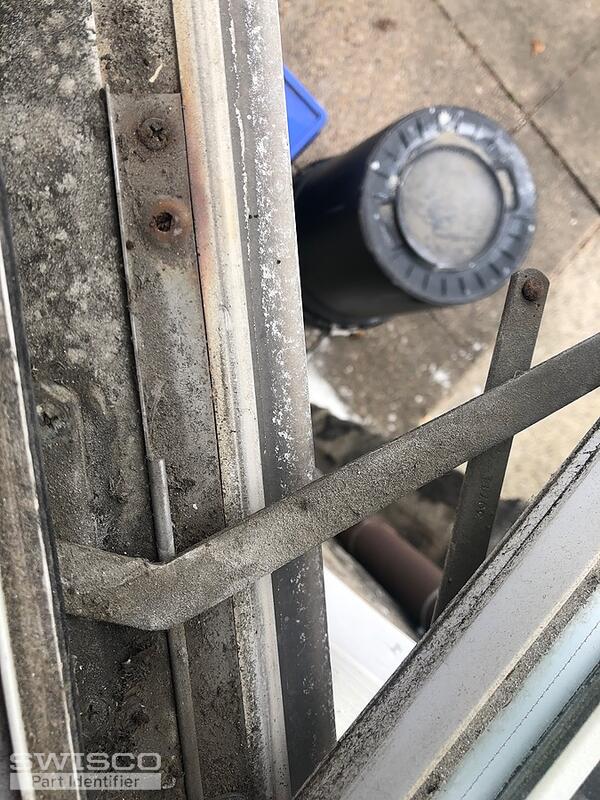

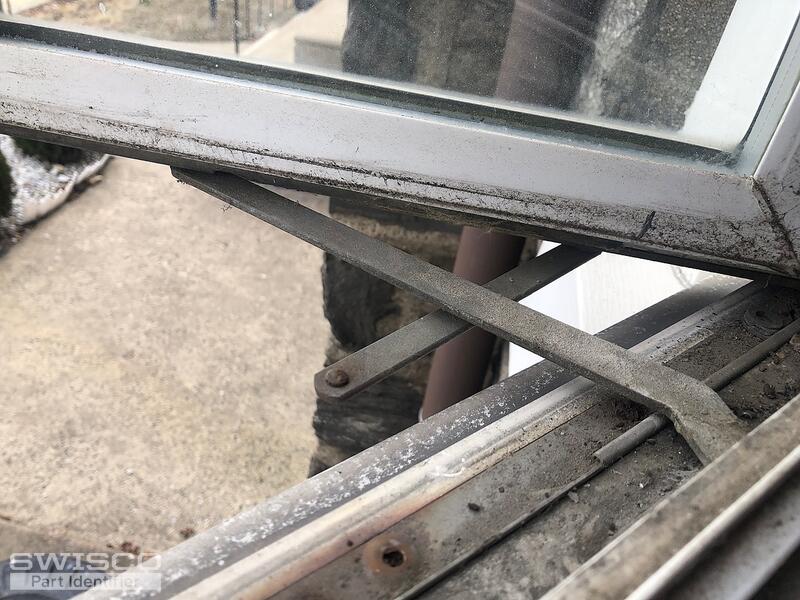

Casement window crank

Need help to identify which type of crank this is. I don't have much else to go on pictures or numbers wise. There are other anderson casement windows in the same apartment but the window doesn't seem to match up with those.

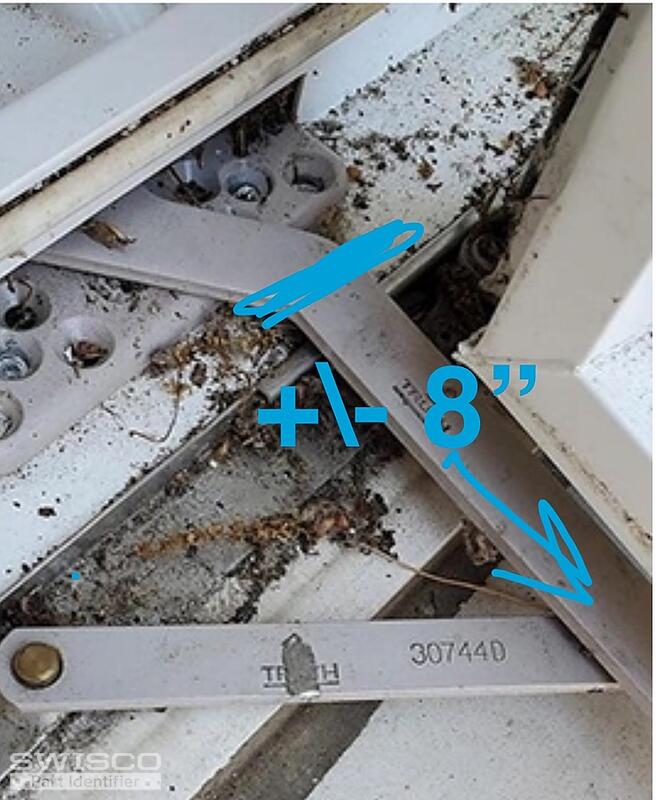

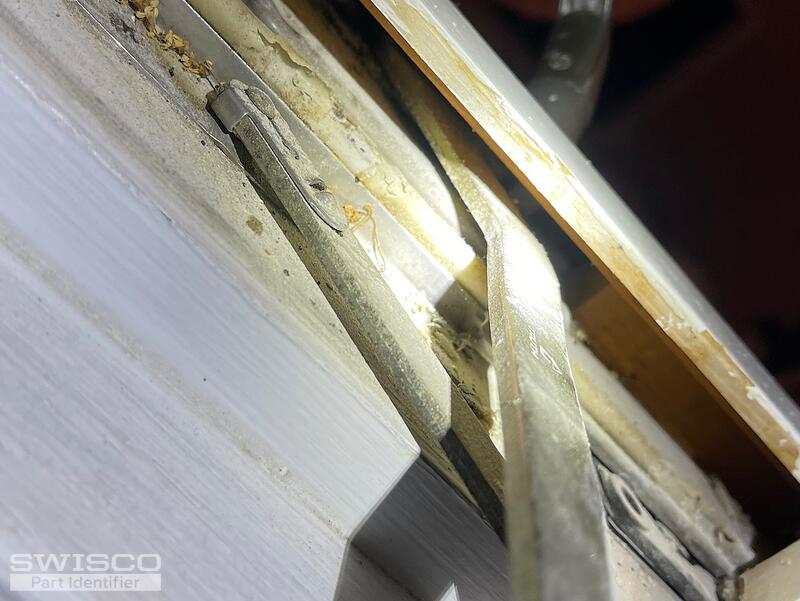

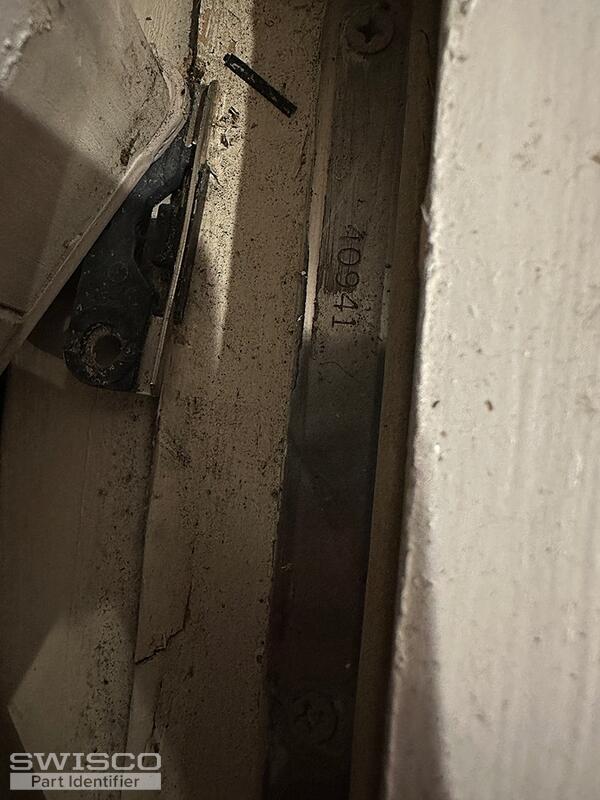

Truth hardware replacement

Hardware has TRUTH marking and appears similar to the example photo on your site. I only took an approximate measurement without taking off some trim, but I can remove the trim and get a better measurement if needed. Thank you !!

+2

+1
