Product Code: 39-255E

Ellipse Style Single Arm Operator, 7-1/2"

$35.91

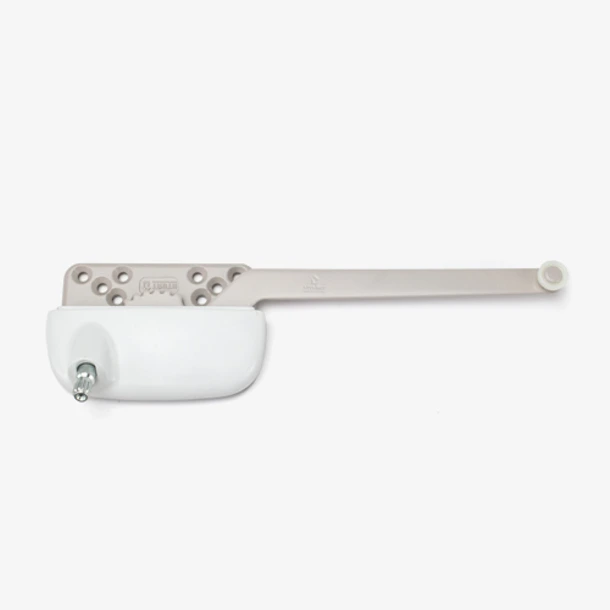

Ellipse Style Single Arm Operator, 7-1/2" Image

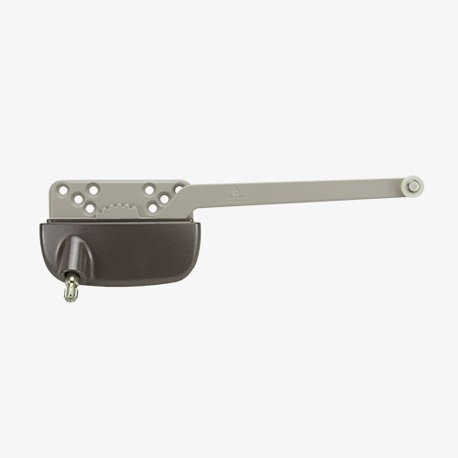

Alternate image for 39-255E

Product Description

Truth Hardware sill mount, single arm crank operator. Used to open and close wood, metal, and vinyl casement windows.

See SWISCO product 39-254E for the opposite handed version.
Will provide a full 90 degree window opening.

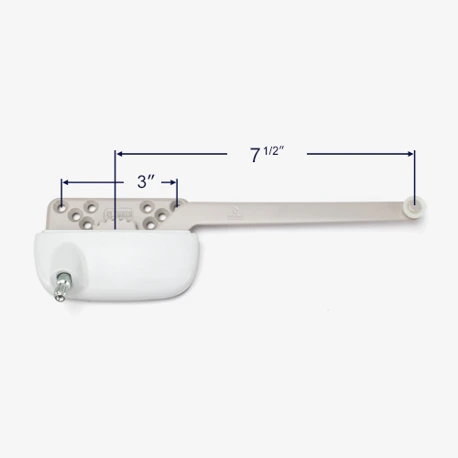

7-1/2" long arm, measured from wheel center to gear center.
11/32" spline; handle sold separately.
Ellipse style case is manufactured of high-pressure die-cast zinc; hardened steel drive worm and gear arm with nylon roller.
Finish is electrostatically applied, durable coatings that provide excellent resistance to chipping, scratching and corrosion while maintaining color stability for years in direct sunlight.

Truth casement operator

Need two of each hand

window operators replacement

On the pictures are window operators that needs to be replaced.Please help me to identify these part numbers.They all are made by Truth and have numbers on arms 30744 abd 30905.I need 3 of first 2 pictures - 2 right and 1 left.And one of pictures 3 and 4 right.And 3 handles for them in white color.P ... (cont.)

+2

+1

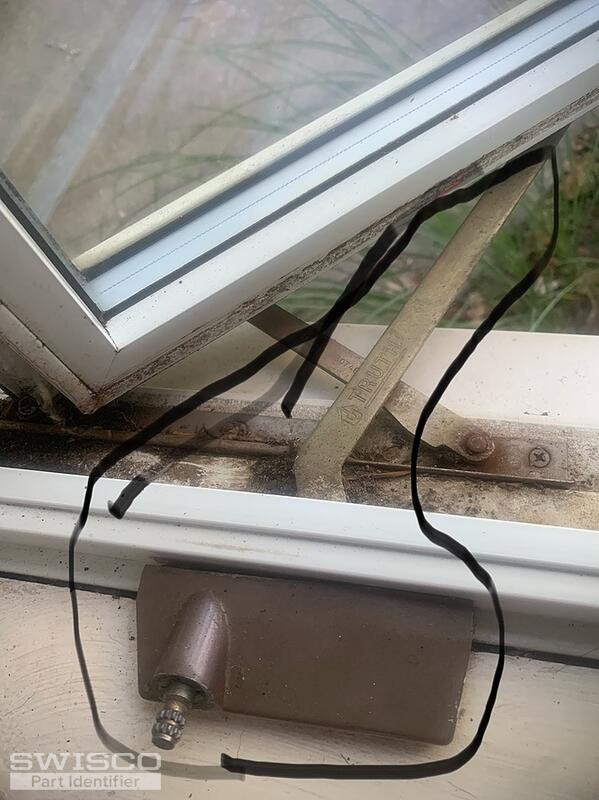

Operator cover and crank also the window lock

I believe all the hardware is truth. We have 4 windows each of 2 locks (8 total). The operators are on two right opening windows and two left opening windows. I included a picture of the operator hinge in case that would help of need replacement. thank you, Morgan

+2

+1

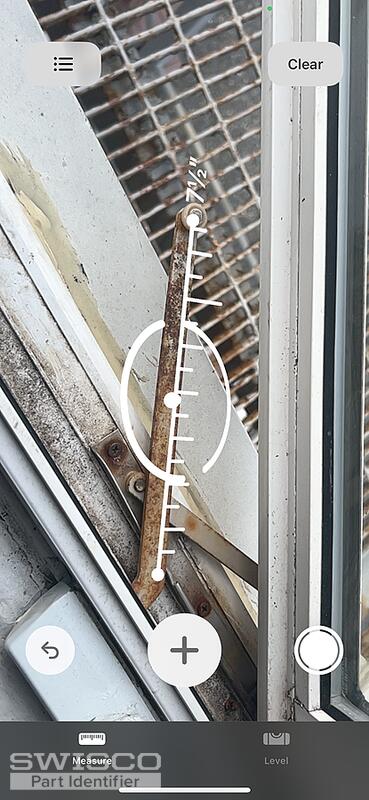

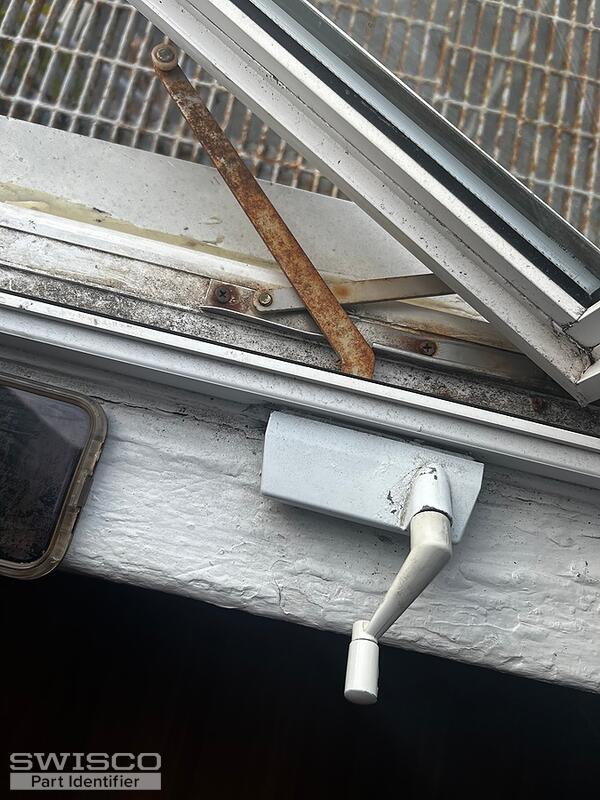

Truth 7.5" right hand single arm casement window operator

Hello, I am looking to replace a single arm casement window operator. The original was manufactured by Truth. I believe that it is about 7.5" - see the attached photos to determine exact length.Thank you in advance for your help.Stephen

+1

Truth Window Crank

For a casement window, numbers on it include: 12182003 0820 45251 40050

+3

+2
