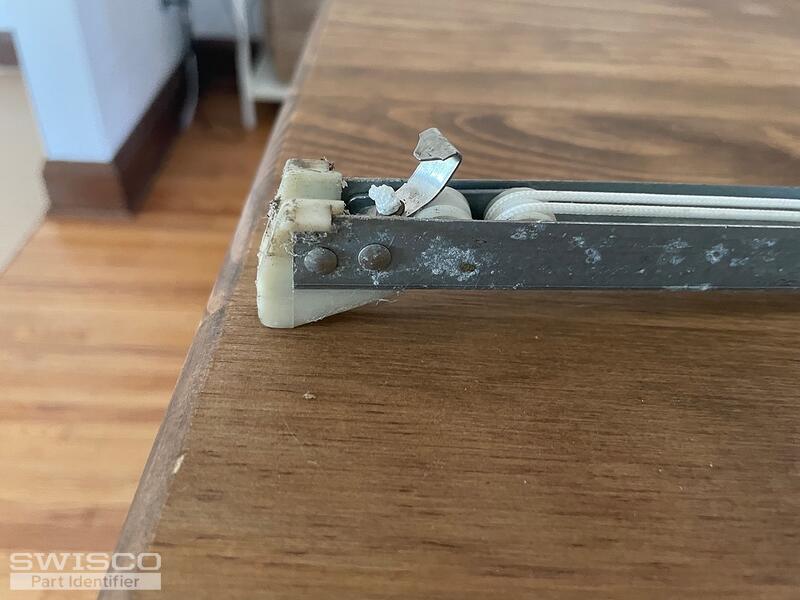

Metal channel is 20 inches long.

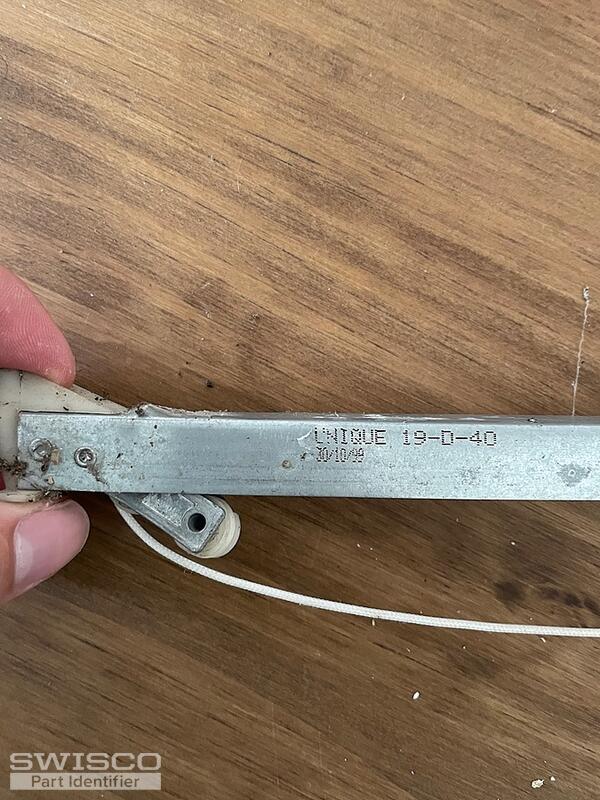

Writing on metal channel reads?
unique 19-D-40
30/10/99
Help identifying window balance
Quick Learner from Brainerd, MN
Jul 25, 2023 4:39 pm
5 user uploaded images
2 Replies
Emily from SWISCO
Jul 26, 2023 3:49 pm
Hello!
Your balance looks like either the S380-20 or S385-20 to me. You will have to measure as shown below to determine which Series is best. The 19-D-40 stamp may correspond to our 1940 stamp option but you can weigh the window sash on a scale to confirm. A pair of balances with this stamp can support a sash weighing 14 to 17 pounds.
Comparison of the S378, S380 and S385 balance shoes.
