Help locating parts

A contractor from Florida says:

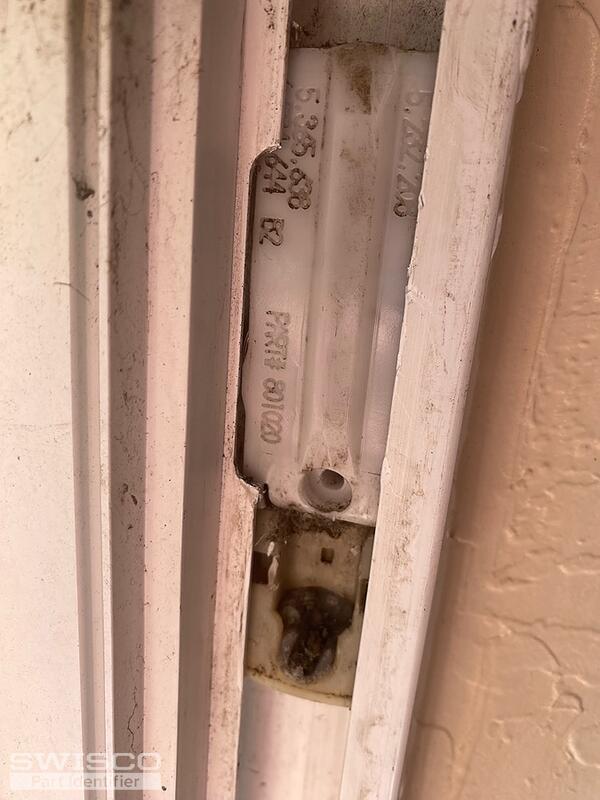

I am trying to replace these parts for our constant force window balancer.
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named 02BC9A33-A293-4267-BF99-A9D8D8492ECA.jpeg
Profile picture of Jasmine
Jasmine from SWISCO responded:

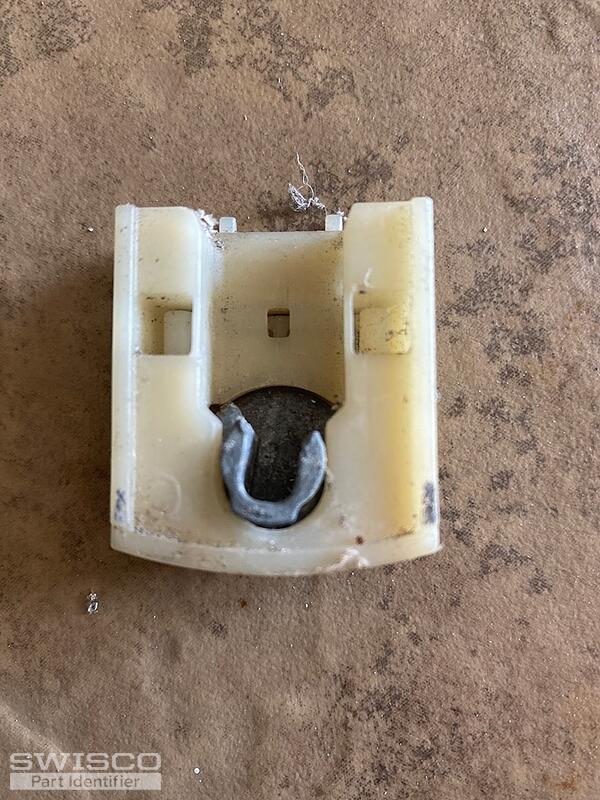

Thanks for posting. We are not able to provide an exact match for the pivot shoe you have however, I am confident our 15-199 should work as a replacement. Carefully review the measurements below to determine if this would be the right fit.

Alternate view of 15-199
Alternate view of 15-199

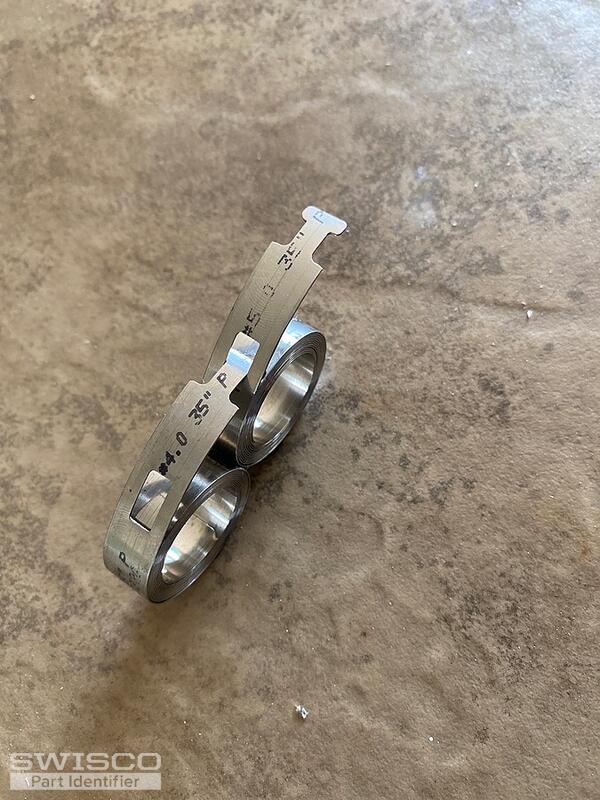

Your balances appear to be either our S160 (1/2" width) or our S165 (3/8" width) coil balances. To confirm which one you have you'll need to measure the width of your coils.

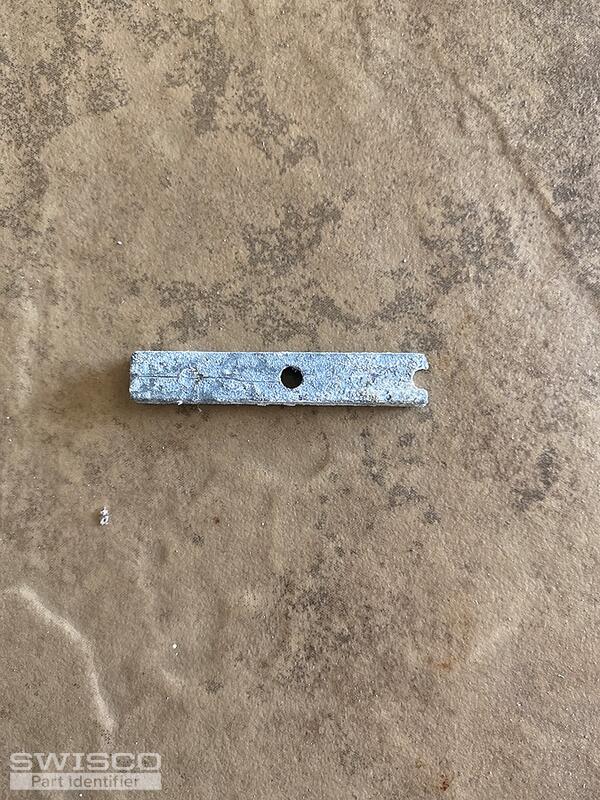

To recommend a proper replacement for your pivot bar, I'll need to see an undamaged pivot bar removed from the window.
