Help me find this part please
Hello,
Thanks for reaching out! The window part you are searching for is the casement window hinge set. I'm fairly certain we can supply the replacements for it but I'll need to know the length of the track installed to the window sill.
Please let me know if you have any additional questions.

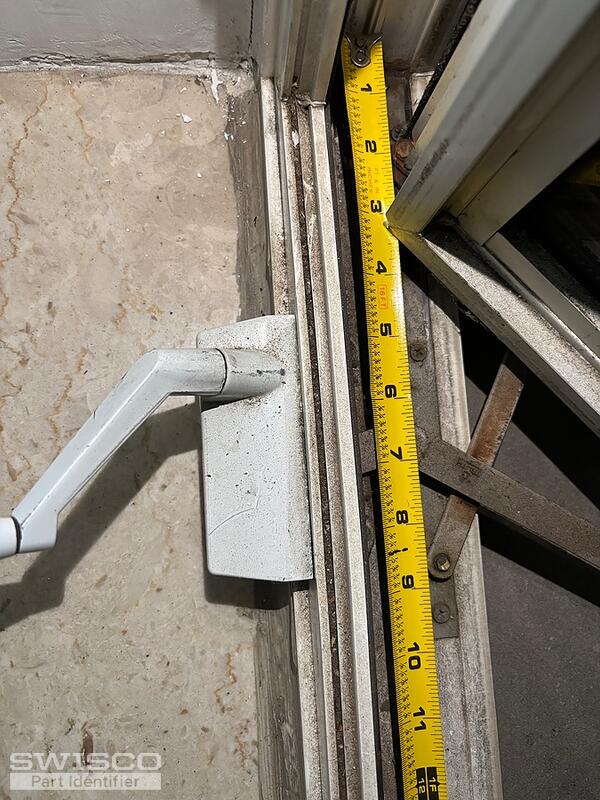

However this is the working left side, I’ll be ordering the right side with the operators and the crank please.
Let me know if you need more information.
Thank you very much for your help.
Thanks for confirming. Your window hinges can be replaced withe either the 36-004-10 (stainless steel) or the 36-048 2-Bar Hinge Set. To determine which of these is the best option for your repair, carefully look over the specifications and compare them.
These sets can be used to replace the top and bottom hinges for both left and right handed hinges. You'll just need to be sure to replace both hinges to ensure the top and bottom match.
what about the other parts like the crank, operator and the connector arm from the crank to the window please.
Apologies, for forgetting to include that in the recommendation. I believe you'll need the 39-014 Casement Window Operator. The compatible hardware and accessories can be found tagged below this thread.
