Help me identify?

Quick Learner from Fort Lee, nj

Apr 13, 2021 5:46 pm

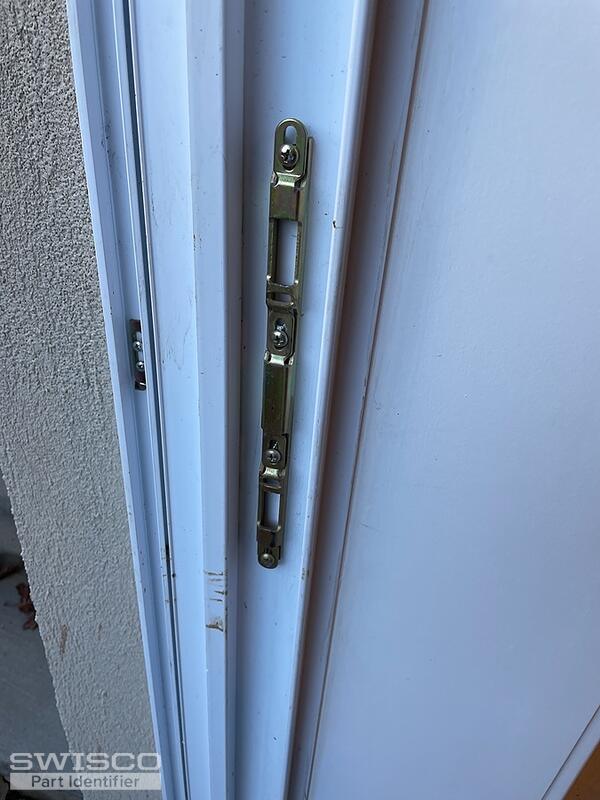

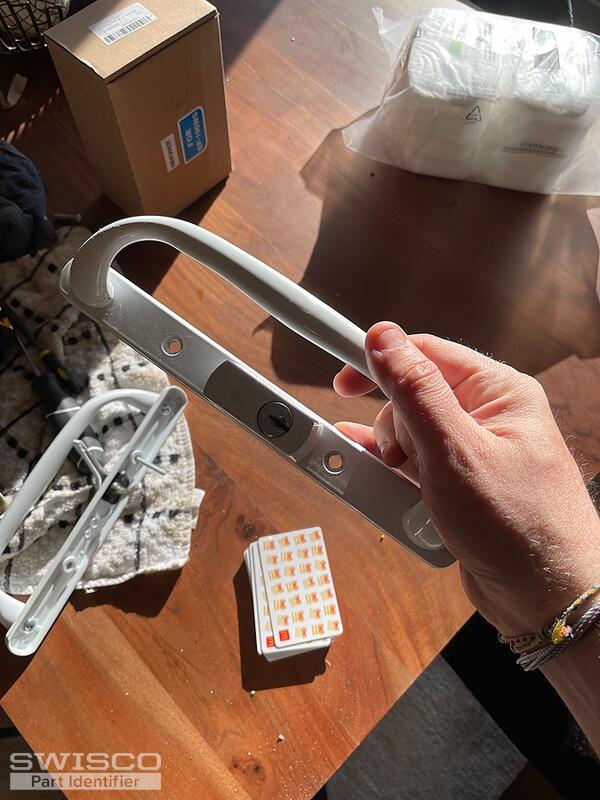

Lock seemed to break and got stuck in locked position. No markings on any part of this assembly. Looks like a multi point lock but only utilizing one lock?

5 user uploaded images

9 Replies

Quick Learner from Fort Lee, nj

Apr 13, 2021 6:44 pm

Further googling im 99% sure this is an american craftsman door. But not sure how to obtain replacement part

Emily from SWISCO

Apr 16, 2021 3:40 pm

Hello! It looks like you have our 82-265 mortise lock and 82-086 keyed handle set. Look over the dimensions and compare them to your current hardware to make sure everything matches.

Landlord from Phoenix AZ

Apr 28, 2021 1:51 pm

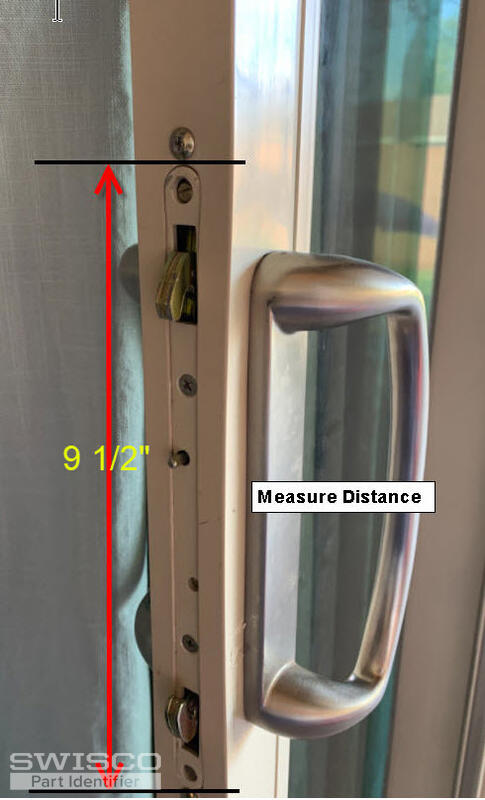

Part number looks like mine, however, dimensions are different. Mine is 9 1/2" from top of mortise to bottom. See photo. What part # do I need?
I think this may be a jeld-wen but can't be %100 sure.

Thanks
Neil

1 user uploaded image

Tom from SWISCO

Apr 28, 2021 2:36 pm

Thanks for getting back to us, Neil. Would our 82-239 be a closer match? The total height is still a little tall at 9-7/8", but it is the best option we have.

Alternate image for 82-239

Landlord from Phoenix AZ

Apr 30, 2021 11:33 am

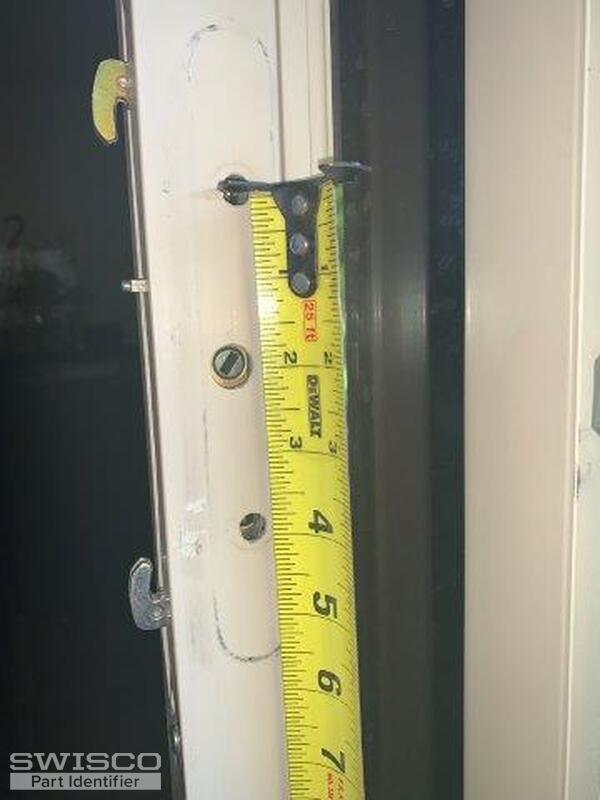

I think the 82-239 looks like a better match, however, I only have one of the notches for the lock.

4 user uploaded images

Tom from SWISCO

Apr 30, 2021 12:17 pm

I'm not sure what you mean when you say you only have one notch. Can you clarify what that means? How does that prevent our 82-239 from working?

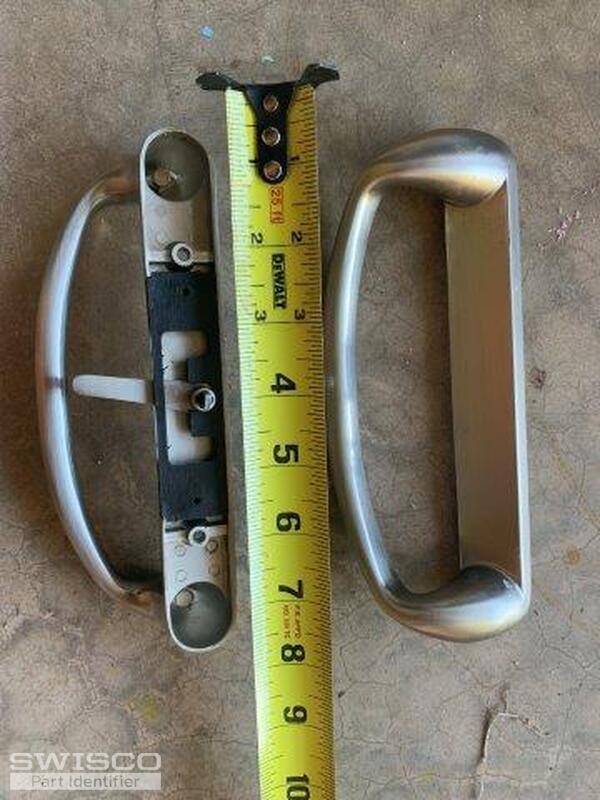

Please also note that the handle you show in these photos is not the same as what was originally recommended for the customer who started this thread. You would need something like the 82-030 to replace that.

Landlord from Phoenix AZ

Apr 30, 2021 2:04 pm

If your 82-230 has the same measurement between the two mounting screws as mine (4") and it works with your 82-239 then it might work. You do not have the measurement between mounting screw holes on 82-230.

Tom from SWISCO

Apr 30, 2021 2:28 pm

We don't have a product with the code "82-230." If you're referring to the 82-030 that I recommended, then the hole spacing is 3-15/16", center to center. You can see that on the 82-030 store page, too.
