Looking for replacement balances

Home Owner from San Clemente, CA

Oct 17, 2020 12:46 pm

Hello,

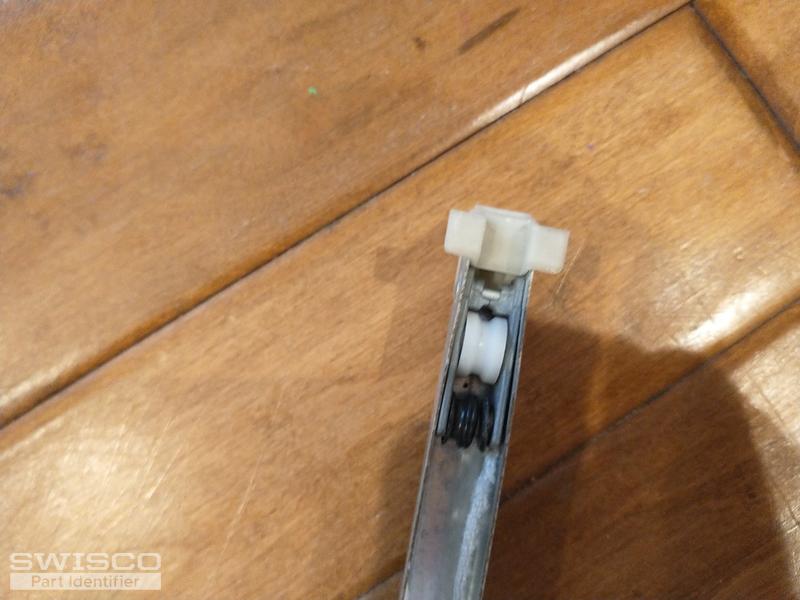

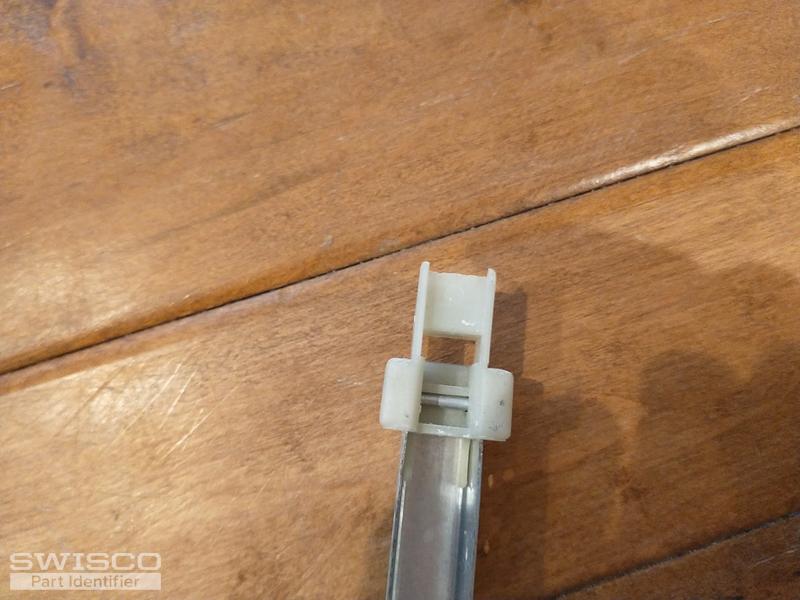

I have to replace the part in the picture and I have no idea how to call it...

On the part there are the following markings:

27 4
B.S.I
0L

What should I order from SWISCO?

Thank you,
Claudio

5 user uploaded images

4 Replies

Casey from SWISCO

Oct 20, 2020 3:28 pm

Hello,

With this combination of attachments, you could have either an S380-28 or S385-28 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2740 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.

Home Owner from San Clemente, CA

Oct 20, 2020 7:03 pm

Hi Casey,

Thank you for your message. I just measured and it is 1". So, now I am going to order the S380-28 with the 2740 spring strength options. Sorry for my following question, but I am really ignorant about the field: Is the spring already installed, or do I have to assemble everything?

Best regards,
Claudio

Casey from SWISCO

Oct 21, 2020 8:20 am

No problem. Our balances come fully assembled with the pulley, spring and end attachment as shown on the item's product page. Please elt us know if you have any other questions.
