Help needed with window ID and balancers

Professional from Oxford, PA
Good day,

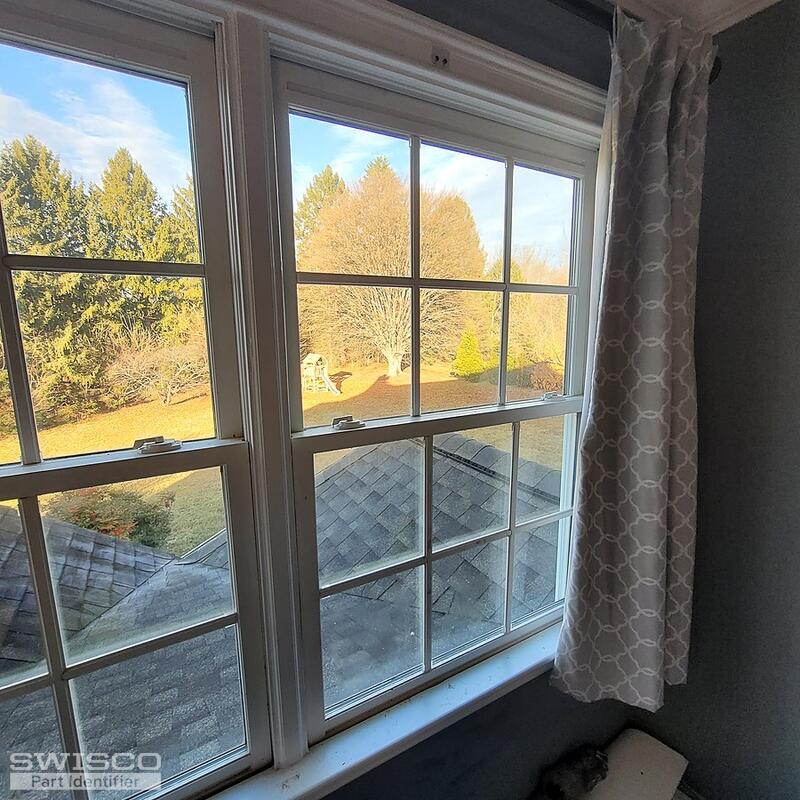

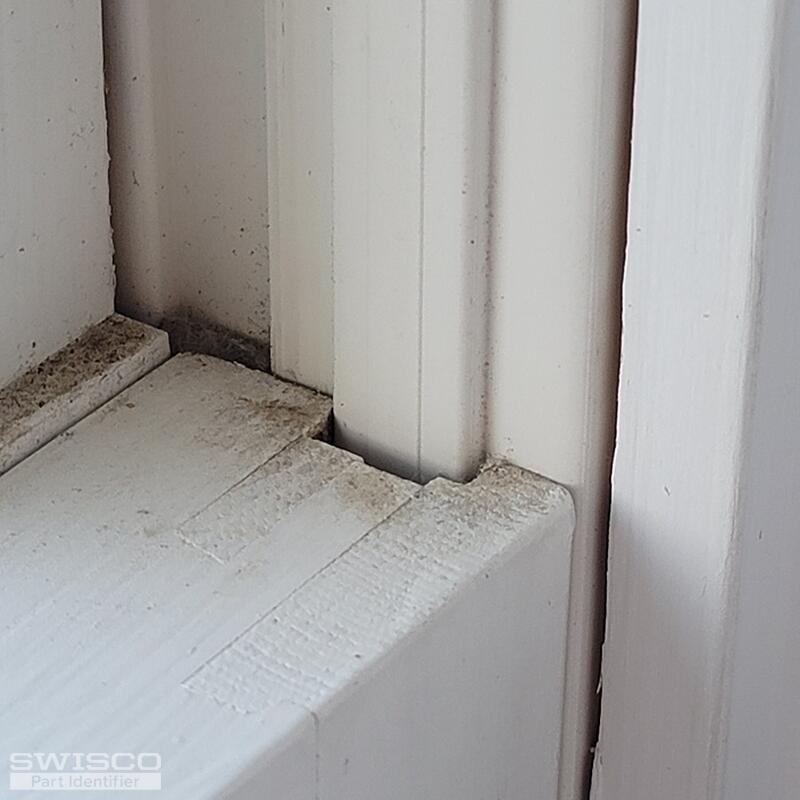

I did an inspection for a customer of mine with clear balancer issues and they need to be replaced.  Not sure if you can help ID the window or balancers, but I have attached the photos I took and here are my notes.  Not sure if you need anything else and have no way of weighing the sash at this time, sadly.   50/50 Double hung window, wood inside, aluminum exterior.  No glass etchings, no codes on warm edge spacer between glass, no product ID or serial #.  However, the vertical rail on lower sash is @27-3/8".   Visible glass measure is 31-1/8" across x 23-1/16" high.   Vertical side jamb length from sill to head is @ 52-1/2".   I believe it is a Hurd window, pressure.   Also looking for weatherstripping for top and bottom of sash rails.  It slides into kerf.    Looking for top and bottom balancers and WS.   Thanks!
5 user uploaded images
2 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Hey there,

The balance you are searching for is a jambliner spring balance. I'm afraid we would only be able to provide you with a replacement for the shoe attached to the bottom of your balance. It is the 15-104 Caradco Friction Shoe. Our best suggestion for obtaining a replacement for your balance would be to reach out to your nearest mill work.

Profile view of 15-104
Profile view of 15-104

Face view of 15-104
Face view of 15-104

In regard to the weatherstripping, there is a chance we can provide you with a replacement for it but I'll need to see a clear photo of the end profile view to identify it.
