Help to find the fitting lock please
Hello,

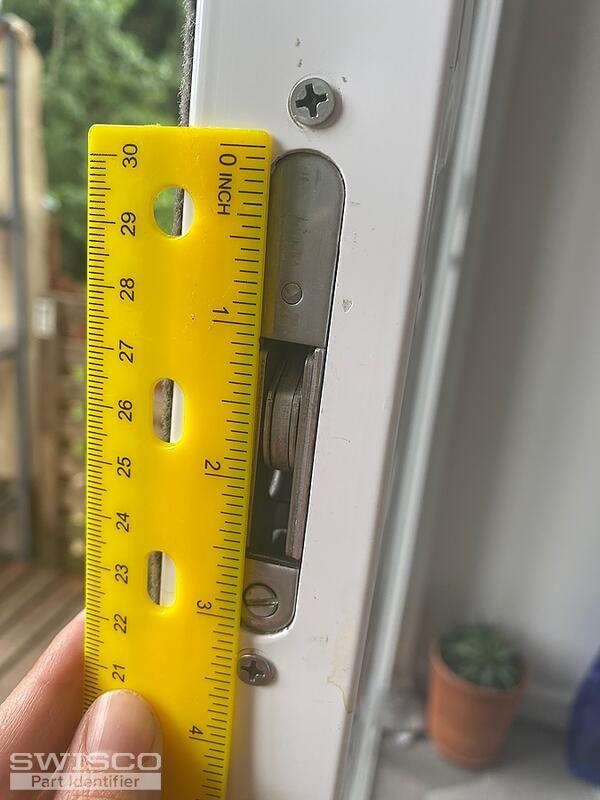

Your mortise lock resembles the 82-218. Take a look and compare the dimensions below to yours.
Unforutnately, we can't be sure if we carry a suitable replacement for your handle set without seeing the original. It's tough to make out exact dimensions from photos but it looks like the installation holes may be 5-1/2" apart. If so, we do not carry a replacement with the same hole spacing. We do offer the 82-030 handle set that is commonly used with this mortise lock but you would need to make new holes in the door to install it.
We also offer the 82-005 surface-mounted handle set, which would bypass the need for an internal mortise lock. This option would still require making new installation holes since the holes in this handle measure 4-15/16" apart. Review both options to see if you could adapt one of them to work for your application. Thank you.
