Help to identify parts

Home Owner from San Diego

Dec 31, 2022 1:24 pm

Hello,
We have Milgard windows and are missing a few items and are having trouble determining which parts to order.
We are missing a few metal clips that flip out to allow us to remove the window.

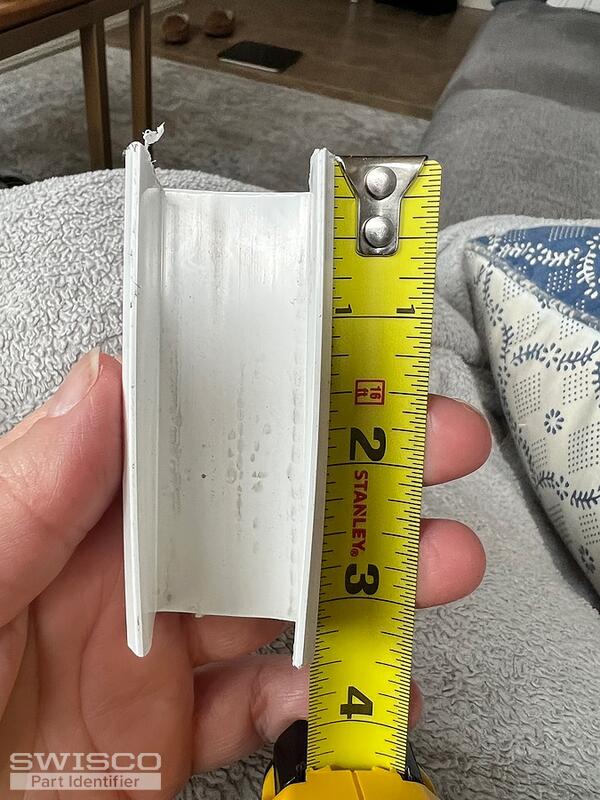

We are missing a few breaks that stop the window from opening too far up.

Can you suggest which parts are the ones we need to order?

4 user uploaded images

4 Replies

Tom from SWISCO

Jan 4, 2023 2:29 pm

The metal clip appears to be a take out clip. For that, I recommend our 16-002.

The plastic piece is a sash stop but we unfortunately don't sell the style you show here.

Home Owner from San Diego

Jan 4, 2023 2:51 pm

Thank you for your response. We have one more question. We are replacing the channel balance springs inside. We weighed our window and it was 18.3 pounds. So when we search for a replacement balances do we select the one that in the 18.3 pound range or do we half the weight and look for one that 9.15 pound range since we will have 2 total (one on each side)?

Tom from SWISCO

Jan 5, 2023 8:02 am

You want to pick the weight rating that covers 18.3 pounds, not 9.15. When it comes to channel balances, you never want to split the weight in half. All channel balance stamps are rated assuming that two balances are carrying the load.
