Help with Viking Window Balance

Quick Learner from 95460

Oct 11, 2017 12:03 pm

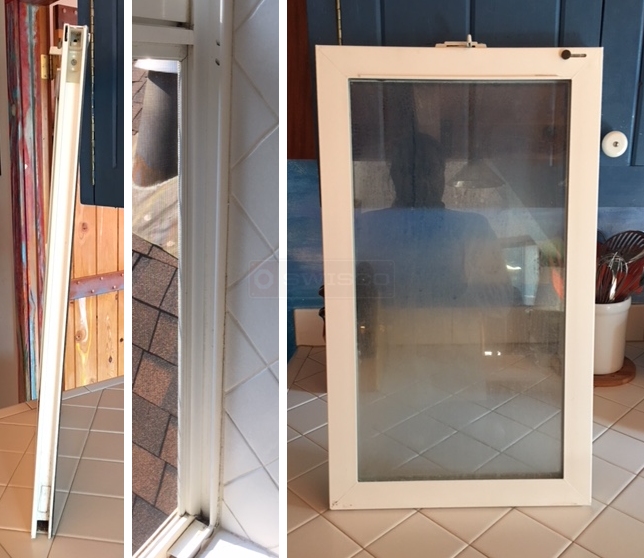

I am need if assistance in determining the appropriate window balance for this Viking Window. There are no balances present currently.

The bottom (sliding) section of the window is 26 1'/8" H x 15 3/8" W. The depth of the window is about 1" and the channel is just under 3/4".

Thanks for your assistance.

5 Replies

+ Add a Comment

Tom from SWISCO

Oct 16, 2017 3:47 pm

EXPERT

It's very hard to identify what kind of balance you need without the original hardware. Many Viking windows like yours have been known to use the Series 395 channel balance, but this is just an educated guess. You may want to see if you have an identical window elsewhere in the house that still has its hardware.

I would also need to know the length of the visible glass and the weight of the sash.

Quick Learner from Mendocino

Oct 16, 2017 3:59 pm

Thanks Tom. It will be a few weeks before I get back to the Home (it

Quick Learner from Mendocino

Oct 23, 2017 6:42 pm

Hi Tom

The glass measures 23

Paul from SWISCO

Oct 26, 2017 12:52 pm

EXPERT

Thanks for the additional info. For your Viking window, we believe you will need our S395-24 channel balance with a spring weight option (2320) for a sash weight range between 9-15 lbs.
