Help with accurately suggesting a replacement channel balance/parts

Question

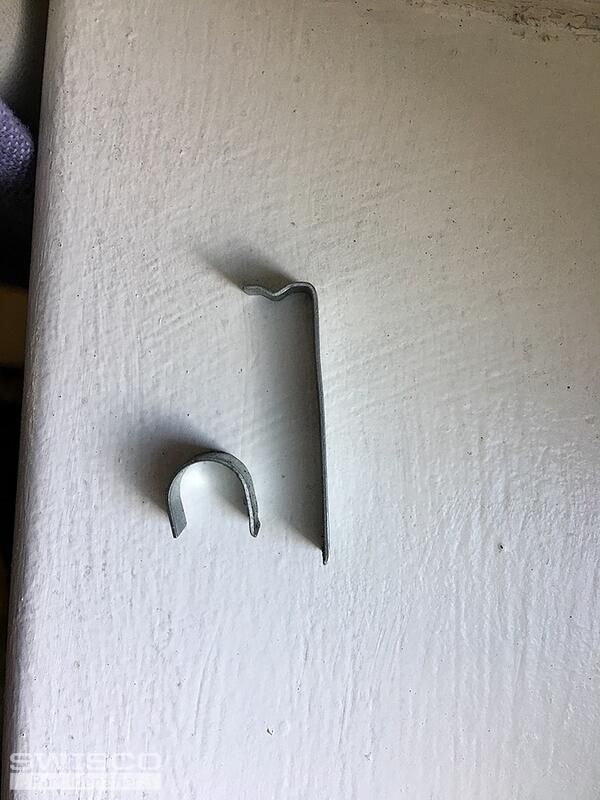

I have a channel balance that broke, along with the "clip". Can you please advise and what I need to purchase for the replacement parts?

The length of the metal channel is 27.1"
The stamp along the side of the channel states: 26-4 KC5 CMC 45

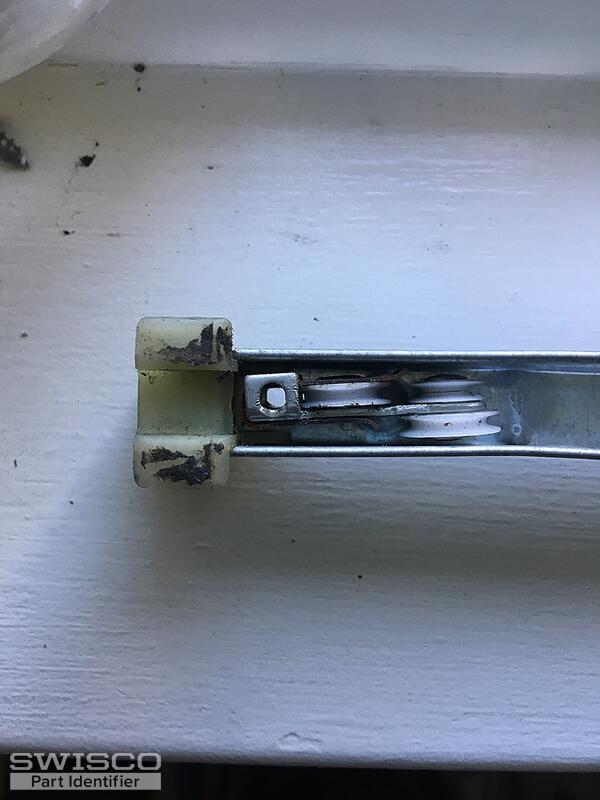

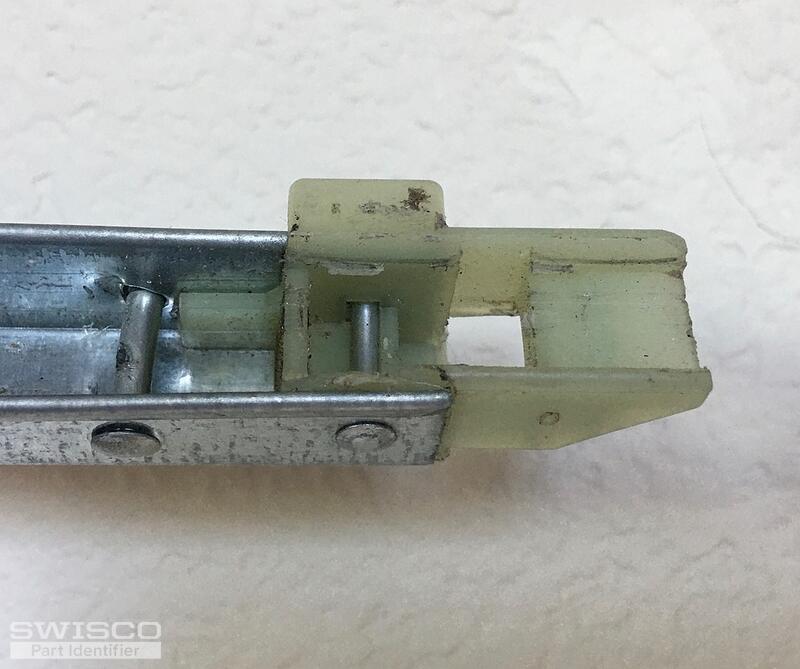

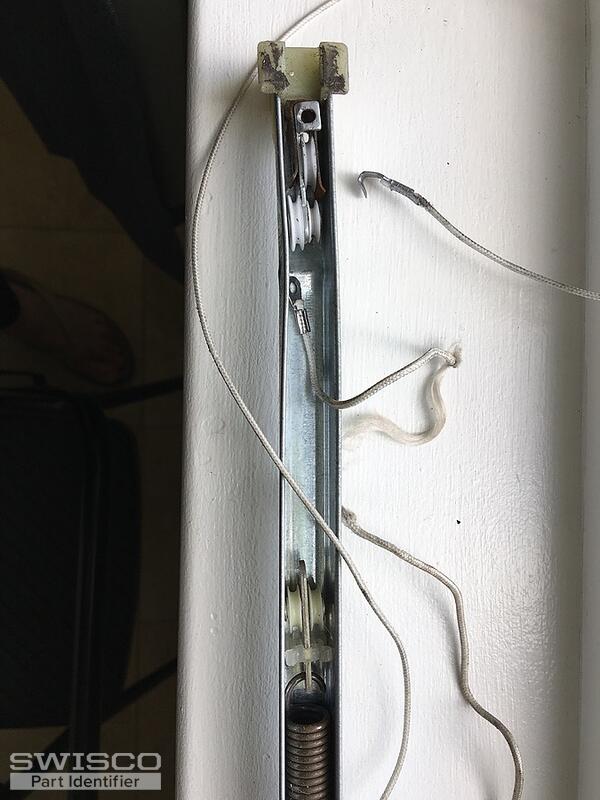

All the pictures showing the details are attached.

Thank you so much for your help!

Tom · Accepted Answer

Certainly! Based on what I see here, you have either our S380-27 or S385-27, depending on the depth of the bottom shoe. That's the only difference between them. I recommend measuring your shoe and referring to our dimensions to confirm the best match.

As for the take out clip, that would be our 16-002.

Comparison of the S378, S380 and S385 balance shoes.

As for the take out clip, that would be our 16-002.

Comparison of the S378, S380 and S385 balance shoes.
