Help with replacement window spring parts.

Home Owner from Maryland
Feb 5, 2024 5:52 pm
Need help getting equivalent replacement parts, I ordered the 15-177 slate blue replacement shoe only to then realize the plastic bushing parts around the spring was a mess too.

Also realized I had some broken t bars also.

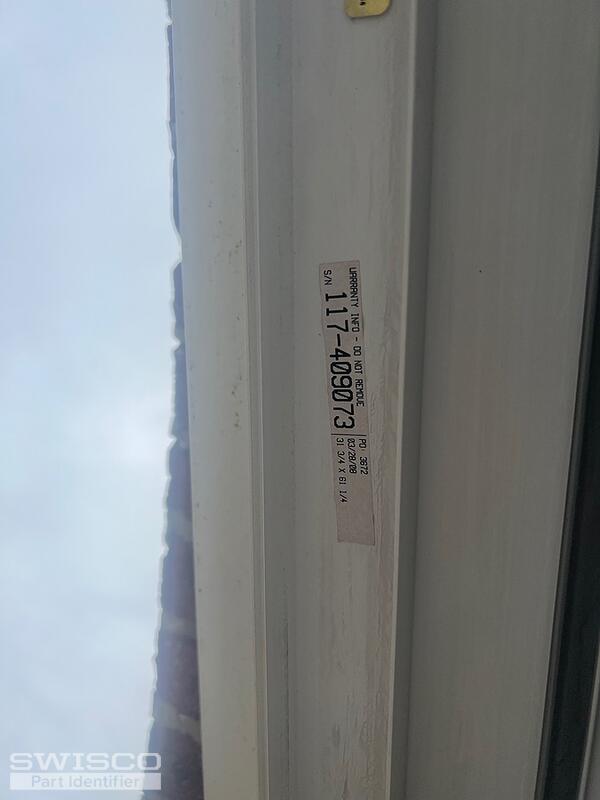

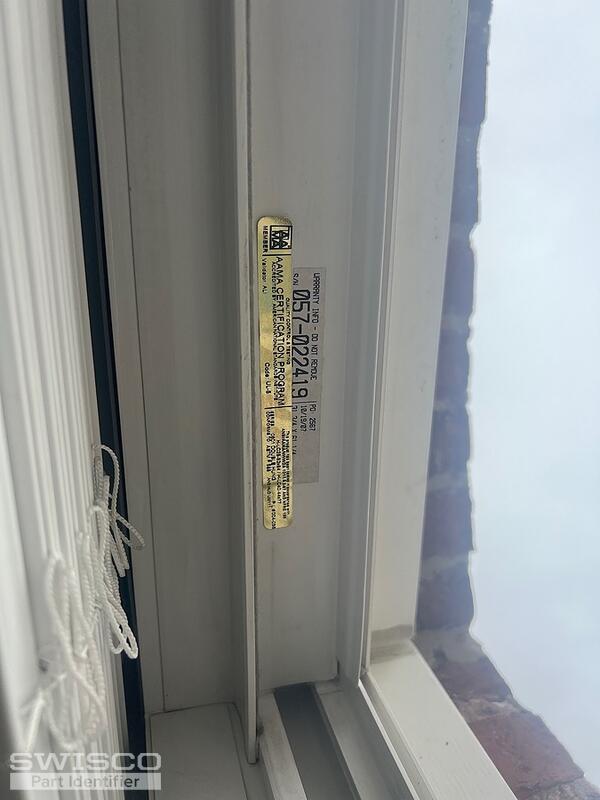

4192D0D9-8551-4497-8E37-42004A678BED 128E1B3F-A9D3-46B2-848D-A7D8E62F1E95 C2EC7639-6860-4AAB-843B-A2FDC3BE1398 6498A6F6-B64F-40A6-B293-AE73FB5DBE07 BD767DDD-DFA5-4007-AB1B-6C6056185D5E
5 user uploaded images
1 Replies
Lauren
Lauren from SWISCO
Feb 6, 2024 12:37 pm
SWISCO
EXPERT

Hello, thank you for posting,

We do not carry your exact pivot bar, but start by reviewing the 26-030, 26-226 or 26-352 to see how the dimensions compare. These bars are compatible with the 15-177 pivot shoe.

For a new cover, please review the 15-143 bushing, 15-144 bushing cap and 15-145 support barrel that are compatible with the Series 152 coil springs.

Let me know if you have any additional questions!
