Hinge?
Quick Learner from Oh
May 27, 2025 3:48 pm
Hello. I have broken the plastic piece that holds the metal In the window jam that you put the bottom of your tilted windows in with the metal post that is on the actual window itself. I have sent pictures. Can you help me identify this or find Fix this?
3 user uploaded images
4 Replies
Jasmine from SWISCO
May 28, 2025 12:20 pm
Thanks for posting! The balance shoe you have is likely to be either the 15-195 closed cam or the 15-195B open cam 1-1/4" T-Lock Balance Shoe. You'll need to find an undamaged shoe to compare them and confirm which of them is the correct replacement.
These are used with the Series 795 Channel Balance.
Dimensions for 15-195
Alternate view of 15-195
Alternate view of 15-195B
Quick Learner from Oh
May 28, 2025 2:10 pm

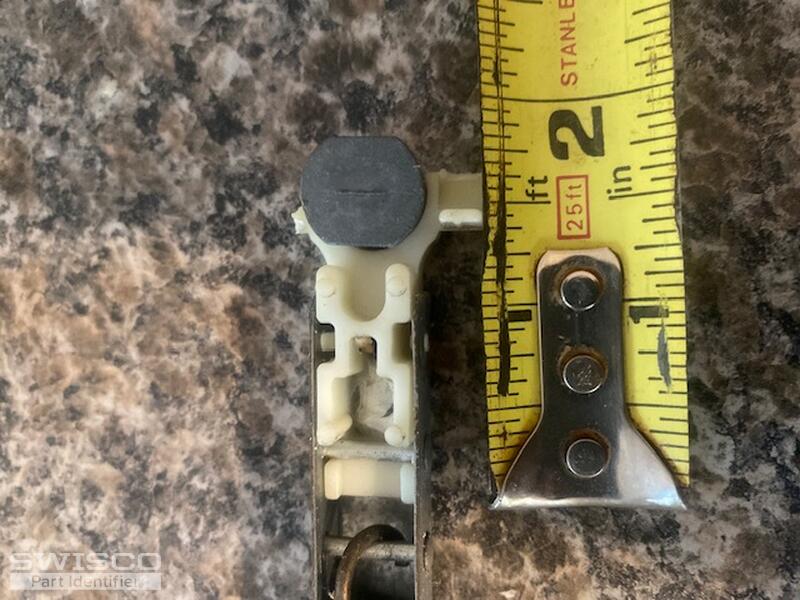

Hello, I bought two of the 15–1 95. I hope I can figure out how to put them in the balances. Attached is a photo of the broken one.
1 user uploaded image
Jasmine from SWISCO
May 28, 2025 3:17 pm
Once you receive the shoes, take a look at the video tutorial below for instructions on how to install them. They are fairly easy to swap out.
