Hole center

A quick learner from Lincoln Neb says:
February 8, 2023

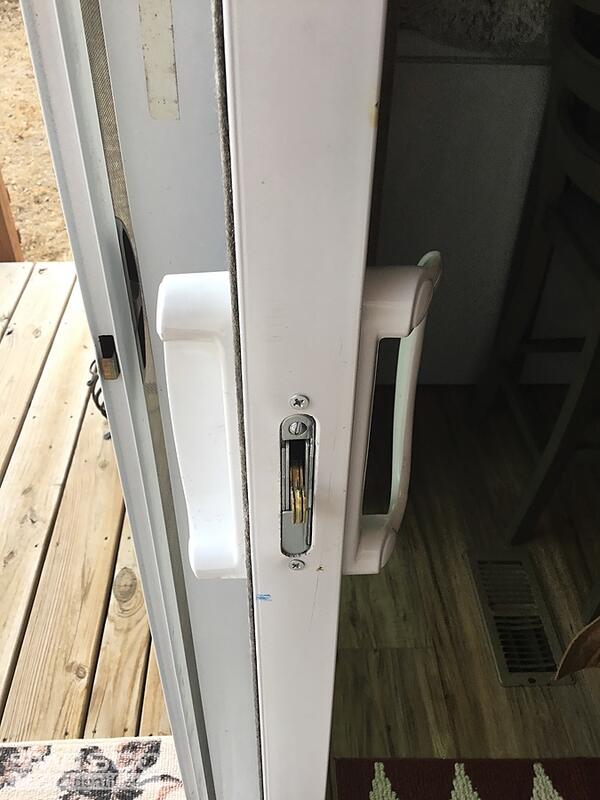

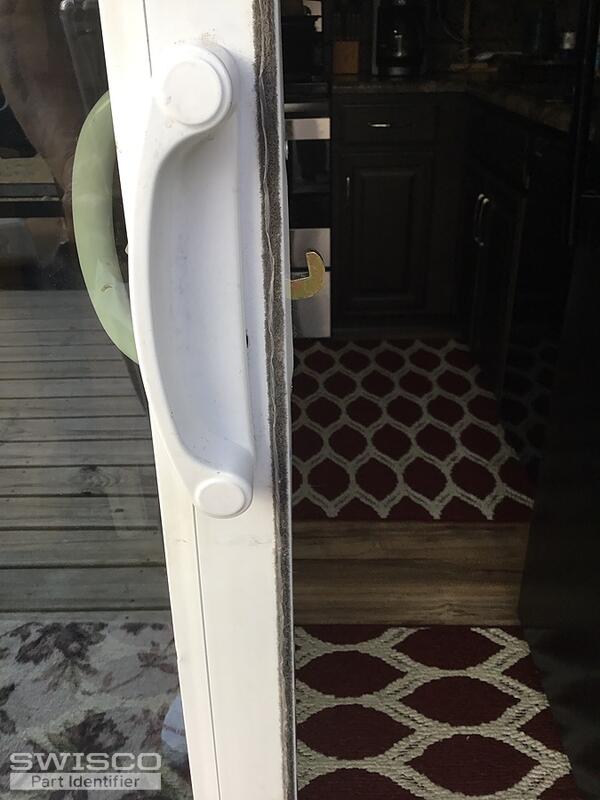

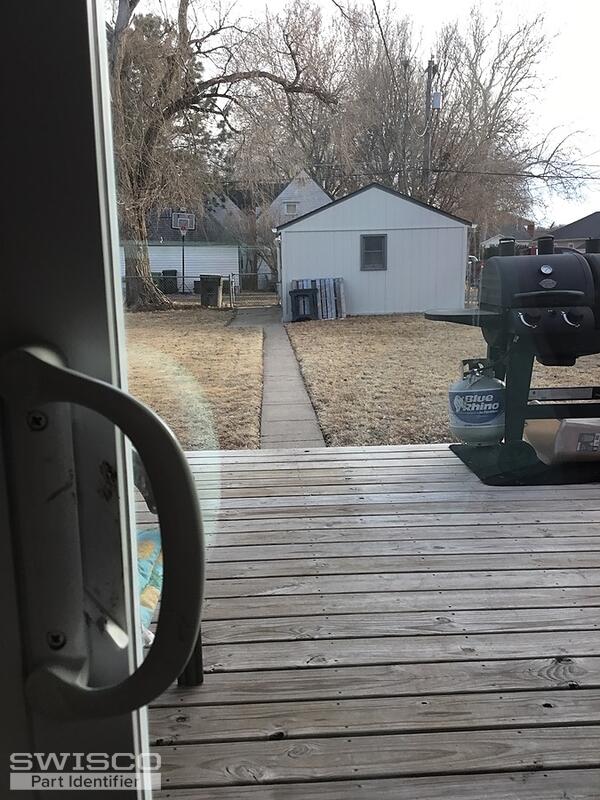

Wanting to change my sliding glass door to key lock assembly unless I'm doing something wrong I measured 4and 1/8 inches do I need to take the handle off to measure the holes I do have a Guardian door ??
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Profile picture of Emily
Emily from SWISCO responded:
February 9, 2023

Hello!

We've never heard of a handle having a hole center spacing of 4-1/8". That's pretty weird. The installation hole center spacing should be 3-15/16" which is very common for this door. If that's the case, you can use the 82-030 handle set and adapt the outside pull to use our 82-310 key lock (sold separately). This blog article here will explain how to do so.
A quick learner from Lincoln Neb says:
February 9, 2023
Thanks for the help I need to order 82-081 should be good I probably measured wrong, I went and remeasured it is 3 and 15/16 inches y'all were a lot of help Thanks Very Much
Profile picture of Emily
Emily from SWISCO responded:
February 9, 2023

You definitely wouldn't want the 82-081. This measures 4-15/16" on installation hole centers. The 82-030 has the 3-15/16" hole center spacing that you need and is our best match for your old hardware.
Keyed Mortise Style Handle Set, 4-15/16"
Keyed Mortise Style Handle Set, 4-15/16"
82-081
$62.05
Sliding Patio Door Handle Set, 3-15/16"
Sliding Patio Door Handle Set, 3-15/16"
82-030
$29.95
Key Lock
Key Lock
82-310
$14.30
