Home Depot 10yr Old Premium Replacement Argon windows.

Start a new Discussion

Quick Learner from New Jersey

Mar 30, 2025 1:55 pm

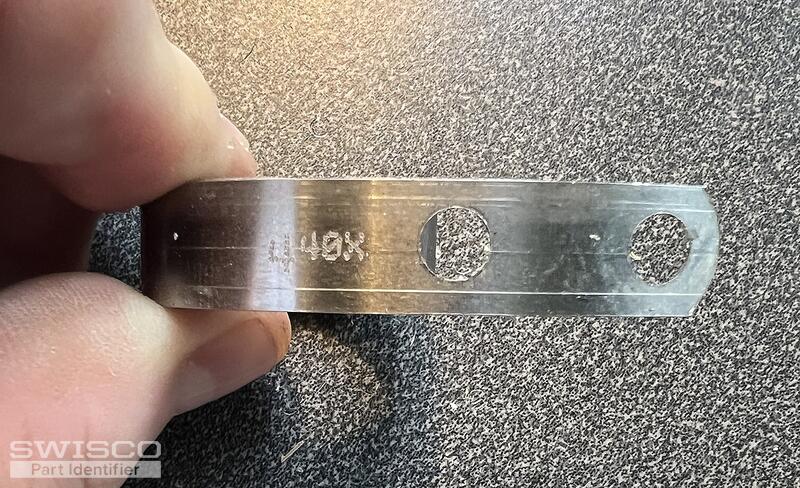

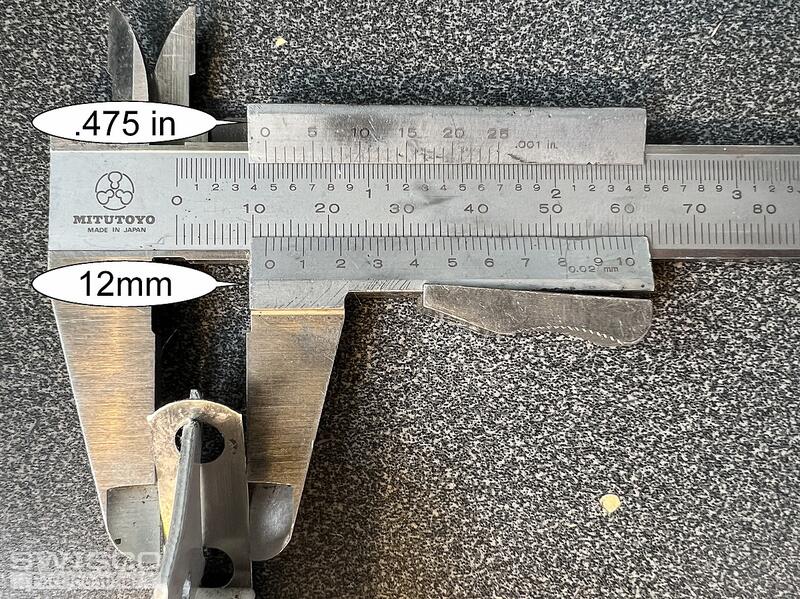

Hello, Need a replacement spring.

5 user uploaded images

4 Replies

Bob from SWISCO

Mar 30, 2025 9:26 pm

Hi there. This looks like a 15-087 Pivot Shoe and 15-086 Tandem Housing, along with a 16-024 Mount Bracket. This system works with Series 180 Coil Balances. A coil spring stamped '4' can be replaced with the S180-04 4 pound spring. Let me know if you have further questions.

Series 180 coil balance diagram

Quick Learner from New Jersey

Mar 30, 2025 10:21 pm

Thank you Bob!
I can't believe how easy you and your company made it for me to repair my window!
Thankks again!
-Tom

Bob from SWISCO

Mar 30, 2025 10:33 pm

Thanks for the kind words, Tom! We are always glad to help. Let us know if you need anything else.
