Thank you all very much for taking a look at my pivot lock shoe and I hope that you can find something that will work.
Hope you can identify or offer a replacement

Quick Learner from USA
Jan 14, 2025 3:04 pm
4 user uploaded images
5 Replies

Home Owner from Etowah Tennessee
Jan 14, 2025 3:20 pm

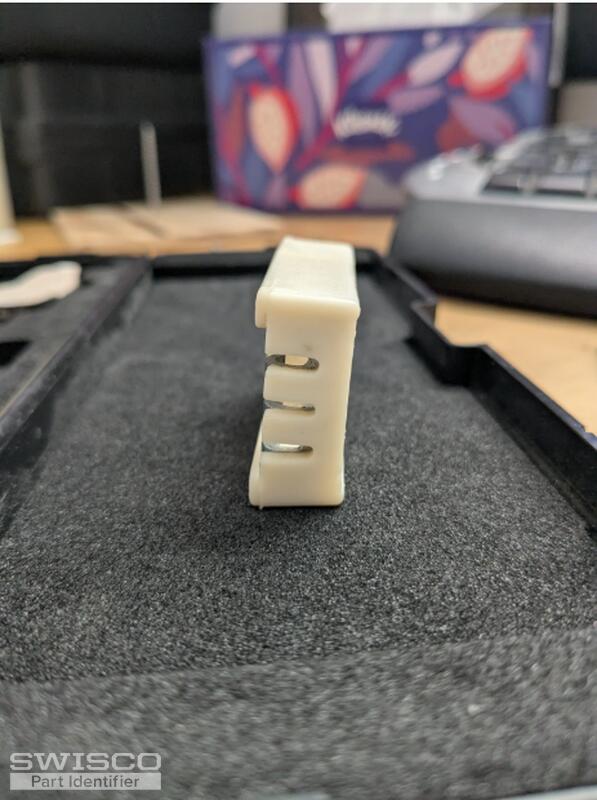

Unknown window manufacturer. Out of business many years ago in East Tennessee region where I live. Ivory colored. 3 parts to the device.1-main rectangular body 1- metal removable insert with 4 metal claw like prongs for attachment of the spring devices 1- removable pivoting white female part for the windown to insert into.
Measurements main body: 35/64" thick, 1-17/64" wide, 2-1/8" tall.
Circular female insert: 21/64" wide by 15/64" tall, "uvula" part hanging down in the insert 1/16" x 1/16"
Measurements main body: 35/64" thick, 1-17/64" wide, 2-1/8" tall.
Circular female insert: 21/64" wide by 15/64" tall, "uvula" part hanging down in the insert 1/16" x 1/16"

Emily from SWISCO
Jan 16, 2025 8:45 am


Hello there!
Thank you for contacting us. We're happy to look into this. Can you show us a photo of the front of the shoe so that we can see the cam style?

Home Owner from Etowah Tennessee
Jan 16, 2025 10:13 am

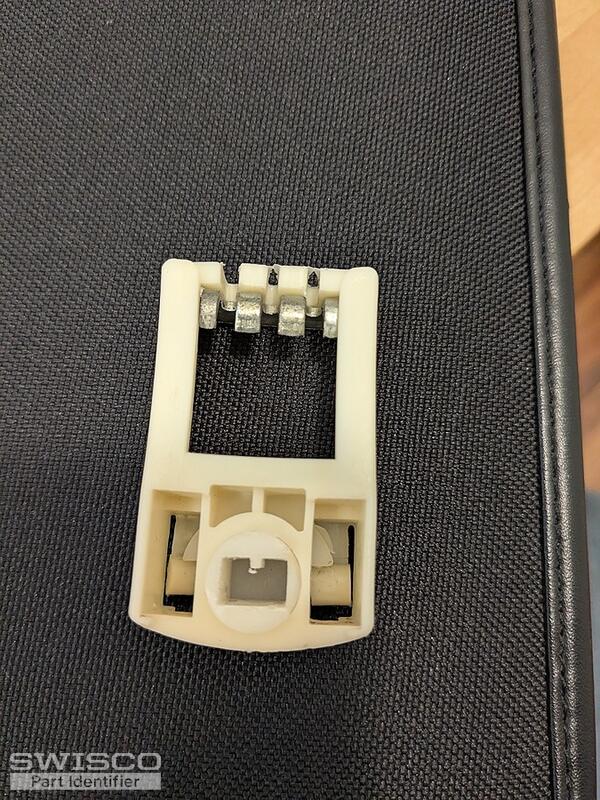

Here's a picture of the front of the shoe
1 user uploaded image

Paul from SWISCO
Jan 16, 2025 11:18 am


Thanks for the additional photo. I'm afraid we don't sell an exact match for this shoe. However, take a look at the 15-046. We believe this is worth considering. Review the specifications and see what you think.

Alternate image for 15-046

Detailed image of the pivot bar slot of the 15-046 pivot shoe.
