Hoping to identify window mfr model to order parts

Handy Person from Santa Rosa CA
Hi =- thanks. Looking forward to fixing my 1987 - era windows.

see label scanned from one of the windows.

Mfr code mg-3

Series 1500
DH-R20

MST 4060
14 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

Unfortunately, we can't identify your manufacturer but if you could show us the parts you need removed from the window, there's a good chance that we can point you in the right direction. Thank you!

Handy Person from Santa Rosa CA

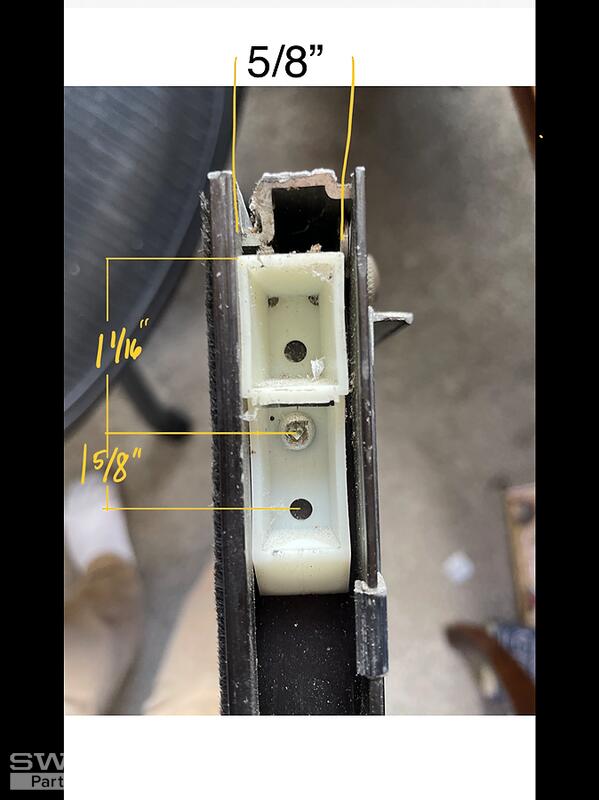

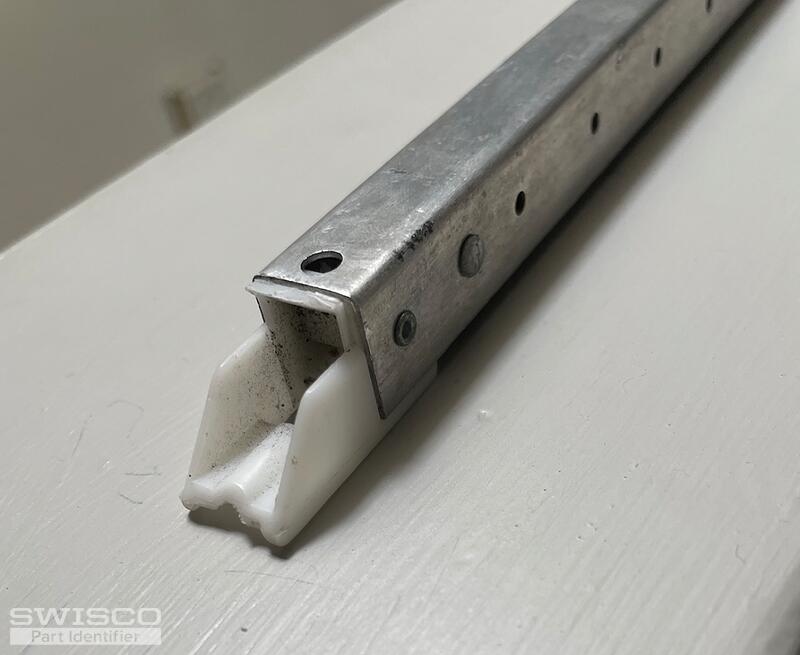

Thank you. Here are photos of the window parts.

in addition to replacement parts I'm also looking for installation manual and videos for install if possible.
5 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

It looks like you have either our S351, with a 15-002 bottom attachment, or S390, with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need. You'll also need to locate the stamp on the metal channel to choose to corresponding spring strength option for your replacement balances.

As for the top sash guide, you can start by comparing the 18-008 or 18-008H to yours. Thank you!



Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
Handy Person from Santa Rosa CA
Thank you.

I measured mine as 1-1/8" so it appears to be S390, with a 15-001

as for the stamp on the metal channel to choose to corresponding spring strength

I see a number 2640 stamped on it?

also - attached is Top Sash photo and measurement.
1 user uploaded image
Casey
Casey from SWISCO
SWISCO
Expert

It sounds like you'll need the S390-27 with a 2640 strength option. As for your guide, the 18-008 looks like our best bet.

Handy Person from Santa Rosa CA
Wow - thanks so much.

Anything else you recommend servicing/replacing as part of this?

for example, are there certain weather strips on the sides or bottom of sash to help keep out cold or insects?
Casey
Casey from SWISCO
SWISCO
Expert

You can see our selection of weatherstripping here but you would need to remove a sample of yours to compare to our inventory. If there are any other parts you need to replace, feel free to show us photos and dimensions.


Handy Person from Santa Rosa CA
Thank you.

What's the best advice to lubricate or treat noisy channel balances?

I have a few that function but are noisy.
Casey
Casey from SWISCO
SWISCO
Expert

For noisy springs we generally recommend silicone spray.

Handy Person from Santa Rosa CA

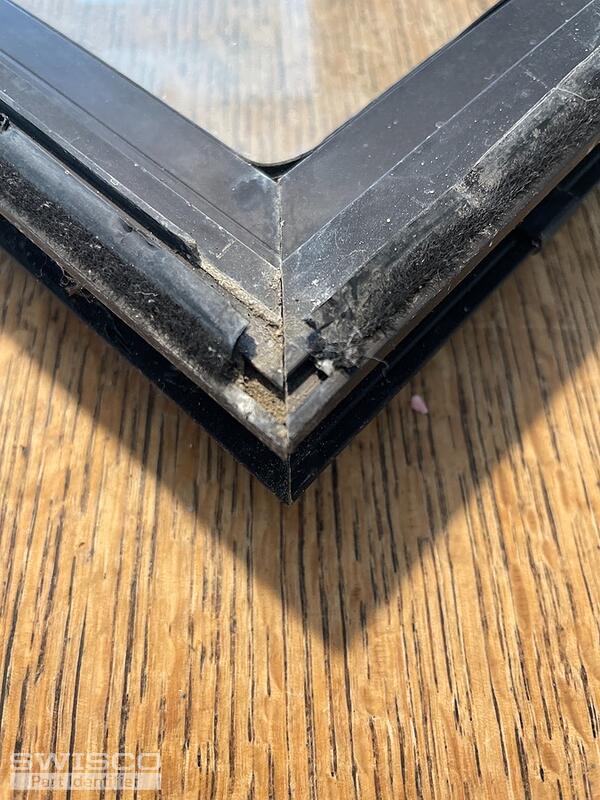

Hi. I watched this video on how to use cut-out method on pike weather stripping but the for corners of my sash are aluminum so I don't know how or if the cutout method will work.

How can I install new pile weatherstripping.
1 user uploaded image
Dave Sr.
Dave Sr. from SWISCO
SWISCO
Expert

Looking at your photo of the window frame, It appears that you have a "take apart" window frame. I would suggest removing the corner screw and pull the frame apart just enough to slide out the old wool pile and install the new pile. Take your time in doing this. You don't want to damage the frame or the glass. Also, if you find out that it is easier to take the frame apart you will need to mark of number the corners so you put the frame back together correctly.

Quick Learner from CA

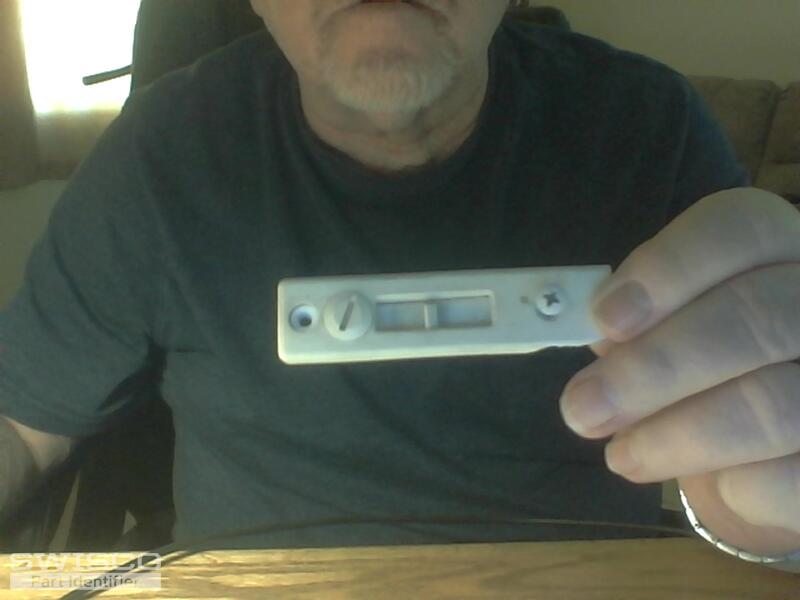

i NEED TO REPLACE THIS PART
1 user uploaded image
Tom
Tom from SWISCO
SWISCO
Expert

This part is called a tilt latch. Yours in particular resembles our 26-194 and 26-193, but you should carefully review our dimensions to verify that they are all in alignment.

Detail of 26-194
Detail of 26-194
