How can I identify my pivot shoes?

Home Owner from Grayson, GA
How do know which exact Pivot shoes I need? I need to purchase some so that I can fix my window ASAP.
8 Replies
Tom
Tom from SWISCO
SWISCO
Expert
Thanks for posting! The best way to determine what pivot shoes you need is to compare what you currently have installed to the hardware we feature in our Tilt-Window Replacement Pivot Shoe Section and see what matches up.

If you're having trouble, you can take a few pictures of your pivot shoe and upload them here for us to see and we can take it from there. Keep in mind, however, that we will need to see the pivot shoe removed from the window in order to accurately identify it. You can see the video below for the best method of removing the shoe from the jamb. We would also need to know its width and thickness.
Home Owner from Grayson, GA
there is a number on the pivot shoe. The number is 4610108 - The measurement is 2 inches in height, 1 1/4 inch wide, and 1/2 inch depth/thickness

I have attached some pictures below.

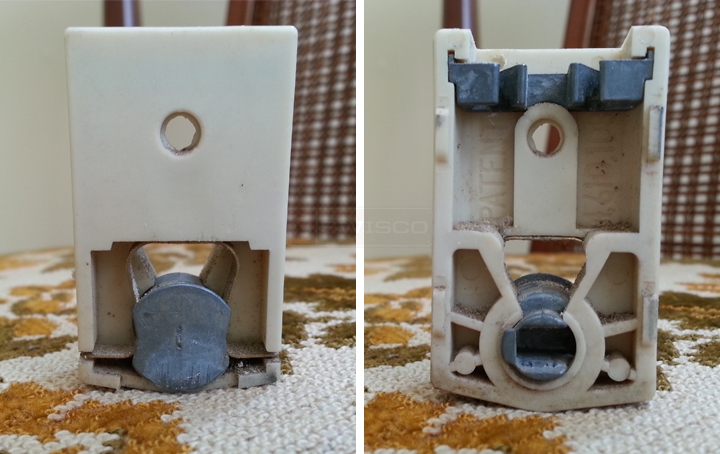

User submitted photos of a pivot shoe.
Casey
Casey from SWISCO
SWISCO
Expert
Thanks for the images! That's a big help.

Now, what you have looks similar to our 15-129, but that measures 9/16" deep so I'm not sure if that's what you want to go with. Our 15-135 looks a little different, but it measures 1/2" deep and will work in the same way. What do you think about that?
Home Owner from Lewisville NC
Trying to figure out which pivot shoe lock to Order. Please. Advise. Thanks

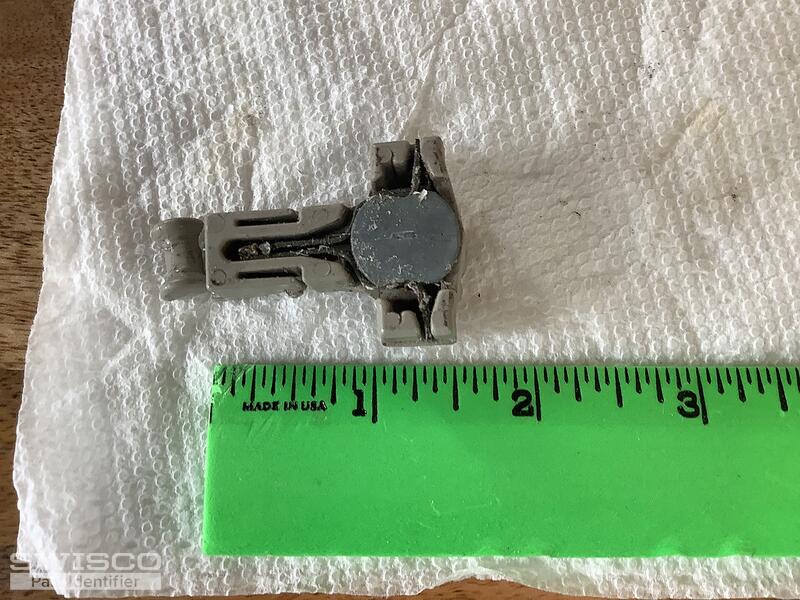

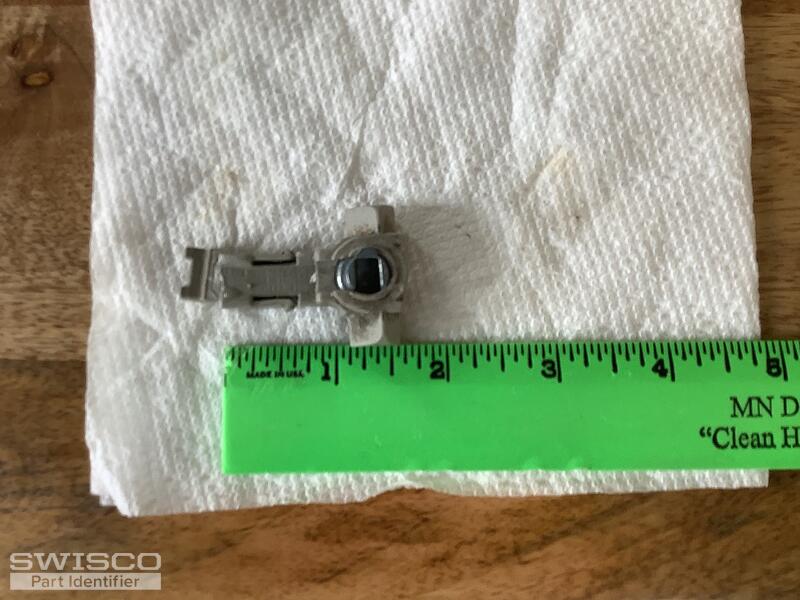

3 user uploaded images
Tom
Tom from SWISCO
SWISCO
Expert

Your shoe appears to be a match for our 15-229, with the black brake pad. Look it over and see what you think.

Dimensions for 15-229
Dimensions for 15-229

Quick Learner from Minnesota
Do you have a replacement balance shoe closed cam for one in pictures below?

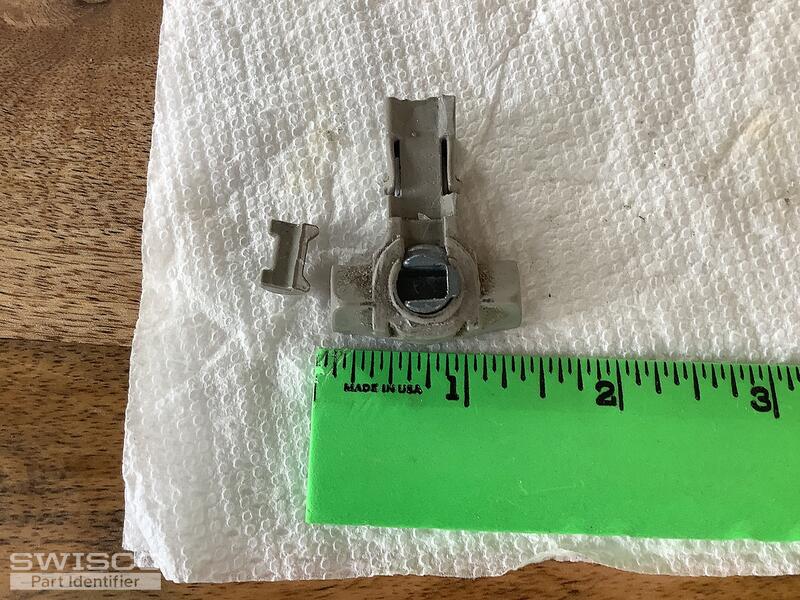

3 user uploaded images
Tom
Tom from SWISCO
SWISCO
Expert

Hello! This shoe appears to be similar to the one posted above, but with a deep groove in the stem. With that in mind I'd suggest our 15-236. I think this may be just what you're looking for.

Dimensions for 15-236
Dimensions for 15-236
