How to measure pivot shoe

Question

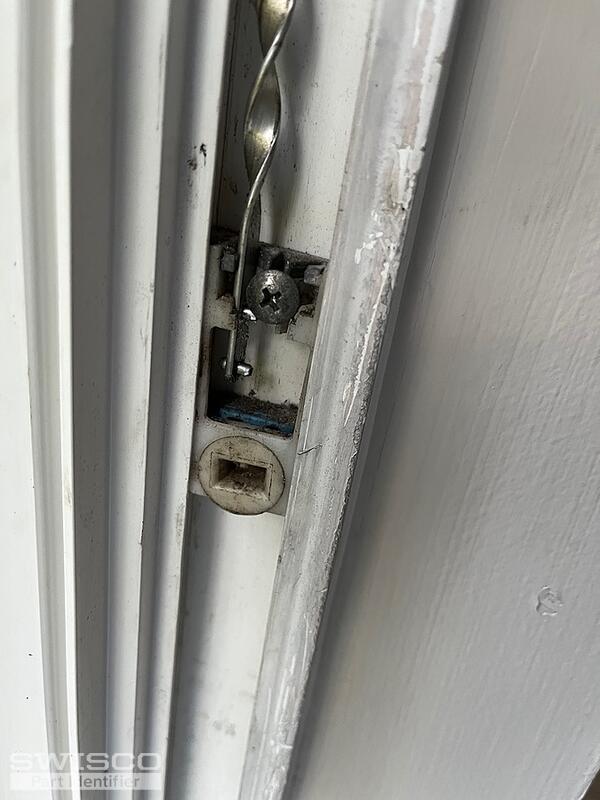

My spiral is 28" with orange cap 5/8 thick. Need accompany pivot shor. Bottom sash only tilts.

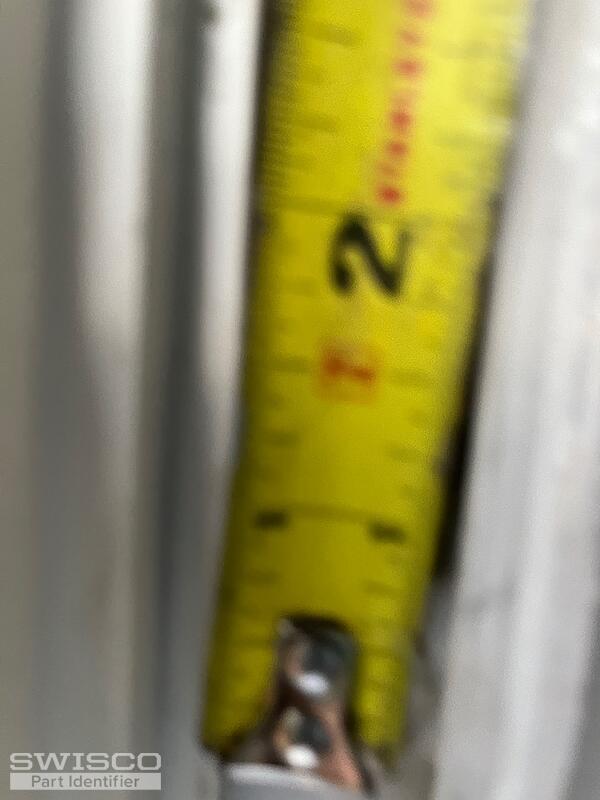

Height 2 1/8"

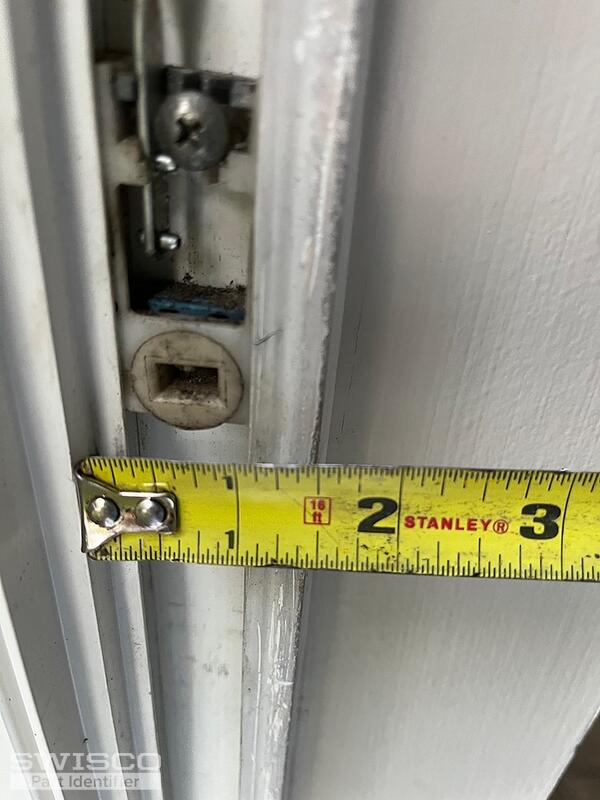

Width 1 1/4

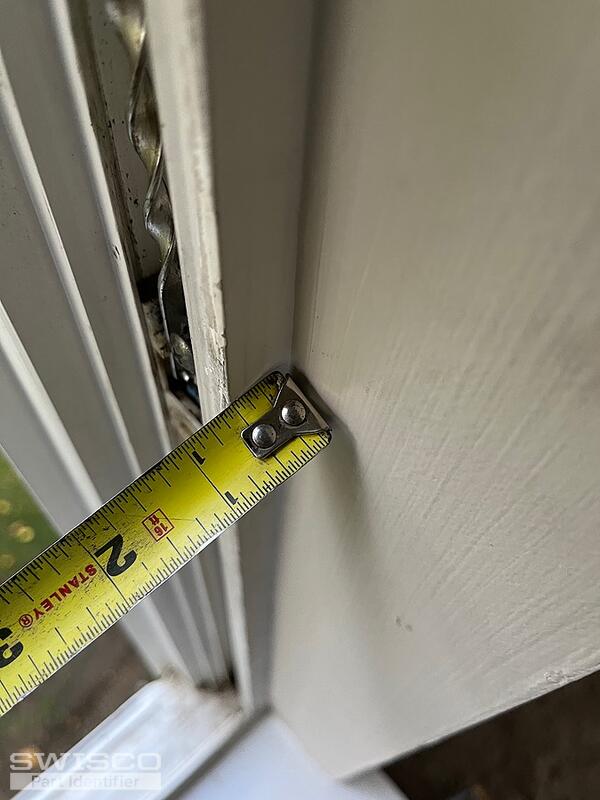

Thickens. 1/2"

Tom · Accepted Answer

Hello! My recommendation for the spiral balance would be the S600-28. For the pivot shoe, see our 15-046. our dimensions all seem to match yours precisely, aside from length, but that doesn't matter that much.

Alternate image for 15-046
