Hurd casement window parts

Handy Person from Santa Fe, NM

Jul 20, 2025 12:11 am

I have two Hurd Casement windows and both crank assemblies are stripped. The window frames are wood. I am attempting to remove the crank mechanism from the frame. I've been using an offset screw driver and have successfully removed two screws from the front of the opening but I am not able to access the two screws behind them because I can't get the offset screw driver inside position. Do yo have any advice?

12 Replies

Tom from SWISCO

Jul 25, 2025 9:39 am

It's very possible that you need to pry off the wood sill trim in order to access the screws. The sill trim is made wide on a lot of different wood windows, so it's not possible to get to the screws without removing it first.

Handy Person from Santa Fe, NM

Jul 25, 2025 10:52 am

Thank you Tom. That's a distinct possibility. Have you tried doing that? I will explore doing that . I even had the idea of drilling holes into the wood frame the exact size of the screw heads, unscrew the mechanism that way, then later fill the hole in with a piece of dowel or wood filler.

Tom from SWISCO

Jul 25, 2025 1:24 pm

Sure, it's fairly common on wood windows. You can se how we do it on a similar window that uses Truth brand parts.

Handy Person from Santa Fe, NM

Jul 25, 2025 7:25 pm

Nice video. I'm going to follow these directions and hopefully it will work. Thanks!

Handy Person from Santa Fe, NM

Jul 28, 2025 5:32 pm

Hi Tom, I was able to remove the crank mechanisms from my Hurd windows. Thank you. What do I need to do to order new cranks?

Handy Person from Santa Fe, NM

Jul 28, 2025 7:14 pm

I've removed the two inoperative crank mechanisms from the two windows. They are numbered 7701 & 7702. What do I need to do to order new parts?

Tom from SWISCO

Jul 29, 2025 9:48 am

I'm not sure what you have, but I'd be happy to look into it for you. The best place to start is with photos of the complete operator assembly without obstruction. I can then check our inventory for a match.

Handy Person from Santa Fe, NM

Jul 29, 2025 2:40 pm

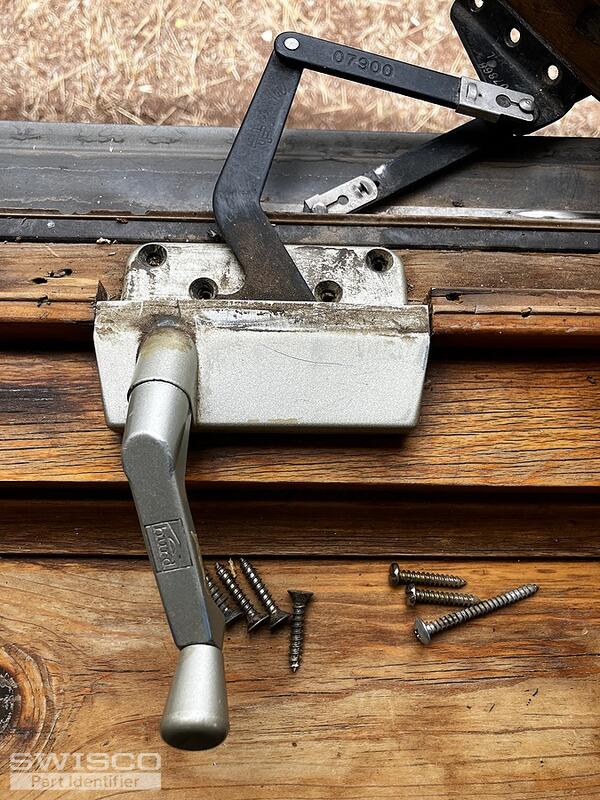

I hope this works!

4 user uploaded images

Tom from SWISCO

Jul 30, 2025 9:01 am

Thanks! I do recognize this operator and believe that you can use our 39-317 as a replacement. Just make sure to review the arm sizes just to be safe. We also sell the 39-318 for the opposite side and the 39-250 handle, which is compatible with both.

Alternate image for 39-317

Handy Person from Santa Fe, NM

Jul 30, 2025 9:10 am

Thank you Tom. You've been a great help. I will check those arm measurements this morning. Hopefully it's a fit.

Handy Person from Santa Fe, NM

Jul 30, 2025 11:46 am

Hi Tom, my measurements match the ones in your photo. So I will order these parts. Thank you for your help.
