Tom from SWISCO responded:
September 19, 2022

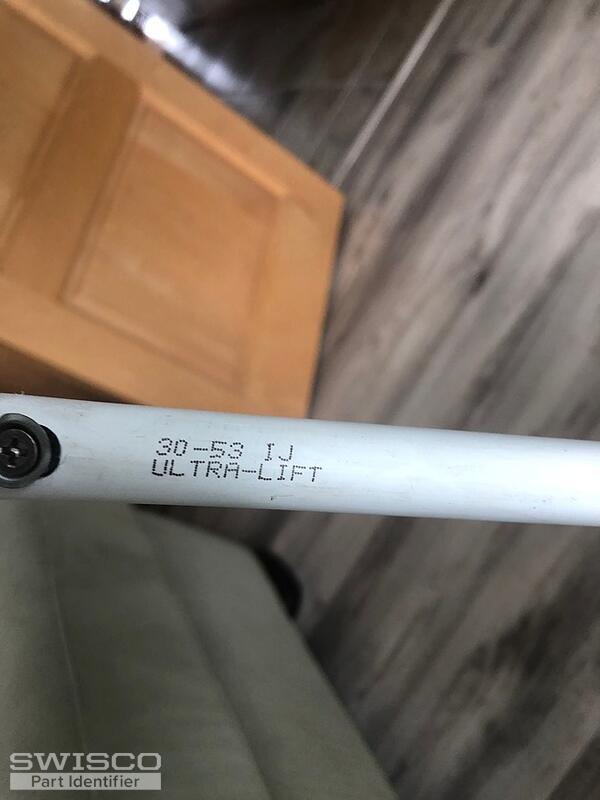

Hello! This marking should be more than sufficient. This is a match for one of our Hybrid balances. We can supply it, but it will have to be a custom order since it's not a stock configuration. What I can do is email you a purchase link and price quote right now that will allow you to add 10 of these to your cart. You can then checkout as normal. Just a couple things to note: the length of the tube should be 30-1/2" and the sash weight should be 53 pounds. You may want to check those details to verify but assuming that your stamp is accurate then they should all match up. We also offer volume pricing for this balance starting at 10. If you were to order any fewer in the future, the price per balance will go up. Just something to keep in mind. |
|
|
Tom from SWISCO responded:
September 20, 2022
The lead time on these balances is approximately 5-6 business weeks. As for an attachment piece, these are always sold separately. The most common bracket I've seen is the 17-083 but there are other possibilities. You'll have to check the original. You can also just reuse the original, assuming it's not damaged. |
|
|
Tom from SWISCO responded:
September 27, 2022
Sure thing! I'll email that out to you right now. |
|
|
Tom from SWISCO responded:
October 13, 2022

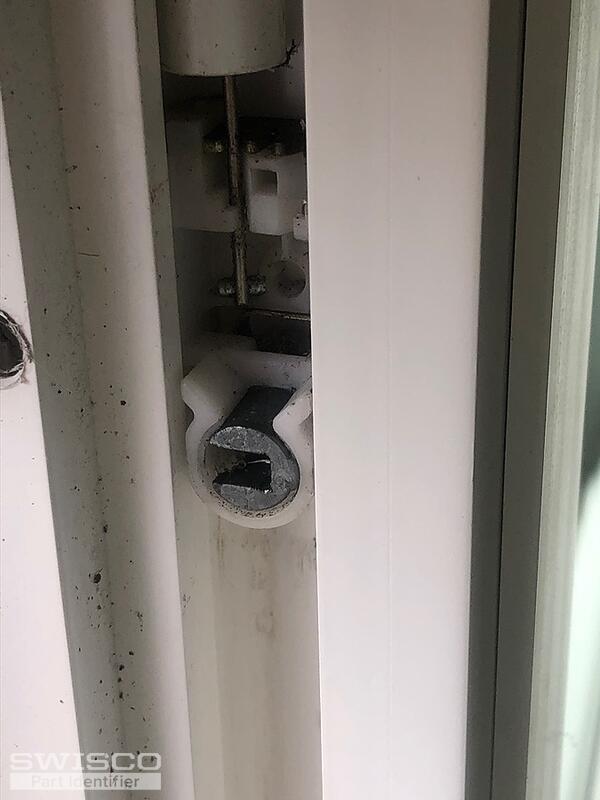

Hello! I'm happy to hear that your condo survived the weather down there. Looks like you have a pivot shoe and lock mechanism here. I'm very confident we have both. For the pivot shoe, see our 15-048 . The design looks very close at first glance but you should still review our dimensions to verify that they all match up. There are other possibilities, in case this isn't a fit, so just let me know and we can pursue other options.
Alternate image for 15-048

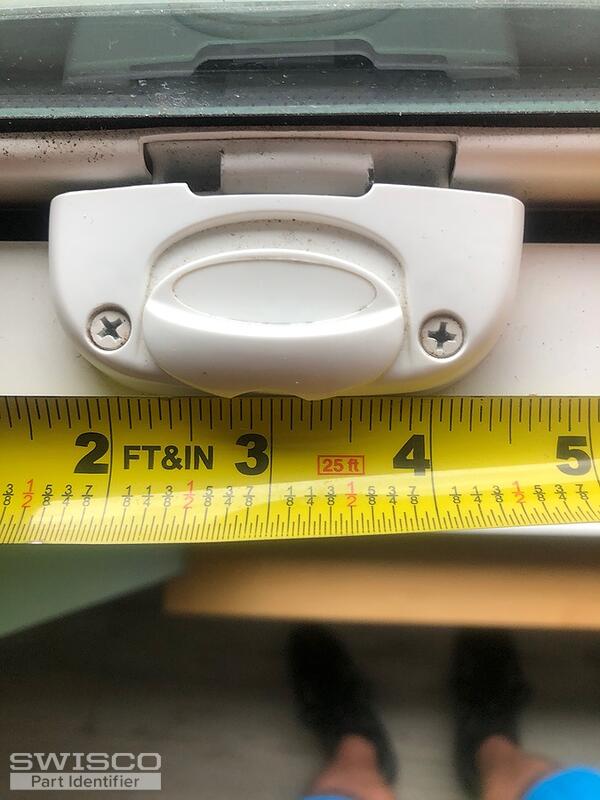

For the lock, this is comprised of two components: the mechanism and the cover. See our 90-252 and 90-253 , respectively. Please let me know if you had any other questions and I would be happy to assist you!
Alternate view of 90-252
|
