I can't find a replacement handle and lock

Handy Person from SAVANNAH, GA

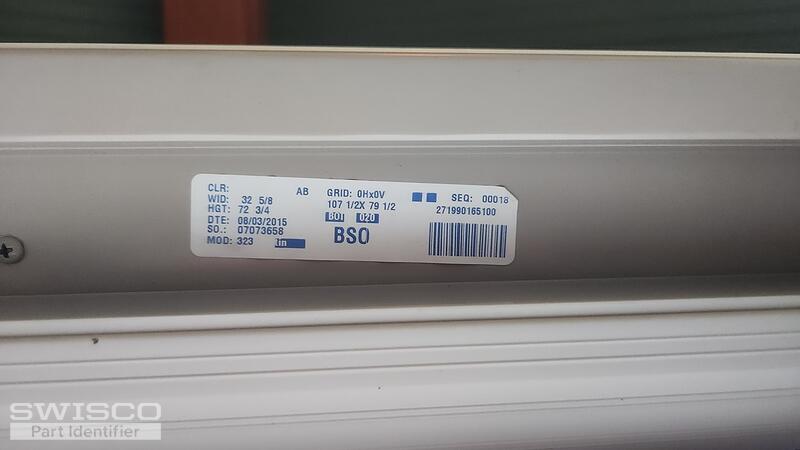

We have this sliding door in our house and i cant figure out the manufacturer to get replacement parts. The handle recently broke and we have tried lowes and home depot with 0 luck. The color match is also a huge issue. From the stickers on the door we capture ALI ADW-8 ASTM 2190.
5 user uploaded images
2 Replies
Bob
Bob from SWISCO
SWISCO
Expert

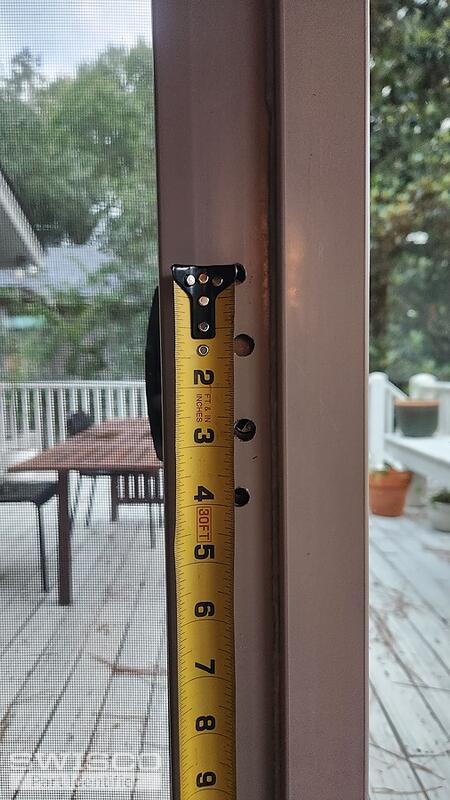

Thanks for posting. While I'm afraid I can't cross-reference that code to specific parts, based on how your old hardware works, I'm confident we have replacements for you. The handle set looks like it has 3-15/16" hole spacing and a thumb lever and keylock in an 'offset' position (that is to say, where the thumb lever and keylock are closer to the bottom of the handle set rather than perfectly centered). If so, see our 82-086. The mortise lock looks similar to our 82-265. For a new keeper that works with this mortise lock, see our 82-249. Please review all the dimensions listed below to ensure these parts match what you need.

Dimensions for 82-086
Dimensions for 82-086
Alternate image for 82-239
Alternate image for 82-239
Alternate image for 82-265
Alternate image for 82-265
