I have mastic windows

Quick Learner from Connecticuit

Feb 7, 2022 9:14 pm

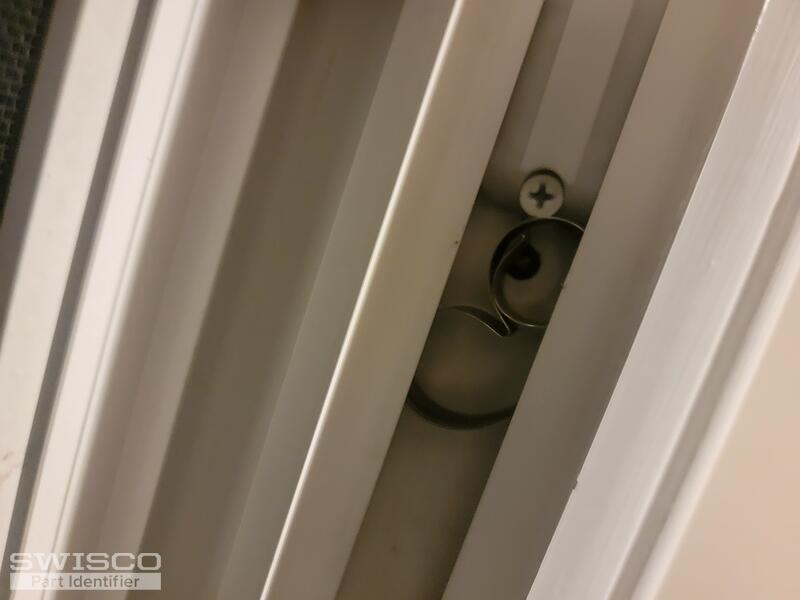

Hi , can you please help me identify these locks o need 2 for one window. Also need all the stuff in the track that keeps the window balanced. The pictures are from a complete window that is the same

4 user uploaded images

4 Replies

Casey from SWISCO

Feb 9, 2022 1:59 pm

Hello,

You can start by carefully comparing the dimensions of the 90-278 sash lock to yours. As for your coil balances, there is a good chance we'll be able to replace them but we would need to see the pivot shoe and coil springs removed from the window to compare to our inventory. Thank you!

Quick Learner from Connecticuit

Feb 9, 2022 6:44 pm

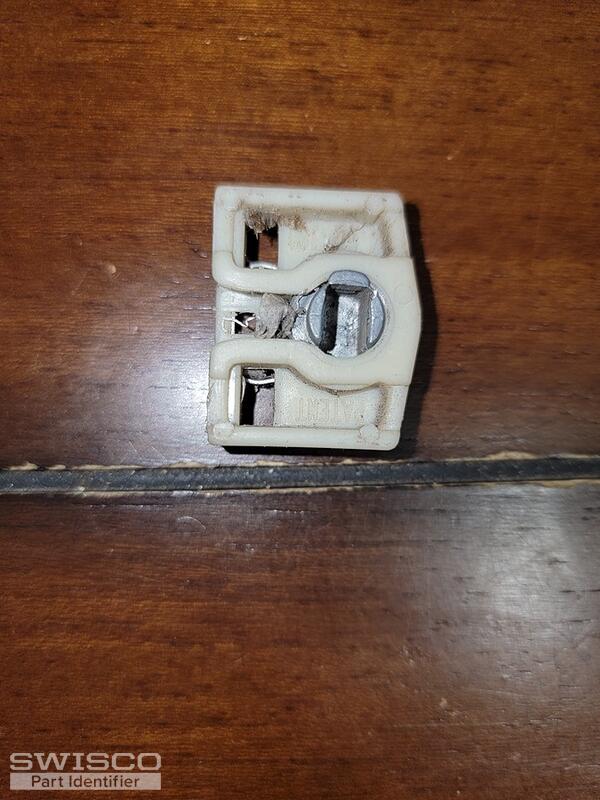

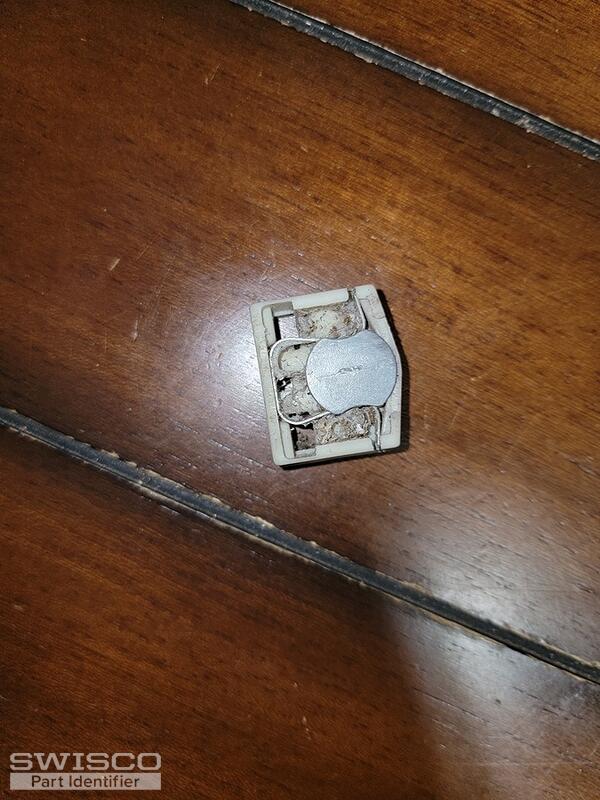

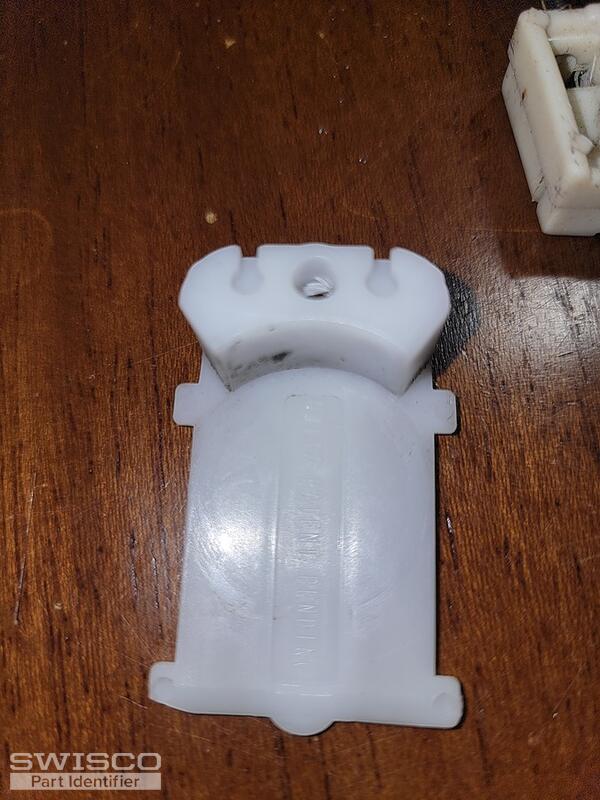

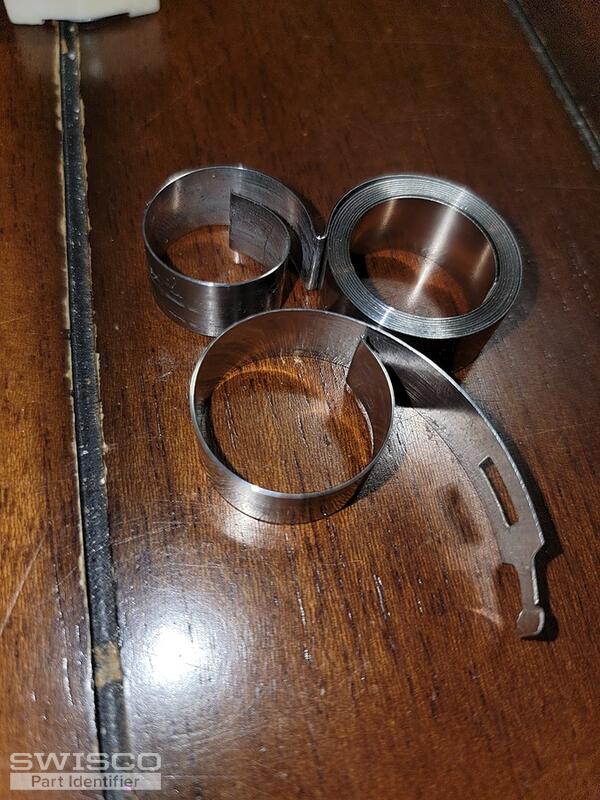

Hi Casey here are the pictures of the spring I need , the pivot shoe , and the bracket that holds the spring. Thanks for your help

4 user uploaded images

Casey from SWISCO

Feb 10, 2022 8:03 am

Take a look and compare our 15-111 pivot shoe, which uses the Series 160 coil spring and 15-150D double support. Just note that the Series 160 spring is 1/2" thick. Thank you!
