I need a new locking mechanism but don't have the lock

Home Owner from Southern California

Feb 19, 2020 2:35 pm

It is from a window master sliding glass door purchased from Home Depot in 2003 the door handle space in the screws are 4 inches perhaps 3 15/16 Apart. Thank you for your help, Mark

1 user uploaded image

6 Replies

Tom from SWISCO

Feb 20, 2020 12:42 pm

Hey, Mark. This looks like the face plate to a double-hook mortise lock like our 82-265. This may even be what you have, but I can't say for sure without seeing the original, which you say is missing. At this point, this is probably our best option, but there are no guarantees.

Home Owner from Southern California

Feb 21, 2020 12:36 am

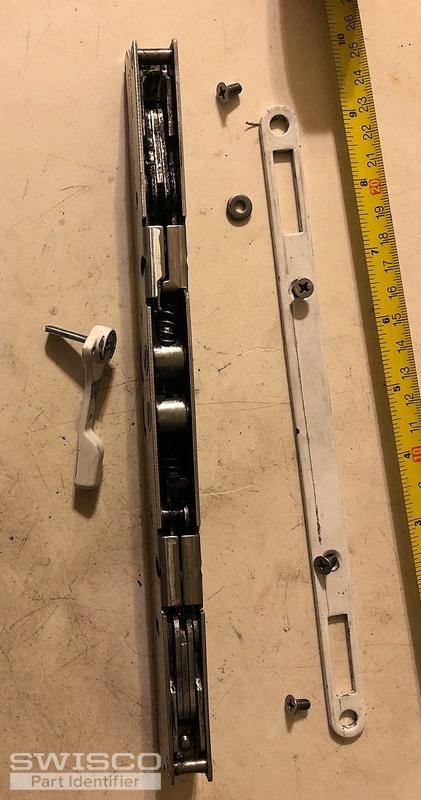

I found the locking mechanism.Does it look like I have all the parts? Let me know if you have trouble Seeing the pictures. I hope this helps. Thank you, Mark

4 user uploaded images

Tom from SWISCO

Feb 21, 2020 9:04 am

Thanks for getting back to us, Mark. That mortise sure does look an awful lot like our 82-265. Have you looked that over yet? I highly recommend it. It looks to be our best match. As long as all of our dimensions match up then you should be good to go.

Home Owner from Southern California

Feb 21, 2020 12:27 pm

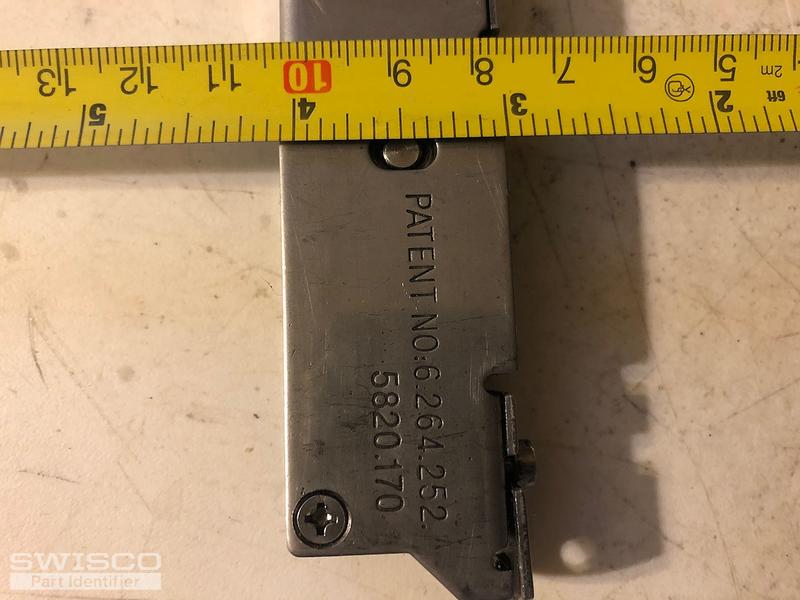

The overall length on the 82-65 is 11 and three-quarter inches. The Hole to hole length is 11 inches. On my lock the overall length is 10 inches the width of the unit is a half inch and the thickness is 1 inch. Does the Patton ID number tell you anything? Thanks for your help Tom.

Dave Sr. from SWISCO

Feb 24, 2020 2:40 pm

I think you're measuring just the mortise itself. The 82-265 measurements take into account the face plate, as well, which you show in your first batch of photos. If you just wanted the mortise by itself and to reuse your old face plate, see our 82-239. This may be what you're looking for.
