I need help

Handy Person from Irvine
Please tell me which one should I order.
3 user uploaded images
2 Replies
Bob
Bob from SWISCO
SWISCO
Expert

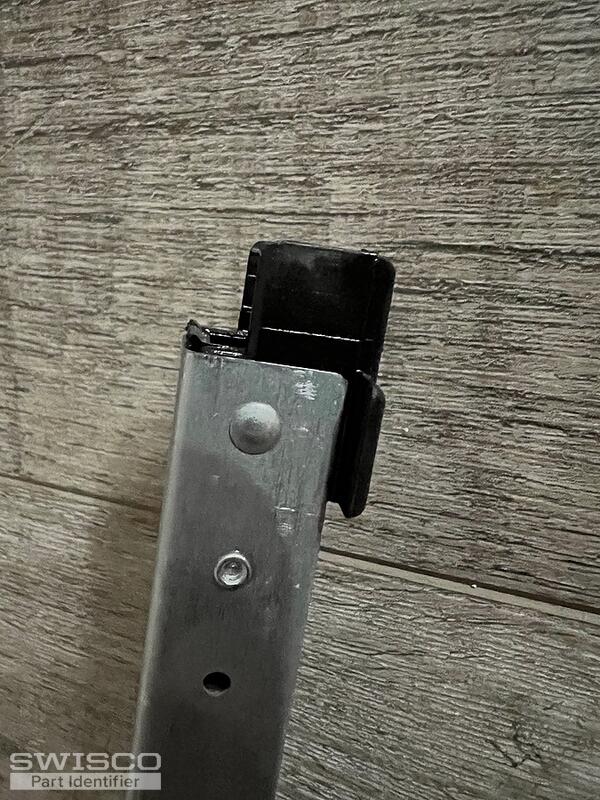

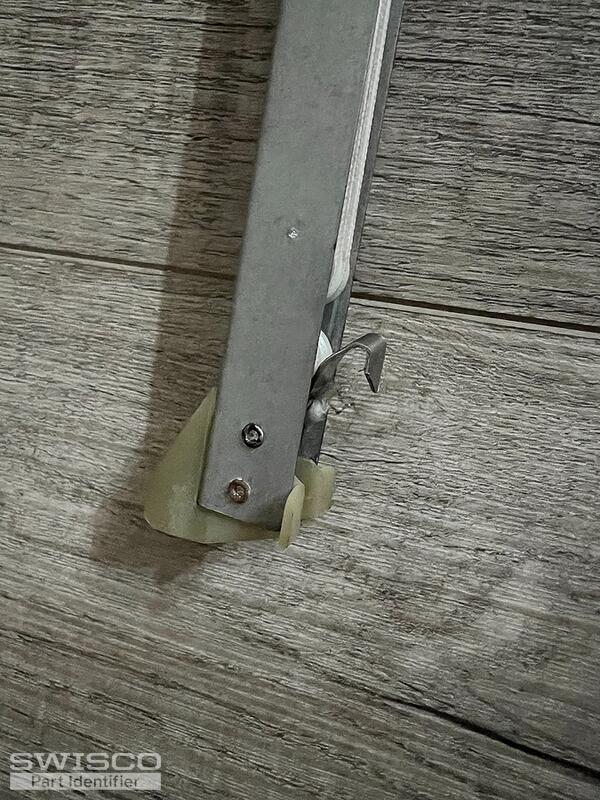

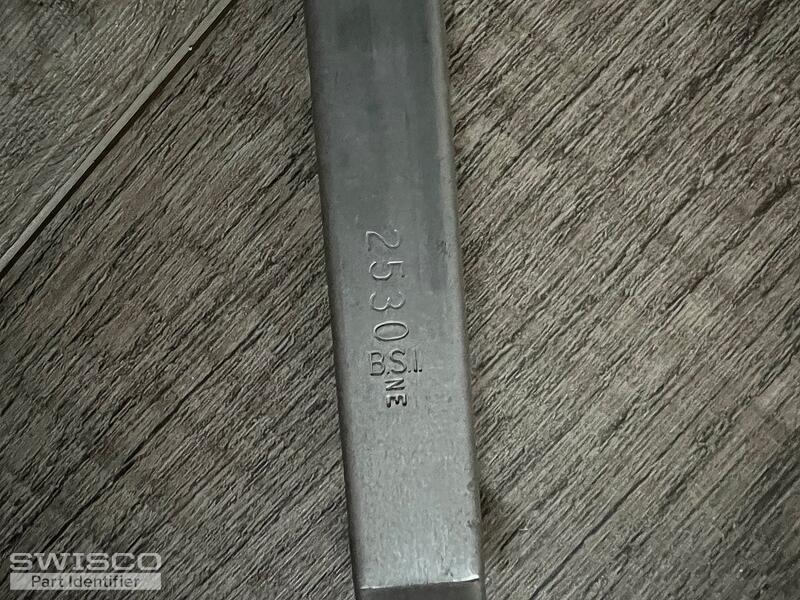

Thanks for posting. Assuming the metal channel, not including the nylon fittings at either end, is 26" long, then you have either our S380-26 or S385-26 Channel Balance. Your top fitting may appear different, but I suspect its dimensionally identical with the fitting that comes attached to the top of these two balances, our 19-005. If you are uncertain you can send a few extra pictures of the top fitting to be safe. Now, the question comes down to whether you need the Series 380 or Series 385. The only difference between these two balance Series is the depth of the bottom nylon shoe, or the 'heel-to-toe' measurement. See the second image below for reference. Compare both with your old balances to determine which you need. Finally, in either case, for a stamp option, choose 2530.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
