need pivot bar and pivot shoe for S770 series tilt window balance 35C ,35B,35A and 29C

A quick learner from United States says:
Please help me to find correct pivot bar and pivot shoe (part no. 15-129 was little wider) for my S770 tilt window with plain balance 35C,35A,35B and 29C.

I attached pictures and measurement of pivot bar here in this email .Earlier I sent you an email inquiry refrence no.7523124

Thanks,
Vijay

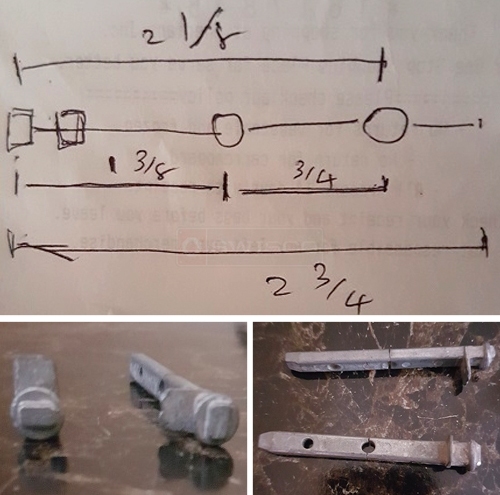

User submitted photos of a pivot bar.
Profile picture of Paul
Paul from SWISCO responded:

Sure, hopefully we can help. our 26-316 comes to mind right off the bat, where the first hole is 1-3/16" from the tip and the second hole is 1-7/8" from the tip. We also have the 26-226, where the first hole is 1-3/8" and the second is 2-3/8". See if you could get either of these to work.

For the pivot shoes, it will also come down to size. The most important measurements are the depth and width. See our 15-135, which is 1/2" deep and 1-1/4" wide.
