handle for sliding door

Contractor from Utah

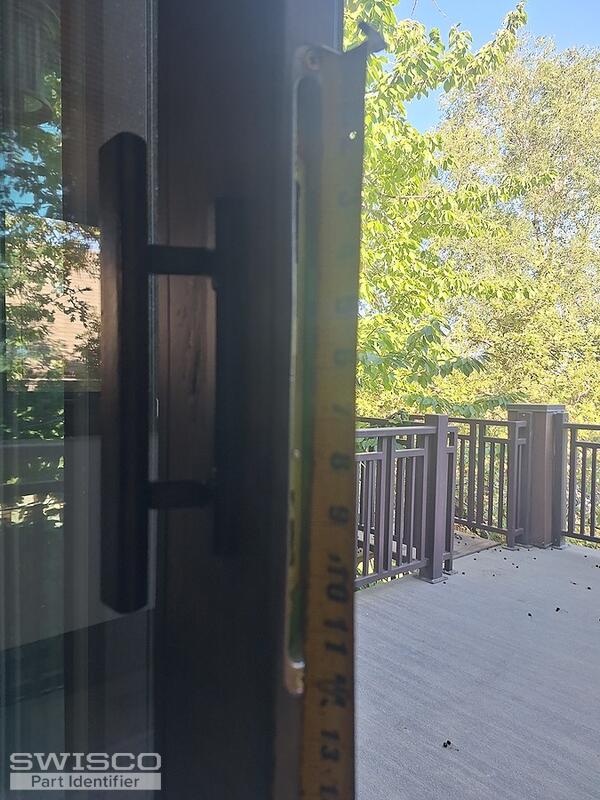

Need to find a dark wood handle for this door.

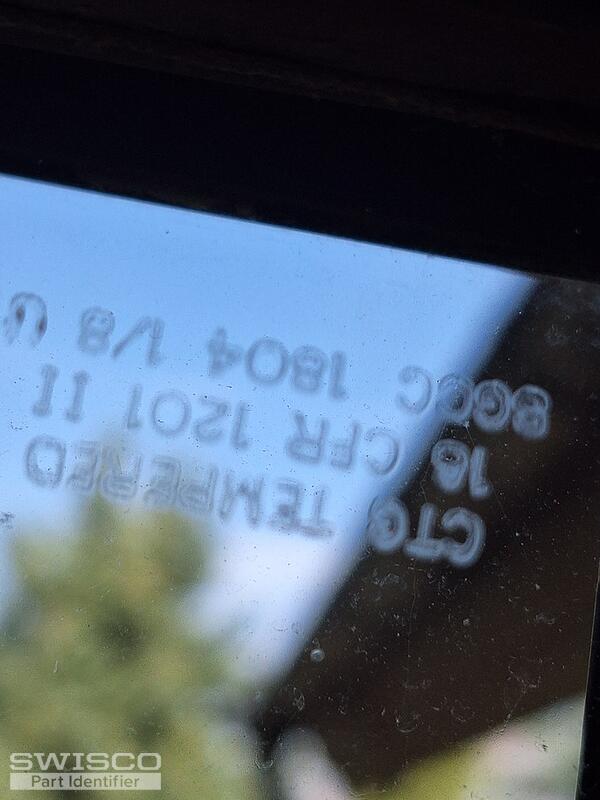

2 user uploaded images
4 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

Your mortise lock resembles the 82-260 depending on how the dimensions and hook orientation below compare to yours.

Alternate image for 82-260
Alternate image for 82-260

Alternate view of 82-260
Alternate view of 82-260

As for the handle set, take a look and compare the specifications of the 3-15/16" hole spacing of the 82-020 to yours. We also offer the new-style 82-030. Take a look to see if one of these would work for your application. Thank you!

Measurements of 82-020
Measurements of 82-020

Alternate view of 82-020
Alternate view of 82-020

Hole center dimensions for 82-030
Hole center dimensions for 82-030

Contractor from Utah
Thank you. Do both those handles work with the double lock mortise?
Casey
Casey from SWISCO
SWISCO
Expert

Yes, both options can be used with the 82-260 as long as the specifications match your original mortise lock.
