I need to fix my windows balance
Handy Person from Meridian, Idaho
Apr 30, 2020 12:00 pm
I need new channel balances and the hooks that go into the window frame.I can't find any stamped markings on the balances... but I measured them following instructions on your website (ignoring the plastic portions) and they're 26" long. The old ones are 5/8" inches wide measures across the open bottom of the balances. They measure about 1/2" on the backside... but if you measure looking at the spring and chord... it's 5/8". Could you please tell me what I need to order? Again... I need the hooks to attach them to the frame. Thanks!

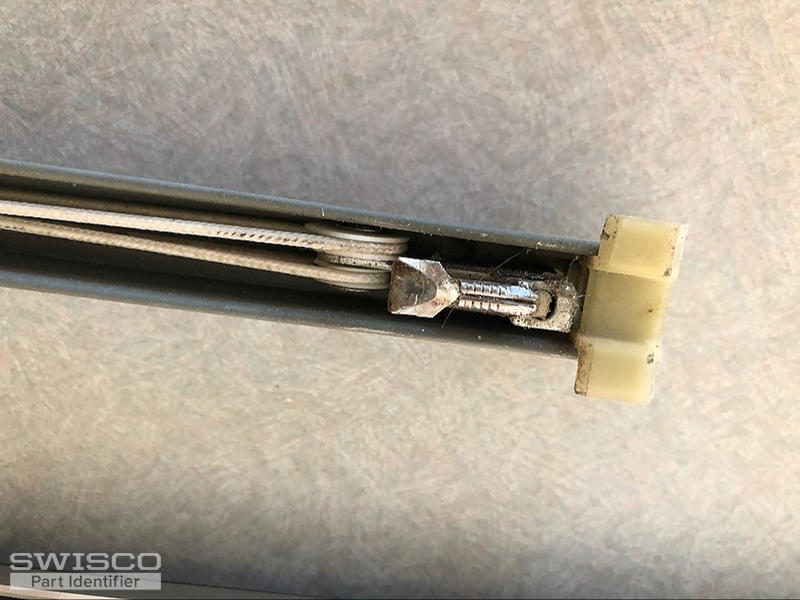

4 user uploaded images
2 Replies
Casey from SWISCO
May 4, 2020 12:13 pm
With this combination of attachments, you could have either an S380-26 or S385-26 channel balance. You'll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need to locate the stamp on your metal channel to choose the correct spring strength option. There is also a chart on the product page that explains how to choose your option based on the sash weight.
Thank you and let us know if you have any other questions or concerns.
Comparison of the S378, S380 and S385 balance shoes.
