I need to replace this in my windows.

A home owner from Pennsylvania, USA says:
I need to replace this in my windows.

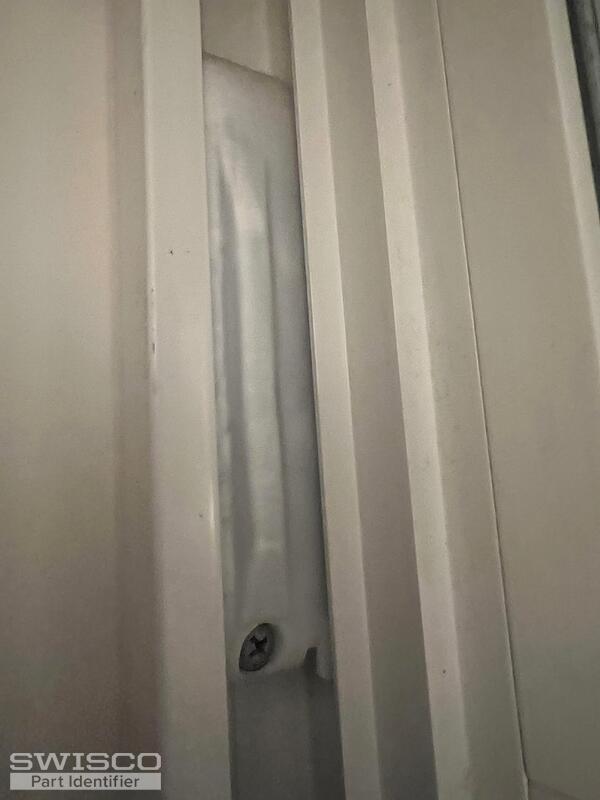

Thumbnail of the uploaded file named 3ABA3912-33A4-4AD0-9B3D-7C3664B0A312.jpeg

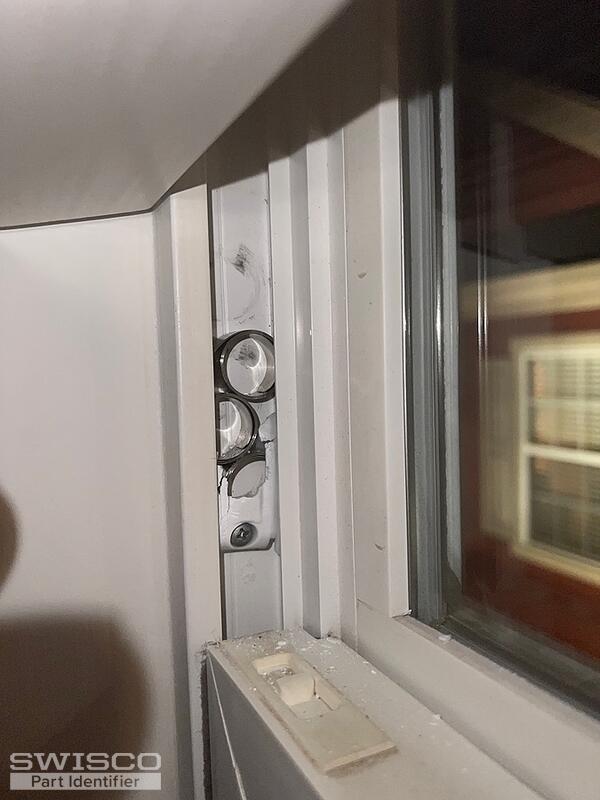

Thumbnail of the uploaded file named FFC9E91D-6E6F-4FAA-81FE-D6040F4D47A6.jpeg

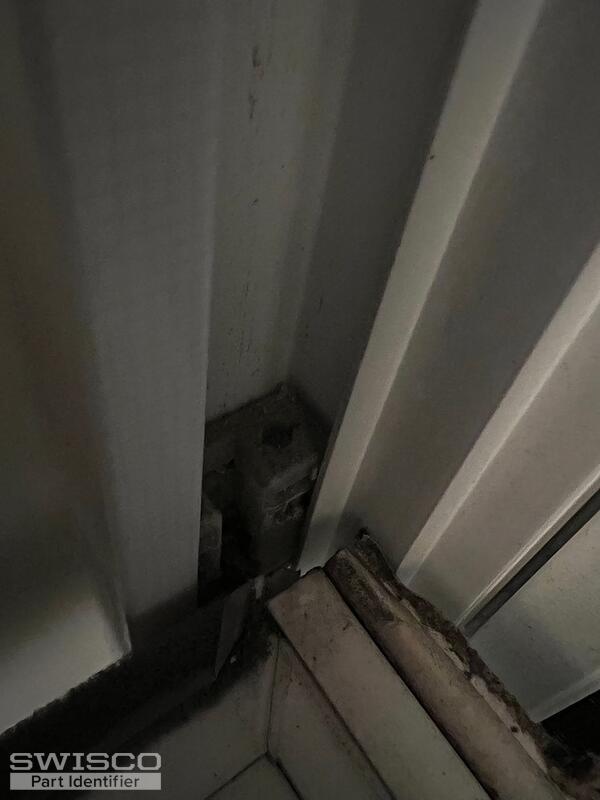

Thumbnail of the uploaded file named 0755365B-837D-4CE6-926B-867D16D83BC1.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

We'd be happy to help but we would need to see your coil springs, as well as the pivot shoe that they anchor to, removed from the window to compare to our inventory. We'll relate a few videos to assist you with the process. Thank you!

A home owner from Pennsylvania, USA says:
Here are the pictures you requested. I also need to replace the tilt latch. I added pictures of that too.

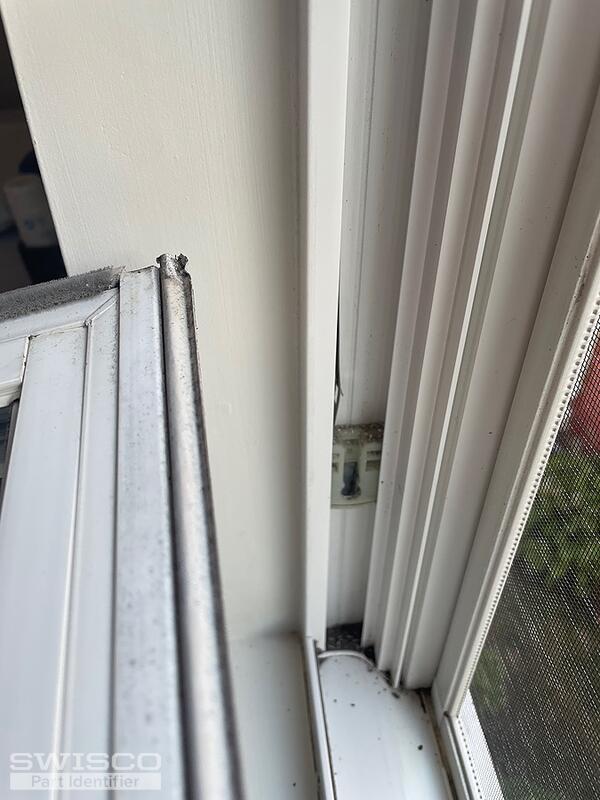

Thumbnail of the uploaded file named 8E9C870C-57E6-42A3-BE47-CEEE33CCB686.jpeg

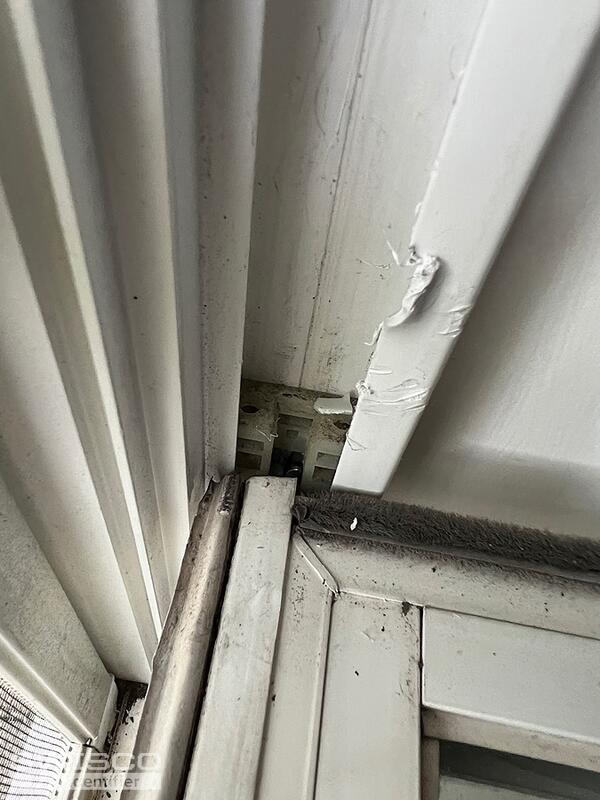

Thumbnail of the uploaded file named E9D721A7-2A4F-4B56-836F-7A8F148D7DE8.jpeg

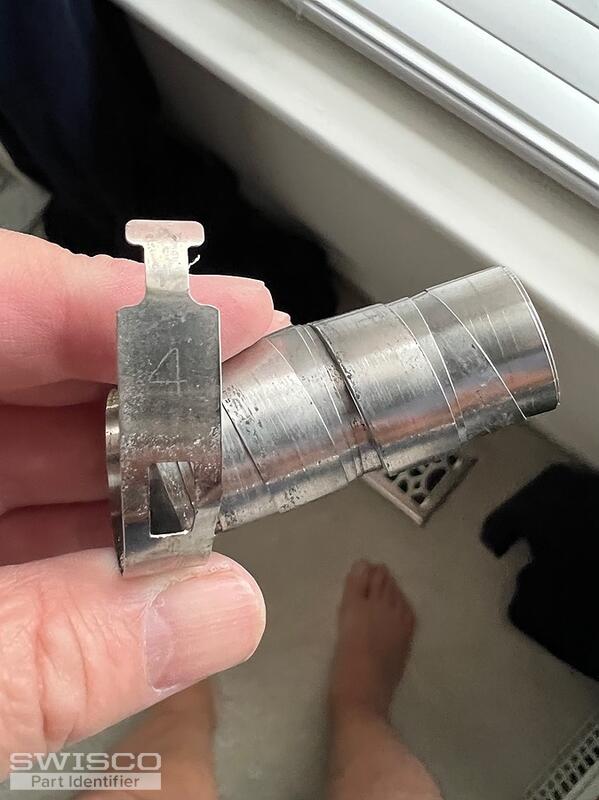

Thumbnail of the uploaded file named EECFCF86-E08E-4696-AAE9-6BF72846A626.jpeg

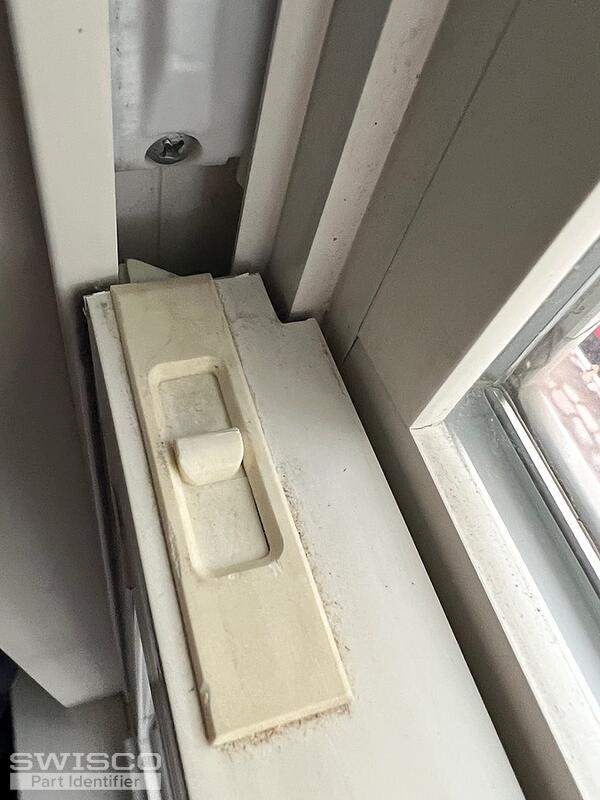

Thumbnail of the uploaded file named 6571110B-7872-47AC-AEB3-241779B0C04D.jpeg

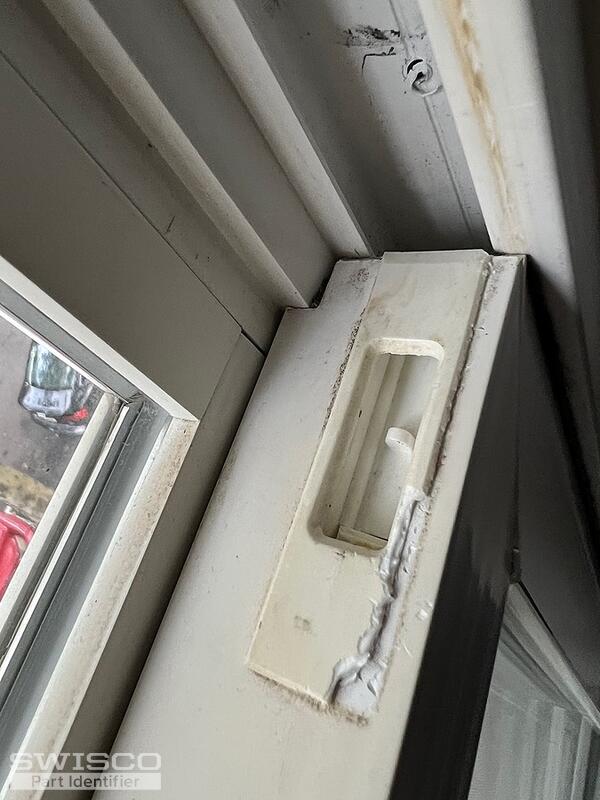

Thumbnail of the uploaded file named A368F4FA-2213-4E10-8B0D-1D60BC1A2A86.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Thanks for getting back to us. Take a look and compare the specifications of the 15-199 pivot shoe, which is compatible with either the 1/2" wide S160 or 3/8" wide S165 coil springs, to your parts.

As for your tilt latches, you can start by comparing the specifications shown on the 26-243 and 26-244 product pages to yours.
