Parts for American Craftsman windows

Quick Learner from South Carolina

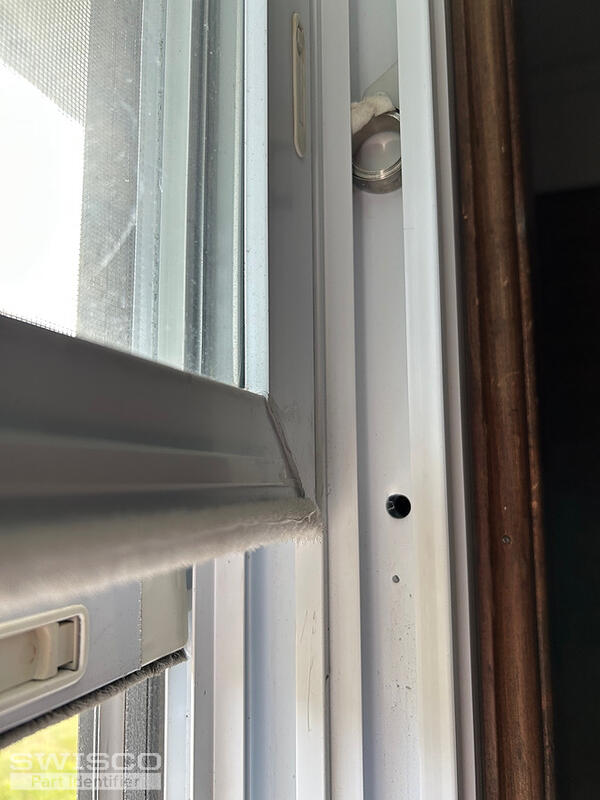

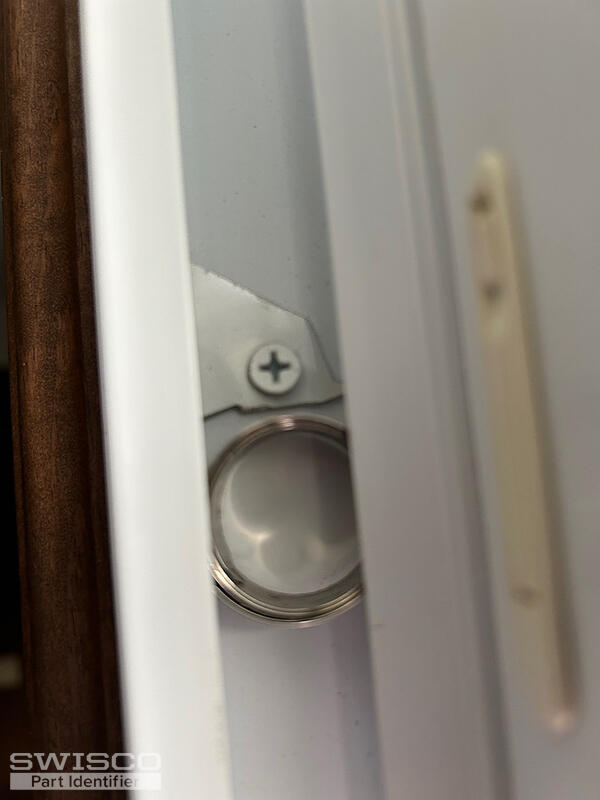

I need help with these replacement parts. I believe the windows are American Craftsman . The latches and sash springs are broken. Not sure how to remove the lower sash.


thanks
5 user uploaded images
4 Replies
Lauren
Lauren from SWISCO
SWISCO
Expert

Hello, thank you for posting,

Please review the style of the 15-087 pivot shoe that is compatible with the Series 180 coil springs along with the 16-024 mounting bracket. Compare all dimensions to confirm a good fit!

Detail of 15-087
Detail of 15-087

It appears your pivot shoe is marked with a (7), which would translate to the S180-07 coil spring. Together with the other side, the window sash should weigh 14 pounds.

Can you provide pictures of the latches in question for our review?

Quick Learner from South Carolina

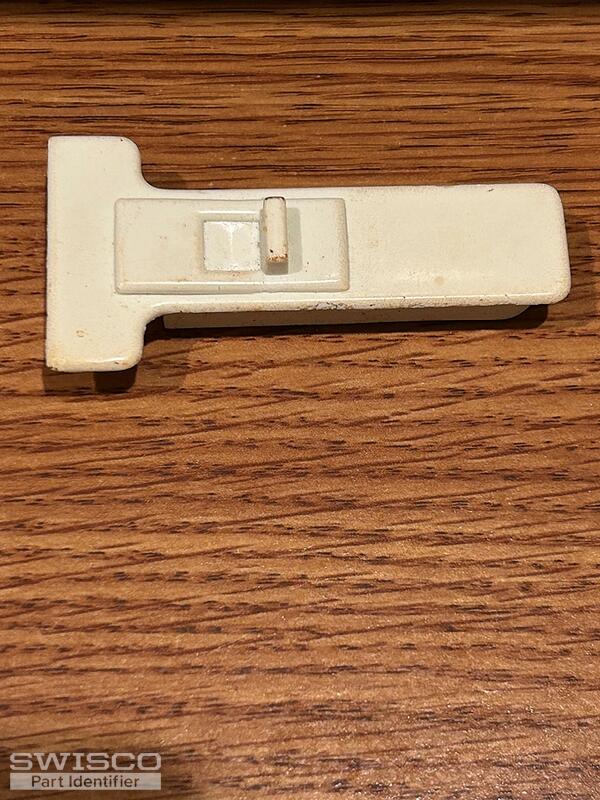

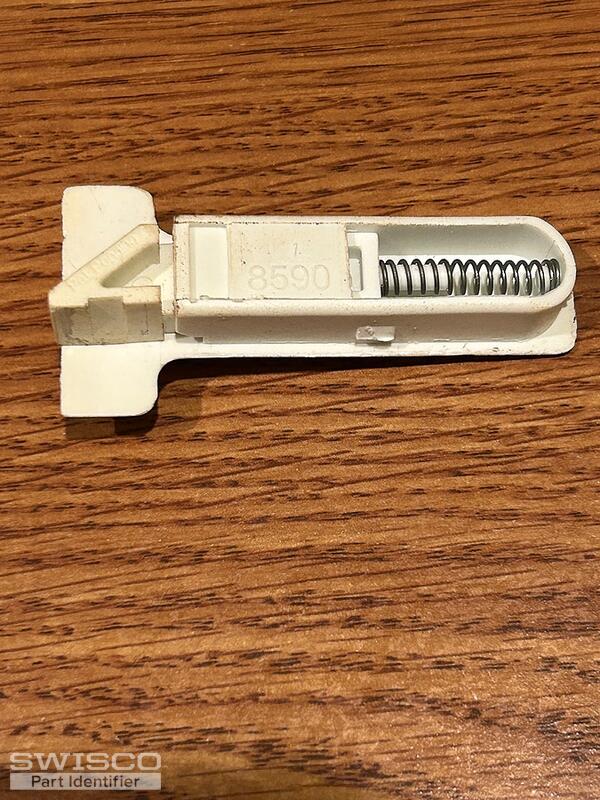

Here are the latch photos. I believe they are similar to 26-408 tilt latches.
2 user uploaded images
Lauren
Lauren from SWISCO
SWISCO
Expert

I agree that the 26-408 latch pair would be the correct replacements as long as the dimensions below match up to yours. Just let us know if you need anything else.

Alternate image for 26-408
Alternate image for 26-408

Alternate view of 26-408
Alternate view of 26-408

Alternate view of 26-408
Alternate view of 26-408
