I would like to send a sample...

A landlord from Bend, Oregon says:
September 10, 2010
I believe I have chosen the correct Channel but the image is too rough to verify the choice. Is it possible to send an example and have it returned with the order?

Here's what I have so far...
  • (6) S380-26 : Channel Balance (note: 2540 BSI label from the part)
  • (4) 62-105 : Heavy Duty Pointed Hook
  • (4) 16-002 : Take Out Clip
  • (10) 65-002 : Rivet, 3/32" x 39/64"
  • (1) 75-075 : Rivet Installation Tool
What I need is another end block and the replacement cord as well. I couldn't find an example of the cord or size description.

If you'd like I can either send the part or take pictures of the pieces I need and email back to you?

Thanks for any help you can provide as my local supplies have not been any help at all!

Jerry
Profile picture of Paul
Paul from SWISCO responded:
September 13, 2010
We prefer receiving images via email versus receiving actual samples in the mail. Please upload images to us by attaching them to a reply post.

What do you mean by "end block"?

Replacement cord is not available.
Profile picture of Paul
Paul from SWISCO responded:
September 15, 2010
The balances you pictured do look like the S380-26 with the option 2540.

We do not sell replacement balance cord because we do not recommend trying to fix the internal workings of the channel balance. When something in the internal of the channel balance breaks it is a sign that you need a new balance.

Are you referring to the balance shoe 15-005 as the end block?
A landlord from Bend, Oregon says:
September 15, 2010
I have enclosed a picture of the broken "end block"

Is there something that could be substituted for the string in the examples?

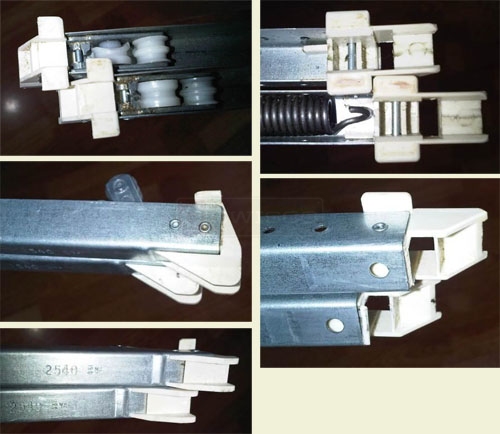

Customer image of their channel balance.
A landlord from Bend, Oregon says:
September 15, 2010
I was not referring to the balance shoe but the tackle block in the picture (upper left) of the pictures above. You can see by the example the plastic wheel is broken. I would guess that is an internal working and not recommended for replacement? Thanks for your help and I will place the order above based on your analysis.
Profile picture of Paul
Paul from SWISCO responded:
September 16, 2010
We would only recommend fixing broken shoes and tops of these channel balances, everything else is a sign that you need to replace the whole balance.
