IWC Pivit Window

A home owner from Monrovia, CA says:

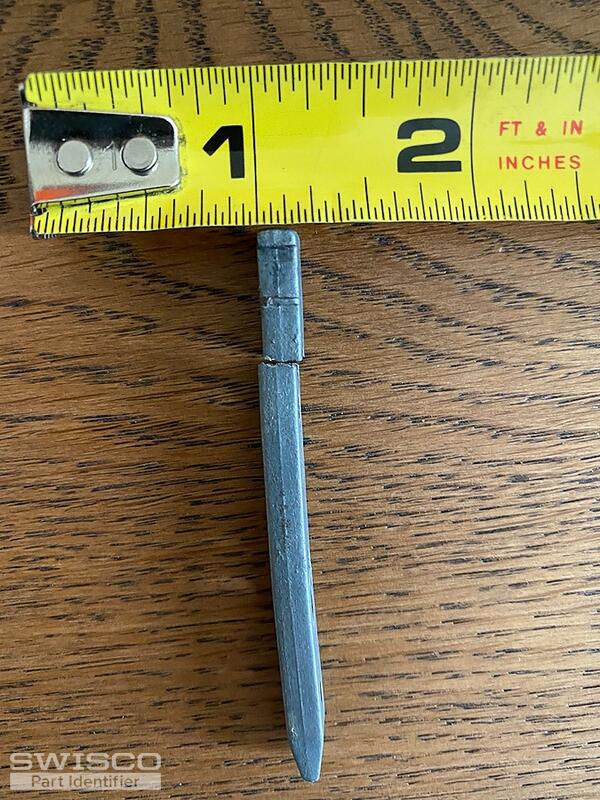

I am currently looking for these parts for an IWC pivit window that is 29 wide x 39 Long.
Thumbnail of the uploaded file named IMG-2983.jpg
Thumbnail of the uploaded file named IMG-2985.jpg
Thumbnail of the uploaded file named IMG-2986.jpg
Thumbnail of the uploaded file named IMG-2987.jpg
Thumbnail of the uploaded file named IMG-2988.jpg
Profile picture of Emily
Emily from SWISCO responded:

Hello there!

Based on what I see here, my recommendation would be the Series 795 channel balance and the 15-195B open-cam shoe that's sold separately. Once you receive your order, you will need to swap the 15-195 closed-cam shoe that comes with the balance by default with the 15-195B. The video below will detail exactly how to do so. Please note, the S795 uses a screw tab to install. If yours uses a hook instead, just let us know! We can still help but it would need to be a custom order.

As for the pivot bar, review the specifications of our 26-415 and 26-360 to see how they match up with your old one.

How to Install a T-Lock Shoe on a Channel Balance
How to Install a T-Lock Shoe on a Channel Balance
VIDEO
WATCH >
Removing Rusted Pivot Bars
Removing Rusted Pivot Bars
VIDEO
WATCH >
Anatomy of a tilt window
Anatomy of a tilt window
VIDEO
WATCH >
Modifying the Series 795 Balance
Modifying the Series 795 Balance
GUIDE
READ >
Classifying Channel Balance Fittings
Classifying Channel Balance Fittings
GUIDE
READ >
