Identified type of balance : SWISCO.com

Contractor from Daytona Beach FL

Apr 6, 2025 9:06 pm

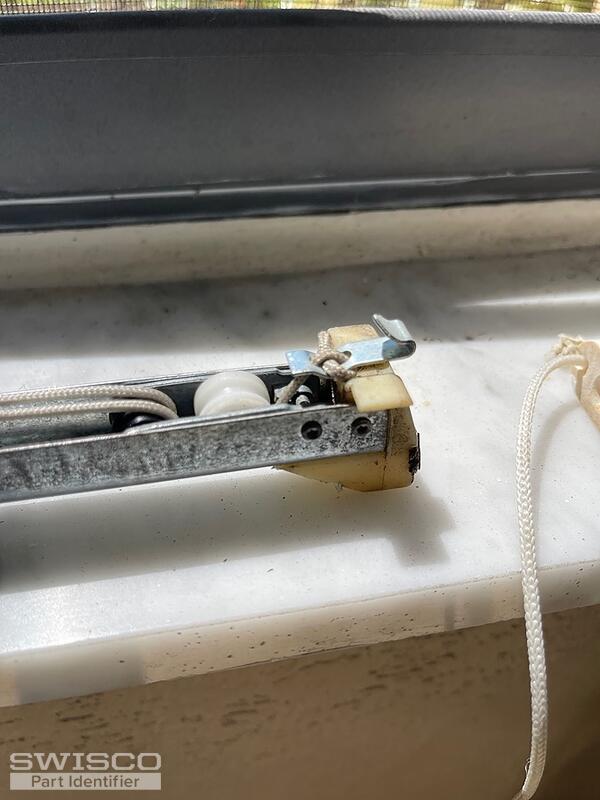

1/2 inch non tilt window balance 29 inches long

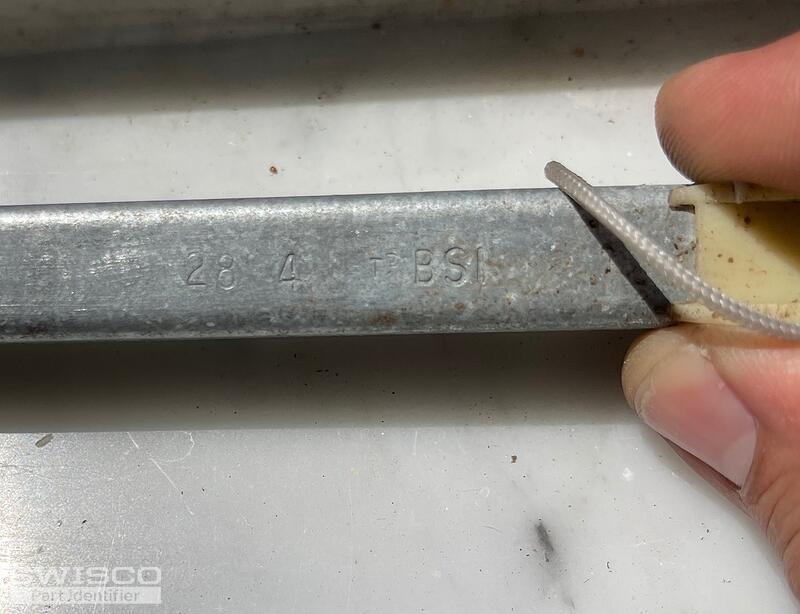

Engrave with number 28 4 t BSI

5 user uploaded images

6 Replies

Emily from SWISCO

Apr 9, 2025 3:34 pm

Hi there!

Thanks for reaching out to us. Take a look at the S380-29 and S385-29 channel balances with the 2840 stamp option. You'll have to measure the bottom shoe as shown below to see which one is the best match.

If you note any discrepancies, please let us know.

Comparison of the S378, S380 and S385 balance shoes.

Contractor from Daytona Beach FL

Apr 10, 2025 11:19 am

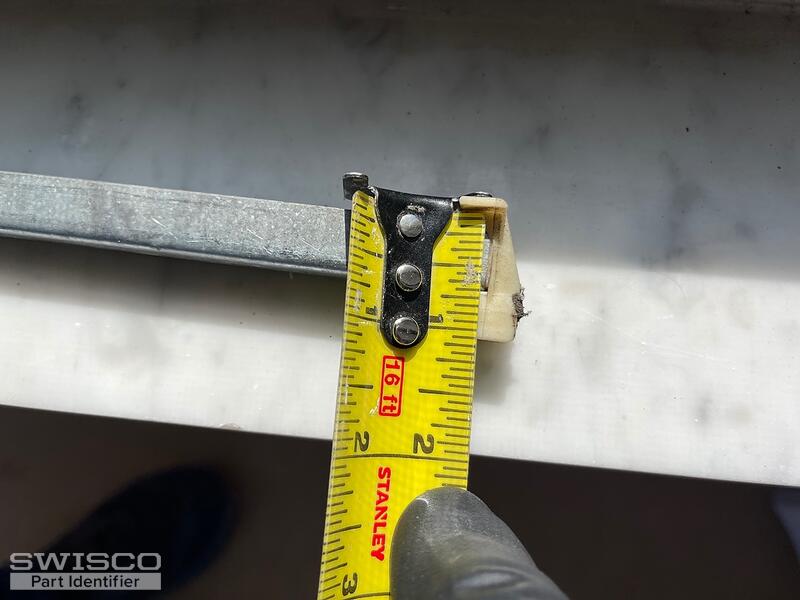

The bottom shoe measure is 1 3/32 So is the S385-29 balance
What top sash guide do i need for replace the broken ones ?
the top cap measure is 7/8

1 user uploaded image

Emily from SWISCO

Apr 10, 2025 12:38 pm

We'd be happy to help ID your top sash guide but the best match depends on the original. Can you show us photos of an undamaged top sash guide removed from the window? Written out dimensions would be helpful as well.

Contractor from Daytona Beach FL

Apr 10, 2025 1:52 pm

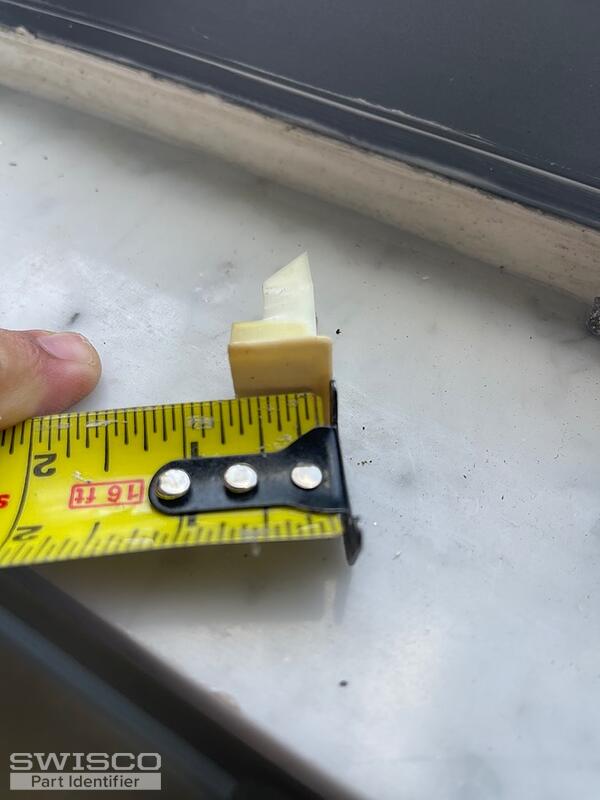

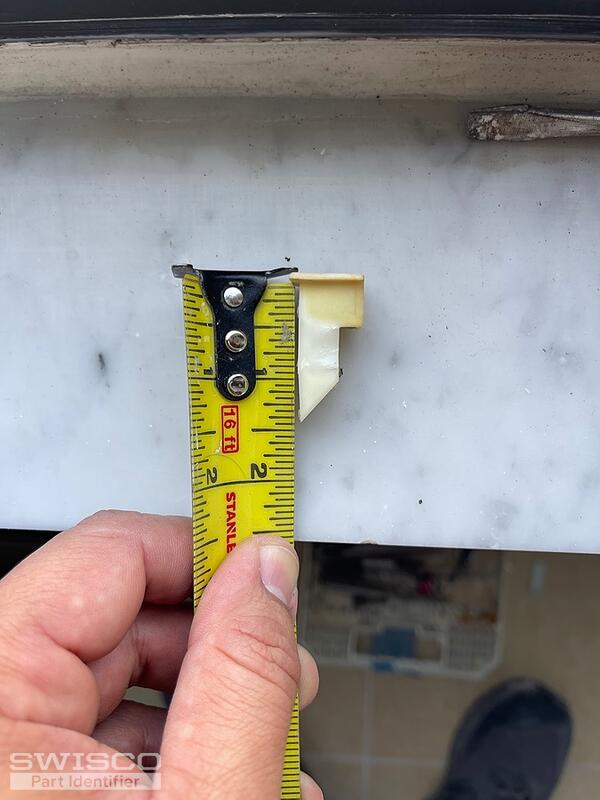

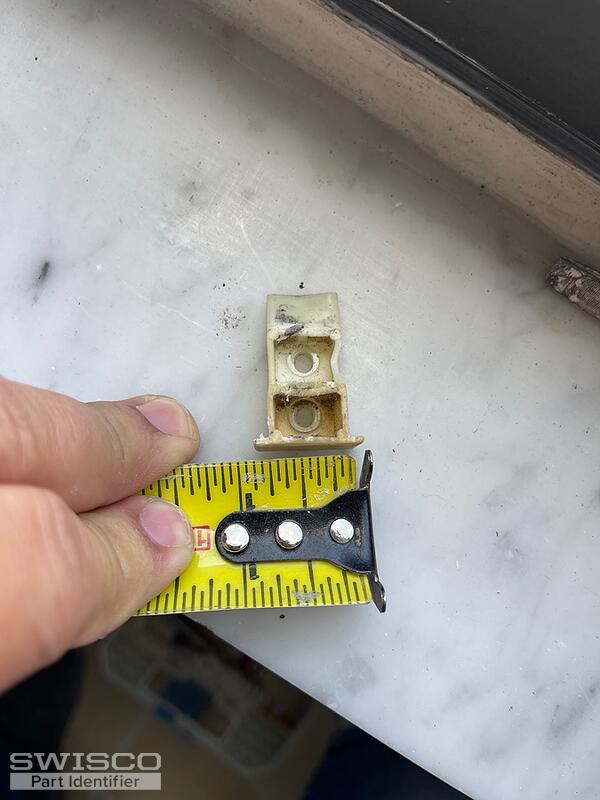

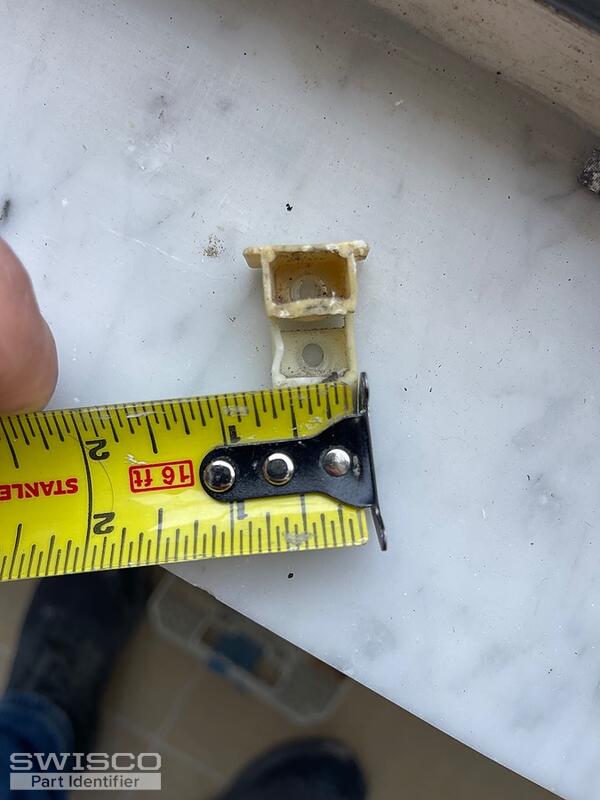

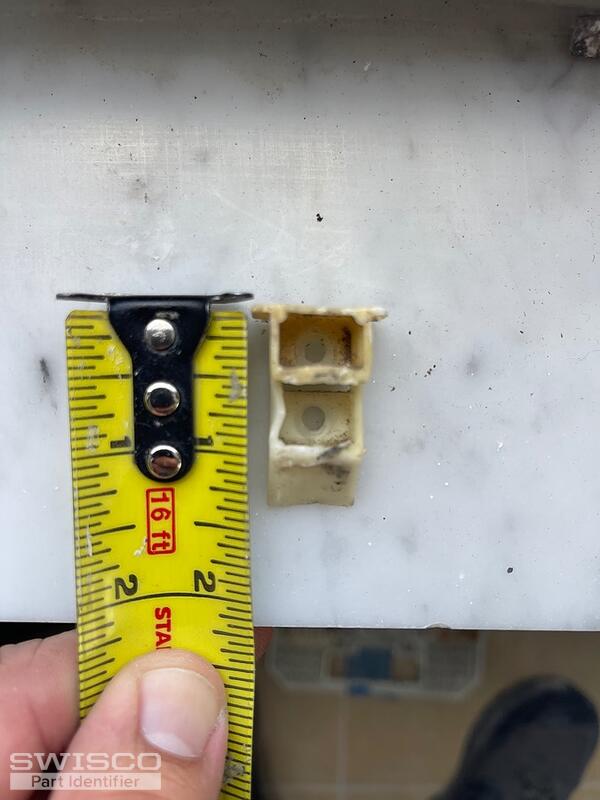

Ok So the measures i have for the Top sash guide are showing on the pictures i sent to this thread...
1 7/16 long side
5/8 Width
7/8 x 5/8 1/16 top cap
11/16 from top to the screw

5 user uploaded images

Emily from SWISCO

Apr 11, 2025 8:29 am

Thank you for the additional photos! Take a look at the 18-009. This resembles your old top sash guide. Review the specifications and see what you think.

Side view of 18-009

Detail of 18-009
